5.5KW 6KVA 10KVA Phase Converter Transformer 2 Phase To 3 Phase
5.5KW 6KVA 10KVA Phase Converter Transformer 2 Phase To 3 Phase
5.5KW 6KVA 10KVA Phase Converter Transformer 2 Phase To 3 Phase
5.5KW 6KVA 10KVA Phase Converter Transformer 2 Phase To 3 Phase
5.5KW 6KVA 10KVA Phase Converter Transformer 2 Phase To 3 Phase
5.5KW 6KVA 10KVA Phase Converter Transformer 2 Phase To 3 Phase
5.5KW 6KVA 10KVA Phase Converter Transformer 2 Phase To 3 Phase
5.5KW 6KVA 10KVA Phase Converter Transformer 2 Phase To 3 Phase
Specifications
Brand Name :
SHLEIPUSI Or Support OEM/ODM Service
Model Number :
DSG-5.5KVA Or Customized
Certification :
CE;ISO9001;UL
Place of Origin :
Shanghai
MOQ :
1
Price :
1 pc≤Qty≤5 pcs 595USD; 5 pcs＜Qty≤100 pcs 588USD; 100pcs＜Qty 585USD
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,Alipay,Wechat pay
Supply Ability :
1000000PCS
Delivery Time :
1 pc≤Qty≤5 pcs 1-7 working days; 5 pcs＜Qty≤100 pcs 7-14 working days; 100pcs＜Qty More than 14 working days
Packaging Details :
Non-fumigation plywood case ; Reference packing size: 47X67X76CM; Reference weight: 45KG
Product name :
5.5KVA 6KVA Single Phase To Three Phase Transformer
Place of origin :
Shanghai, PRC
Rated capacity :
5.5KVA Or Customized
Product model :
DSG-5.5KVA
Rated input voltage :
Single Phase 220V Or Customized
Rated output voltage :
Three Phase 380V 400V 415V Or Customized
Output precision :
±2%
Working temperature :
－15℃~＋45℃
Insulation resistance :
≥5MΩ
Description

5.5KVA 6KVA Single Phase To Three Phase Transformer

Contact Us

TEL: +86 15926315252 | MOBILE/WECHAT: +86 15926315252
EMAIL: daniel@shlepus.com | Whatsapp: +86 18979230829

Product Overview

Our 5.5KVA 6KVA Single Phase To Three Phase Transformer (Model DSG-5.5KVA) is a compact, high-performance power conversion device, engineered to reliably convert single-phase 220V grid power into stable pure sine wave three-phase 380V power (fully customizable voltage and capacity including 6KVA). Adopting advanced AC-DC-AC conversion technology, it differs from variable frequency drives for motor speed regulation, delivering clean power that closely matches ideal AC power with stable frequency, constant voltage, and zero waveform distortion. Built with a microprocessor core, MPWM mode, and IGBT modules, it integrates digital frequency division, instantaneous value feedback, and isolation transformer output for enhanced system stability. It perfectly solves three-phase power access challenges in remote areas or sites without three-phase grid coverage, making it ideal for hospitals, factory power systems, CNC machines, laser cutters, blenders, photovoltaic systems, EV charging stations, and precision equipment worldwide.

Key Features & Advantages

  • High-Precision Stable Output: Delivers ±2% output accuracy with no additional waveform distortion, producing pure sine wave power suitable for sensitive precision instruments and all types of industrial loads.
  • Efficient Cooling & Long Lifespan: Porous heat dissipation with cooling fans rapidly reduces operating temperature; high-purity winding material ensures high conductivity and low temperature rise, paired with a noise-free silicon steel core for high magnetic flux and energy savings.
  • Comprehensive Safety Protection: F-class insulation, high-insulation materials withstand 2500V voltage tests, with a safety trip lock, short-circuit, overcurrent, and overheat protection; high-quality nylon frame and insulated terminals ensure maximum safety.

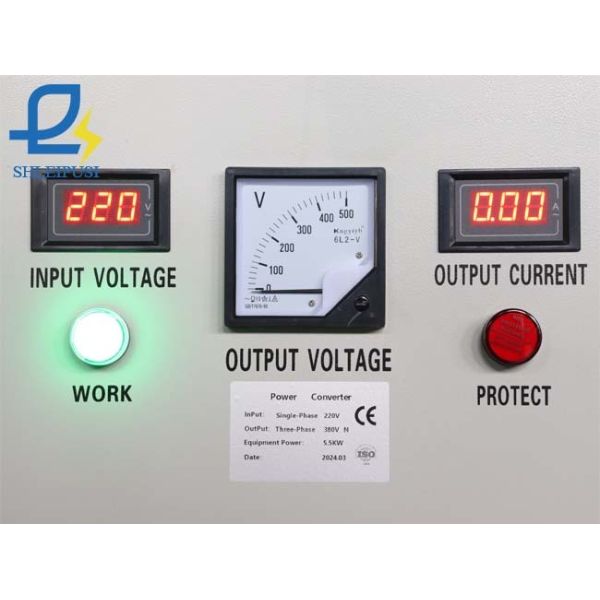

  • Smart Monitoring & User-Friendly Design: Digital display provides clear real-time working status tracking, with input/output status indicators; brake-equipped universal wheels enable flexible mobility, and IP23 metallic enclosure with customizable RAL 7035 color ensures long-term durability.
  • High-Efficiency Performance: ≥90% working efficiency, <55dB ultra-low noise, stable operation in -15℃ to +45℃ environments, with <60K temperature rise for continuous duty.

Why Choose Us

As a professional electrical equipment manufacturer from Shanghai, China, we offer factory-direct pricing with no middleman markup for global clients. We provide full OEM/ODM services, including custom capacity (5.5KVA/6KVA and more), voltage, appearance, branding, and packaging, plus free professional product photography. Every unit undergoes strict full-stage quality inspection from raw material intake to final assembly, with 100% pre-shipment testing to ensure zero defects. We support flexible global shipping via sea, air, land, express, and railway, covering all mainstream international trade terms. Backed by lifetime free technical guidance, video installation support, and on-site engineer services, we boast a monthly capacity of 10,000 units for small-power products and 2,000 units for large-power models, with a minimum order quantity of just 1 set.

Technical Specifications

Parameter Details
Product Name 5.5KVA 6KVA Single Phase To Three Phase Transformer
Brand SHANGHAI LEPUS ELECTRICAL EQUIPMENT CO., LTD. / Customized
Place of Origin Shanghai, China
Model DSG-5.5KVA (Customizable for 6KVA)
Rated Capacity 5.5KVA (6KVA Customizable)
Rated Input Voltage Single Phase 220V (Customizable)
Rated Output Voltage Three Phase 380V (Customizable)
Working Frequency 50/60Hz
Output Precision ±2%
Insulation Class F
Working Temperature -15℃ ~ +45℃
Noise ＜55dB
Protection Class IP23
Cooling Method Dry type air cooling
Working Efficiency ≥90%

5.5KW 6KVA 10KVA Phase Converter Transformer 2 Phase To 3 Phase

5.5KW 6KVA 10KVA Phase Converter Transformer 2 Phase To 3 Phase

Frequently Asked Questions (10 Items)

  1. How long is the lead time?
    3-7 working days for standard 5.5KVA/6KVA products; 10-30 days for custom orders depending on quantity and requirements.
  2. How do you control product quality?
    We conduct professional quality inspection at every stage from raw material intake to manufacturing, and only ship products meeting all quality standards.
  3. What are your payment terms?
    30% deposit for standard products, 50% advance for custom products, with the full balance paid before shipment.
  4. Do you provide technical support for product installation?
    Yes, our professional team provides full installation guidance via video call, telephone, or on-site engineer service.
  5. What packaging do you use for your products?
    Large products use heavy-duty wooden cases, small products use high-strength cartons, with custom packaging available.
  6. Can you put our custom logo on the product?
    Yes, we accept full OEM and ODM services, with custom logo placement on products, manuals, and packaging for qualified orders.
  7. Where is your major market?
    Our products are sold globally, covering Central Asia, East Asia, South Asia, Africa, South America, and North America.
  8. What is your production capacity?
    Up to 10,000 units monthly for small-power products, and 2,000 units monthly for larger-power models.
  9. What is your minimum order quantity (MOQ)?
    Our minimum order quantity is 1 set, supporting both sample testing and bulk purchase.
  10. Do you support customized capacity beyond 5.5KVA and 6KVA?
    Yes, we fully support custom capacity, voltage, and enclosure design to fit your specific application needs.
