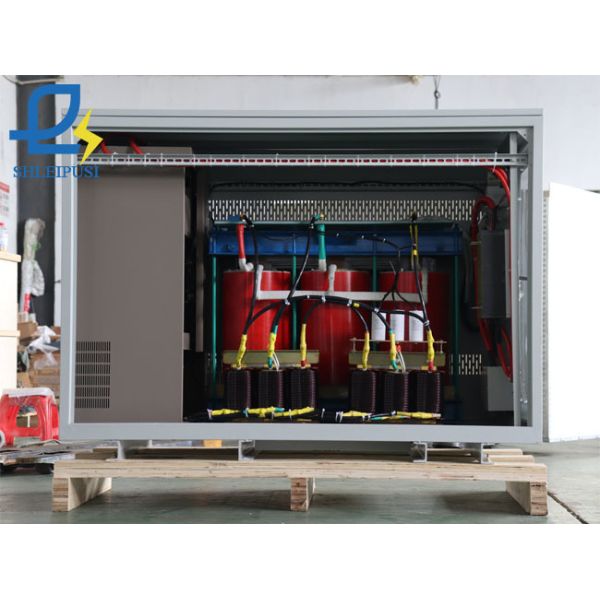

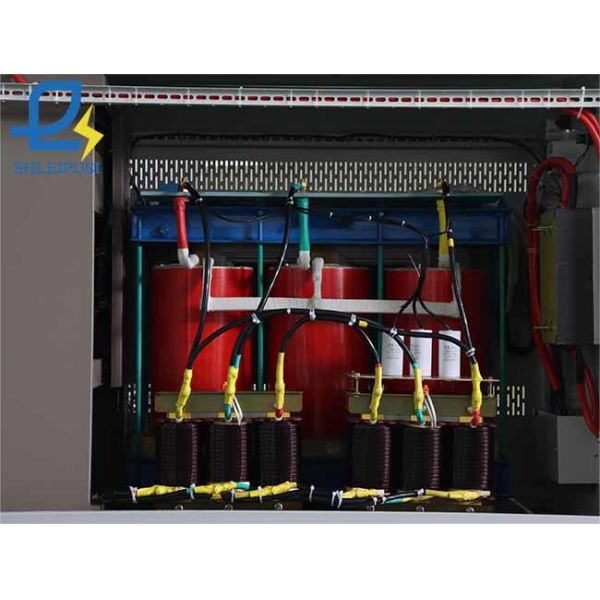

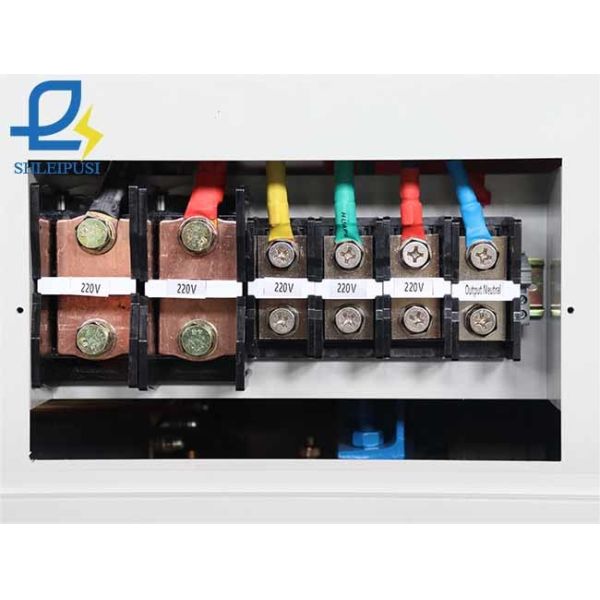

High Precision 2 Phase To 3 Phase Voltage Transformer 150KW 180KVA
High Precision 2 Phase To 3 Phase Voltage Transformer 150KW 180KVA
High Precision 2 Phase To 3 Phase Voltage Transformer 150KW 180KVA
High Precision 2 Phase To 3 Phase Voltage Transformer 150KW 180KVA
High Precision 2 Phase To 3 Phase Voltage Transformer 150KW 180KVA
High Precision 2 Phase To 3 Phase Voltage Transformer 150KW 180KVA
High Precision 2 Phase To 3 Phase Voltage Transformer 150KW 180KVA
High Precision 2 Phase To 3 Phase Voltage Transformer 150KW 180KVA
Specifications
Brand Name :
SHLEIPUSI Or Support OEM/ODM Service
Model Number :
DSG-180KVA Or Customized
Certification :
CE;ISO9001;UL
Place of Origin :
Shanghai
MOQ :
1
Price :
1 pc≤Qty≤5 pcs 7258USD; 5 pcs＜Qty≤100 pcs 7100USD; 100pcs＜Qty 7058USD
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,Alipay,Wechat pay
Supply Ability :
1000000PCS
Delivery Time :
1 pc≤Qty≤5 pcs 1-7 working days; 5 pcs＜Qty≤100 pcs 7-14 working days; 100pcs＜Qty More than 14 working days
Packaging Details :
Non-fumigation plywood case ; Reference packing size: 149X79.5X125.5CM; Reference weight: 692KG
Product name :
180KVA 2 Phase To 3 Phase 220V Voltage Transformer
Place of origin :
Shanghai, PRC
Rated capacity :
180KVA Or Customized
Product model :
DSG-180KVA Or Customized
Rated input voltage :
Single Phase 220V Or Customized
Rated output voltage :
Three Phase 220V Or Customized
Output precision :
±2%
Working temperature :
－15℃~＋45℃
Insulation resistance :
≥5MΩ
Description

Contact Us

TEL: +86 15926315252 | MOBILE/WECHAT: +86 15926315252
EMAIL: daniel@shlepus.com | Whatsapp: +86 18979230829

180KVA 2 Phase To 3 Phase 220V Voltage Transformer

Product Overview

Our 180KVA 2 Phase To 3 Phase 220V Voltage Transformer (Model DSG-180KVA) is a heavy-duty industrial-grade power conversion device, engineered to reliably convert single-phase 220V grid power into stable pure sine wave three-phase 220V power (fully customizable voltage). Adopting advanced AC-DC-AC conversion technology, it differs from variable frequency drives for motor speed regulation, delivering clean power that closely matches ideal AC power with stable frequency, constant voltage, and zero waveform distortion. Built with a microprocessor core, MPWM mode, and GBT modules, it integrates digital frequency division, instantaneous value feedback, and isolation transformer output for enhanced system stability. It perfectly solves high-power three-phase power access challenges in remote areas or sites without three-phase grid coverage, making it ideal for hospitals, large factory power systems, CNC machines, laser cutters, photovoltaic systems, EV charging stations, and heavy industrial equipment worldwide.

Key Features & Advantages

  • High-Precision Stable Output: Delivers ±2% output accuracy with no additional waveform distortion, producing pure sine wave power suitable for heavy industrial loads and sensitive precision instruments.
  • Efficient Cooling & Long Lifespan: Porous heat dissipation with cooling fans rapidly reduces operating temperature; high-purity winding material ensures high conductivity and low temperature rise, paired with a noise-free silicon steel core for high magnetic flux and energy savings.
  • Comprehensive Safety Protection: F-class insulation, high-insulation materials withstand 2500V voltage tests, with a safety trip lock, short-circuit, overcurrent, and overheat protection; high-quality nylon frame and insulated terminals ensure maximum operational safety.
  • Smart Monitoring & User-Friendly Design: Digital display provides clear real-time working status tracking, with input/output indicators; brake-equipped universal wheels enable flexible mobility, and IP23 metallic enclosure with customizable RAL 7035 color ensures long-term durability.
  • High-Efficiency Performance: ≥90% working efficiency, <55dB ultra-low noise, stable operation in -15℃ to +45℃ environments, with <60K temperature rise for continuous heavy-duty operation.

Why Choose Us

As a professional electrical equipment manufacturer from Shanghai, China, we offer factory-direct pricing with no middleman markup for global clients. We provide full OEM/ODM services, including custom voltage, capacity, appearance, branding, and packaging, plus free professional product photography. Every unit undergoes strict full-stage quality inspection from raw material intake to final assembly, with 100% pre-shipment testing to ensure zero defects. We support flexible global shipping via sea, air, land, express, and railway, covering all mainstream international trade terms. Backed by lifetime free technical guidance, video installation support, and on-site engineer services, we boast a monthly capacity of 10,000 units for small-power products and 2,000 units for large-power models, with a minimum order quantity of just 1 set.

Technical Specifications

ParameterDetails
Product Name180KVA 2 Phase To 3 Phase 220V Voltage Transformer
BrandSHANGHAI LEPUS ELECTRICAL EQUIPMENT CO., LTD. / Customized
Place of OriginShanghai, China
ModelDSG-180KVA
Rated Capacity180KVA (Customizable)
Rated Input VoltageSingle Phase 220V (Customizable)
Rated Output VoltageThree Phase 220V (Customizable)
Working Frequency50/60Hz
Output Precision±2%
Insulation ClassF
Working Temperature-15℃ ~ +45℃
Noise＜55dB
Protection ClassIP23
Cooling MethodDry type air cooling
Working Efficiency≥90%

High Precision 2 Phase To 3 Phase Voltage Transformer 150KW 180KVA
High Precision 2 Phase To 3 Phase Voltage Transformer 150KW 180KVA
High Precision 2 Phase To 3 Phase Voltage Transformer 150KW 180KVA

Frequently Asked Questions (10 Items)

  1. How long is the lead time?
    3-7 working days for standard 180KVA products; 10-30 days for custom orders depending on quantity and requirements.
  2. How do you control product quality?
    We conduct professional quality inspection at every stage from raw material intake to manufacturing, and only ship products meeting all quality standards.
  3. What are your payment terms?
    30% deposit for standard products, 50% advance for custom products, with the full balance paid before shipment.
  4. Do you provide technical support for product installation?
    Yes, our professional team provides full installation guidance via video call, telephone, or on-site engineer service.
  5. What packaging do you use for your products?
    Large 180KVA units use heavy-duty wooden cases, small products use high-strength cartons, with custom packaging available.
  6. Can you put our custom logo on the product?
    Yes, we accept full OEM and ODM services, with custom logo placement on products, manuals, and packaging for qualified orders.
  7. Where is your major market?
    Our products are sold globally, covering Central Asia, East Asia, South Asia, Africa, South America, and North America.
  8. What is your production capacity?
    Up to 10,000 units monthly for small-power products, and 2,000 units monthly for large-power models like this 180KVA transformer.
  9. What is your minimum order quantity (MOQ)?
    Our minimum order quantity is 1 set, supporting both sample testing and bulk purchase.
  10. Can we customize the input and output voltage of the transformer?
    Yes, we fully support custom voltage parameters, capacity, and enclosure design to fit your specific heavy industrial application needs.
