20KW 20KVA 2 To 3 Phase Converter Single Phase To Three Phase Transformer
20KW 20KVA 2 To 3 Phase Converter Single Phase To Three Phase Transformer
20KW 20KVA 2 To 3 Phase Converter Single Phase To Three Phase Transformer
20KW 20KVA 2 To 3 Phase Converter Single Phase To Three Phase Transformer
20KW 20KVA 2 To 3 Phase Converter Single Phase To Three Phase Transformer
20KW 20KVA 2 To 3 Phase Converter Single Phase To Three Phase Transformer
20KW 20KVA 2 To 3 Phase Converter Single Phase To Three Phase Transformer
20KW 20KVA 2 To 3 Phase Converter Single Phase To Three Phase Transformer
Specifications
Brand Name :
SHLEIPUSI Or Support OEM/ODM Service
Model Number :
DSG-20KW Or Customized
Certification :
CE;ISO9001;UL
Place of Origin :
Shanghai
MOQ :
1
Price :
1 pc≤Qty≤5 pcs 1280USD; 5 pcs＜Qty≤100 pcs 1180USD; 100pcs＜Qty 1159USD
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,Alipay,Wechat pay
Supply Ability :
1000000PCS
Delivery Time :
1 pc≤Qty≤5 pcs 1-7 working days; 5 pcs＜Qty≤100 pcs 7-14 working days; 100pcs＜Qty More than 14 working days
Packaging Details :
Non-fumigation plywood case ; Reference packing size: 47X67X76 CM; Reference weight: 64KG
Product name :
2 Phase To 3 Phase Voltage Transformer
Place of origin :
Shanghai, PRC
Rated capacity :
20KW Or Customized
Product model :
DSG-20KW Or Customized
Rated input voltage :
Single Phase 200-240V Or Customized
Rated output voltage :
Three Phase 220V 380V 400V 415V Or Customized
Output precision :
±2%
Working temperature :
－15℃~＋45℃
Insulation resistance :
≥5MΩ
Description

2 Phase To 3 Phase Voltage Transformer

Contact Us

TEL: +86 15926315252 | MOBILE/WECHAT: +86 15926315252
EMAIL: daniel@shlepus.com | Whatsapp: +86 18979230829

Product Overview

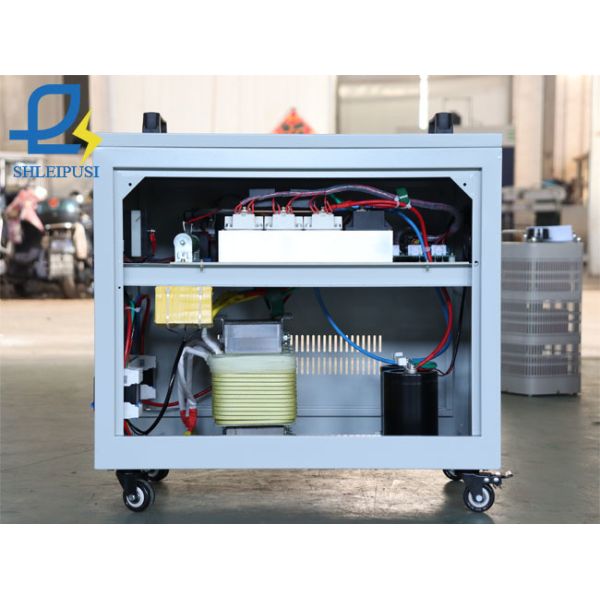

Our 2 Phase To 3 Phase Voltage Transformer (Model DSG-20KVA) is a professional AC-DC-AC conversion power supply, engineered to convert single-phase 220V grid power into stable, pure sine wave three-phase 380V power for global industrial and commercial applications. Unlike variable frequency drives for motor speed control, this DSG series transformer uses a microprocessor core, MPWM technology, and IGBT modules, with digital frequency division, instantaneous value feedback, and isolated transformer output for enhanced stability. It perfectly solves power supply needs in remote areas or sites without three-phase grid access, with strong load adaptability, full protection functions, and wide compatibility for hospitals, factory power systems, CNC machines, laser cutters, blenders, photovoltaic systems, EV charging stations, and precision equipment worldwide.

Key Features & Advantages

  • High-Precision Stable Output: Delivers ±2% output accuracy with no additional waveform distortion, producing pure sine wave power that closely matches ideal AC power, suitable for all types of inductive and resistive loads.
  • Efficient Cooling & Long Lifespan: Porous heat dissipation with cooling fans rapidly reduces operating temperature; new low-noise silicon steel core offers high magnetic flux and energy savings, while high-purity winding material ensures high conductivity and low temperature rise.
  • Comprehensive Safety Protection: F-class insulation, high-insulation materials withstand 2500V voltage tests, with a safety trip lock, short-circuit, overload, and overheat protection, plus high-insulation terminals and nylon frame for maximum safety.
  • Smart Monitoring & User-Friendly Design: Digital display provides clear real-time working status tracking, with input/output status indicators, brake-equipped universal wheels for flexible mobility, and IP23 protection metal enclosure with customizable RAL 7035 color.
  • High-Efficiency Performance: ≥90% working efficiency, <55dB low noise, stable operation in -15℃ to +45℃ environments, with <60K temperature rise for long-term continuous use.

Why Choose Us

As a professional electrical equipment manufacturer from Shanghai, China, we offer factory-direct pricing with no middleman markup for global clients. We provide full OEM/ODM services, including custom parameters, appearance, LOGO, and packaging, plus free professional product photography and video producing. Every unit undergoes strict full-stage quality inspection from raw material intake to final assembly, with 100% pre-shipment testing to ensure zero defects. We support flexible global shipping via sea, air, land, express, and railway, covering all mainstream international trade terms. Backed by lifetime free technical guidance, video installation support, and on-site engineer services, we boast a monthly capacity of 10,000 units for small-power products and 2,000 units for large-power models, with a minimum order quantity of just 1 set.

Technical Specifications

表格
Parameter Details
Product Name 2 Phase To 3 Phase Voltage Transformer
Brand SHANGHAI LEPUS ELECTRICAL EQUIPMENT CO., LTD. / Customized
Place of Origin Shanghai, China
Model DSG-20KVA
Rated Capacity 20KVA
Rated Input Voltage Single Phase 220VAC
Max Input Current 90A
Rated Output Voltage Three Phase 380VAC (Line to Line)
Max Output Current 30A
Working Frequency 50/60Hz
Output Precision ±2%
Insulation Class F
Working Temperature -15℃ ~ +45℃
Insulation Resistance ≥5MΩ
Noise ＜55dB
Protection Class IP23
Cooling Method Dry type air cooling
Working Efficiency ≥90%

20KW 20KVA 2 To 3 Phase Converter Single Phase To Three Phase Transformer

20KW 20KVA 2 To 3 Phase Converter Single Phase To Three Phase Transformer

Frequently Asked Questions

  1. How long is the lead time?
    3-7 working days for standard products; 10-30 days for custom orders depending on quantity and requirements.
  2. How do you control product quality?
    We conduct professional quality inspection at every stage from raw material intake to manufacturing, and only ship products that meet all quality standards.
  3. What are your payment terms?
    30% deposit for standard products, 50% advance for custom products, with the balance paid before shipment.
  4. Do you provide technical support for product installation?
    Yes, our professional technical team provides full installation guidance via video call, telephone, or on-site engineer service.
  5. What packaging do you use for your products?
    Large products are packed in heavy-duty wooden cases, and small products use high-strength cartons, with custom packaging available.
  6. Can you put our custom logo on the product?
    Yes, we accept full OEM and ODM services, with custom logo placement on products, manuals, and packaging for qualified orders.
  7. Where is your major market?
    Our products are sold globally, covering Central Asia, East Asia, South Asia, Africa, South America, and North America.
  8. What is your production capacity?
    Up to 10,000 units monthly for small-power products, and 2,000 units monthly for larger-power models.
  9. What is your minimum order quantity (MOQ)?
    Our minimum order quantity is 1 set, supporting both sample testing and bulk purchase.
  10. What is your warranty policy?
    We provide free replacement of components damaged by quality issues during the warranty period, plus lifetime free telephone technical guidance.
