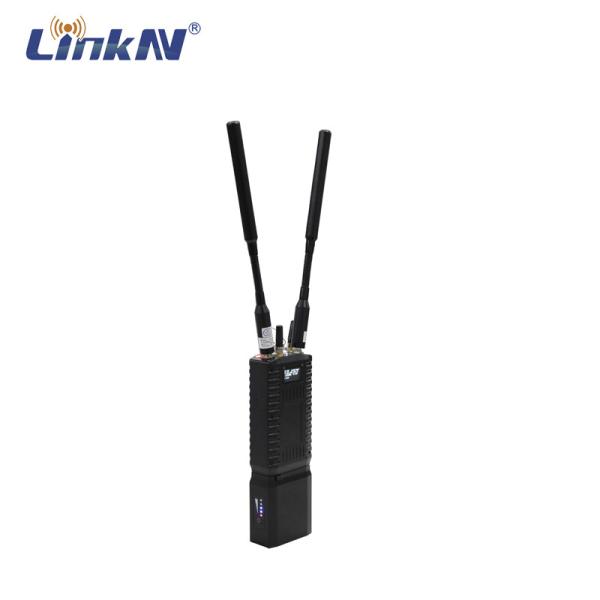

IP Mesh Radio MIMO IP66 AES256 350MHz-4GHz Customizable
IP Mesh Radio MIMO IP66 AES256 350MHz-4GHz Customizable
Specifications
Encryption :
AES256
Data Rate :
Up to 80Mbps
Supply Ability :
1000pcs/Month
Application :
Marine,Tunnel,Infrastructure
Model Number :
MANET2201-W
Brand Name :
OEM / LinkAV
Certification :
CE
Place of Origin :
Shenzhen China
MOQ :
2
Price :
USD, RMB
Delivery Time :
7 working days
Packaging Details :
Brown Carton
Battery :
21V
Payment Terms :
T/T,PayPal,L/C,D/A,Western Union,D/P,
Link Latency :
10ms
Frequency :
350MHz-4GHz customizable
Description

IP Mesh Radio MIMO IP66 AES256 350MHz-4GHz Customizable

Introduction
IP Mesh Radio (MANET), MIMO, IP66, removable battery with DC charging port, with micro HDMI input, support intercom, 2.4/5.8G WiFi and GPS, up to 80Mbps.

The MANET2201-W is a wireless IP mesh node, it can transmit audio, video and IP data in real time, and its multi-hop relay can increase the wireless transmission distance. Its self-organizing network automatically selects the path, and the network mode is flexible. It has strong anti-blocking and anti-interference performance, and is very suitable for mobile communication under complex environment. It can be applied to Public Security, Fire Control, Civil Air Defense, EOD Robot and UGV to establish real-time and rapid communication and unified coordination and command.



Features
■ Infrastructure-less, self configuring and self healing
■ Frequency 1400MHz-1480MHz (350MHz-4GHz customizable)
■ Data rate up to 80Mbps
■ Full transparent IP data transmission
■ Supports two-way intercom
■ HDMI input as optional
■ Supports 2.4G/5.8G WIFI connection
■ Supports AES256 encryption
■ Battery endurance up to 4-5 hours
■ Rugged IP65 housing
■ Low system latency

Specification

Transmission Characteristics
Frequency 350MHz-4GHz customizable
Default Frequencies 1400MHz-1480MHz
Channel Bandwidth 2M/5M/10M/20MHz/40MHz
WIFI 2.4G/5.8G WIFI (2x100mw)
Modulation Type

DSSS/CCK BPSK/QPSK OFDM

BPSK/QPSK/16-QAM/64-QAM
Digital Sensitivity 96dBm@5MHz BPSK
Transmission Rate Up to 80Mbps
Data Characteristics
RF Interface TNC F*2, SMA F*2
LAN Interface 9-Pin Lemo connector
Intercom Interface 7-Pin Lemo connector
HDMI Interface(Optional) Micro HDMI x1
Signal Indicator 1x LED dual color (Green/Red)
Encryption 256-bit AES (user-defined password)
Electrical Characteristics
Working Voltage DC 16.8V
Battery 18.5V/3.5Ah
Physical Characteristics
Weight ≤1.2kg (w/ battery)
Dimensions 265*90*40mm (w/battery)
IP Rating IP65/IP66
Working Humidity 5%-95% (Non-Condensing)




Panel Description


① Signal Indicator

Indicator Status Signal Strength
Green still Link is solid
Red/Green flicker intermittently Link is going to break off
Red still Can’t establish link
Red flickers Link is not stable
SNR Indicator Color Flicker Frequency Topology Color Topology Value
0 Red N/A Green 0
1-12 Red flickers 350ms Green 1-12
13-25 Red/Green flicker 350ms Green 13-25
26-35 Green flickers 350ms Green 26-35
36-70 Green still N/A Green 36-70
＞70 Red flickers 120ms Green ＞70


② Mic Input Interface
③ LAN Input Interface
④ WIFI Antenna Interface
⑤ Mesh Antenna Interface
⑥ GPS/BD Antenna Interface
⑦ Power Push Button
⑧ Mesh Antenna Interface

Topology Diagram


■ Chain Type


■ Star Type

■ Mesh Type

■ Random Type

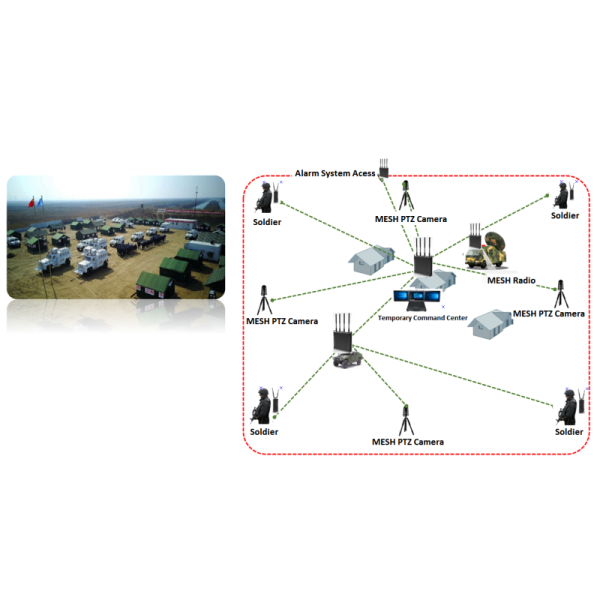

Application


Tool Box Kit
