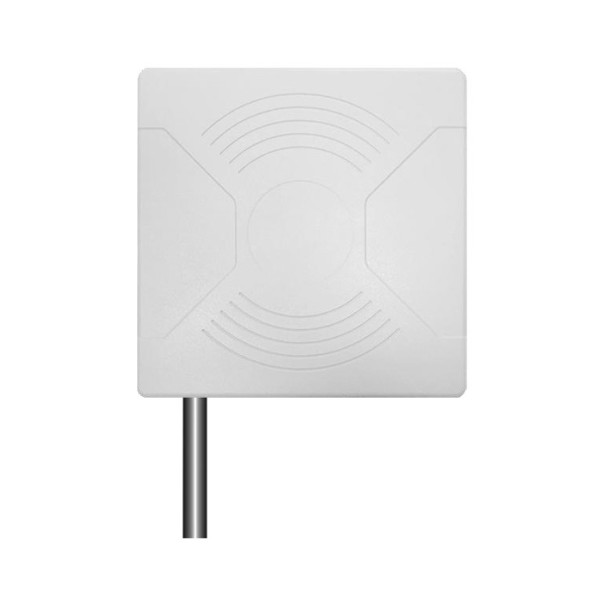

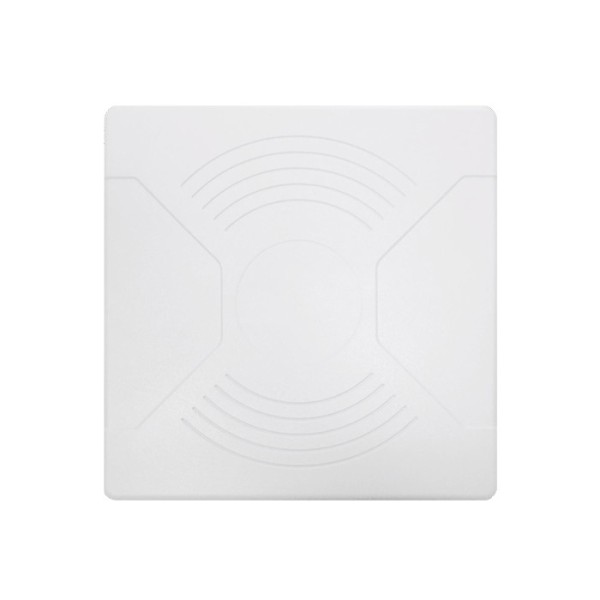

Introduction

The MANET3719-W is an 802.11AN 300Mbps 5.8G high-bandwidth wireless bridge specifically designed for ultra-long-distance wireless bridging. For bridging applications, the cast aluminum shell can not only effectively resist aging and extend the service life, but also can effectively dissipate heat to ensure stable operation. The built-in high-performance antenna designed with high-frequency materials is lightweight and has excellent RF performance, is far better than the external 23dBi antenna on the market, it is not only easier to install, but also more cost-effective.

Features

• IP67 level wireless AP/bridge/AP client
• Supports point-to-point and point-to-multipoint
• Supports WEP(64 & 128-bit)/WPA/WPA2/IEEE802.1X authentication
• Supports enable/disable SSID broadcast
• Access control based on MAC address
• Supports Upgrade firmware via HTTP
• Web based management
• Supports SNMP
• Supports configuration file backup, and can be set as default
• Supports IEEE802.1X/RADIUS
• Support IEEE802.11B/G/N wireless network
• Support IEEE802.3u 10/100 BaseT(X) Ethernet network
• Support IEEE802.3af Power over Ethernet

Note:

For AP/Bridge: WEP, WPA, WPA2, IEEE802.1X, MAC address filtering, Hide SSID, Layer 2 Isolation, for AP client: 64-bit and 128-bit WEP encryption, WPA2

Applications

• Wireless video surveillance
• Forest fire prevention
• Oilfield real-time data transmission
• Highway monitoring point data transmission
• High-speed internet connection between buildings

Specification

RF Parameters

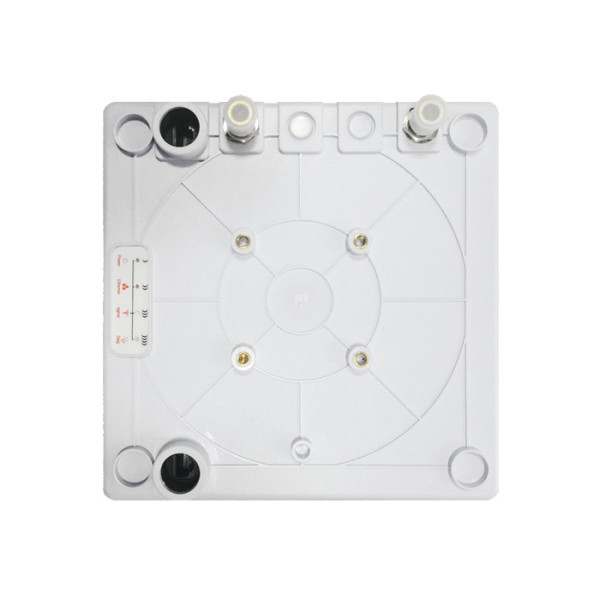

Interface Description

• RJ45 Interface, POE/Power Source
• Antenna Interface, N type, 2.4G WiFi
• Antenna Interface, N type, 2.4G WiFi
• Mounting holes
• RJ45 Interface, POE/Power Source
• Diag Indicator
• Signal Indicator
• Ethernet Indicator
• Power Indicator
