Specifications
Brand Name :
LINK-MI
Model Number :
LM-SW10
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, Bank Transfer
Delivery Time :
5-7 work days
Packaging Details :
White/Brown/Color Box
Power supply :
5V
Minimum power :
182mA
Maximum power :
277mA
Max resolution :
4k@60hz YUV4:4:4
Function :
HDR10 and CEC
HDMI version :
HDMI 2.0
HDCP version :
HDCP2.2 / HDCP1.4(Auto choose depend on TV version)
Control ways :
Switch button and IR remoter control
Distance :
1080P 20m, 4k@30hz 10m, Distance 4k@60hz under HDR can support 3m
Dimensions(LxWxH) :
125x64.2x17mm
Description

3X1 HDMI 2.0 Switch 4K@60hz YUV4:4:4 18Gbps hd matrix switcher 3 x 1 hdmi switch 3 port hdmi switch

Introduction

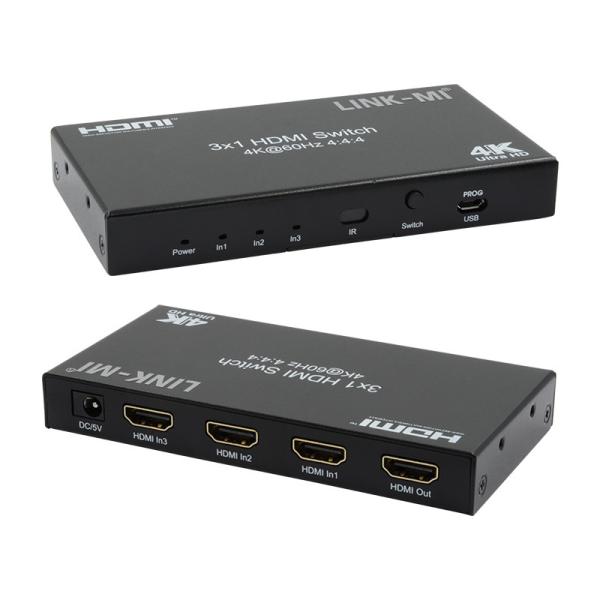

LINK-MI LM-SW10 3x1 4K HDMI 2.0 Matrix is with 3 HDMI in and 1 HDMI out, with IR Control or switch button to choose the video source. It supports 4K@60Hz YUV4:4:4 and HDR 10. It is compliant with HDCP 2.2/1.4. Suitable for all kinds of applications.

Feature

1. HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
2. Bandwidth upto 18Gbps
3. HDCP2.2/ HDCP1.4 , CEC
4. Support HDR10
5. Support 3xHDMI in, IR or switch button to choose source out
6. Micro USB interface for user to upgrade firmware
7. Keeps memory of the last power state when switch different HDMI channels

Specification

Model No. LM-SW10
Operating Temperature Range -5 to +40℃(+23 to +104℉)
Operating Humidity Range 5 to 90%RH (No Condensation)
Power supply 5V
Minimum power
(work under 480p60hz)
 182mA
Maximum power
(work under 4K2K/60hz)
 277mA
Max resolution 4k@60hz YUV4:4:4
Function HDR10 and CEC
HDMI version HDMI 2.0
HDCP version HDCP2.2 / HDCP1.4(Auto choose depend on TV version)
Control ways Switch button and IR remoter control
Distance 1080P 20m, 4k@30hz 10m, 4k@60hz under HDR can support 3m
Dimensions(LxWxH) 125x64.2x17mm
Note: Specifications are subject to change without notice.

Connection Diagram

3X1 HDMI 2.0 Switch Hd Matrix Switcher 3 X 1 Hdmi Switch 3 Port Hdmi Switch 1080P 20m

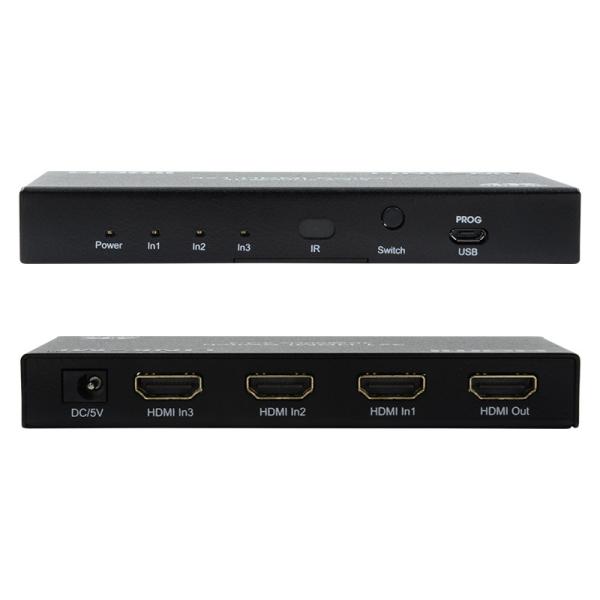

Panel Description

3X1 HDMI 2.0 Switch Hd Matrix Switcher 3 X 1 Hdmi Switch 3 Port Hdmi Switch 1080P 20m

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:
