2x1 HDMI Extender Splitter 1X2 Switch 4K@60hz YUV4:4:4 18Gbps
2x1 HDMI Extender Splitter 1X2 Switch 4K@60hz YUV4:4:4 18Gbps
2x1 HDMI Extender Splitter 1X2 Switch 4K@60hz YUV4:4:4 18Gbps
2x1 HDMI Extender Splitter 1X2 Switch 4K@60hz YUV4:4:4 18Gbps
2x1 HDMI Extender Splitter 1X2 Switch 4K@60hz YUV4:4:4 18Gbps
2x1 HDMI Extender Splitter 1X2 Switch 4K@60hz YUV4:4:4 18Gbps
2x1 HDMI Extender Splitter 1X2 Switch 4K@60hz YUV4:4:4 18Gbps
2x1 HDMI Extender Splitter 1X2 Switch 4K@60hz YUV4:4:4 18Gbps
Specifications
Brand Name :
LINK-MI
Model Number :
LM-SW11
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, Bank Transfer
Delivery Time :
5-7 work days
Packaging Details :
White/Brown/Color Box
Model No. :
LM-SW11
Function :
HDR10 and Dolby vision
Control ways :
Switch button and EDID
Max resolution :
4k@60hz YUV4:4:4
HDMI version :
HDMI 2.0
HDCP version :
HDCP2.2 / HDCP1.4 (Auto choose depend on TV version)
Distance :
5-15m
Dimensions(LxWxH) :
71.7x52x12mm
Description

1X2 HDMI Splitter/2x1 Switch 4K@60hz YUV4:4:4 18Gbps Support HDCP2.2 HDR10

Introduction

LINK-MI LM-SW11 comes with 2 HDMI in and 2 HDMI out, it can be used as 1 x 2 HDMI splitter or 2 x 1 HDMI switch. It supports 4K@60Hz as specified in HDMI 2.0, HDCP2.2/1.4 and EDID.

Features

1. HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
2. Bandwidth upto 18Gbps
3. HDCP2.2/ HDCP1.4
4. Support HDR10,Dolby vision
5. Support 2xHDMI in, 2xHDMI out
6. Support EDID copy
7. Micro USB interface for user to upgrade firmware
8. Low power consumption(2W max), 5V input

Specification

Operating Temperature Range

0℃ to +40℃(+32℉ to +104℉)

Operating Humidity Range

5 to 90%RH (No Condensation)

Power supply

5V

Maximum power

(work under 4K2K/60hz)

358mA

Max resolution

4k@60hz YUV4:4:4

Function

HDR10 and Dolby vision

HDMI version

HDMI 2.0

HDCP version

HDCP2.2 / HDCP1.4(Auto choose depend on TV version)

Control ways

Switch button and EDID

Distance

1080P: input 8m max; output 15m max

4k@30hz: input 8m max;output 15m max

4k@60hz-8bit: input 5m max;output 5m max

Dimensions(LxWxH)

71.7x52x12mm
Note: Specifications are subject to change without notice

Connection Diagram

2x1 HDMI Extender Splitter 1X2 Switch 4K@60hz YUV4:4:4 18Gbps

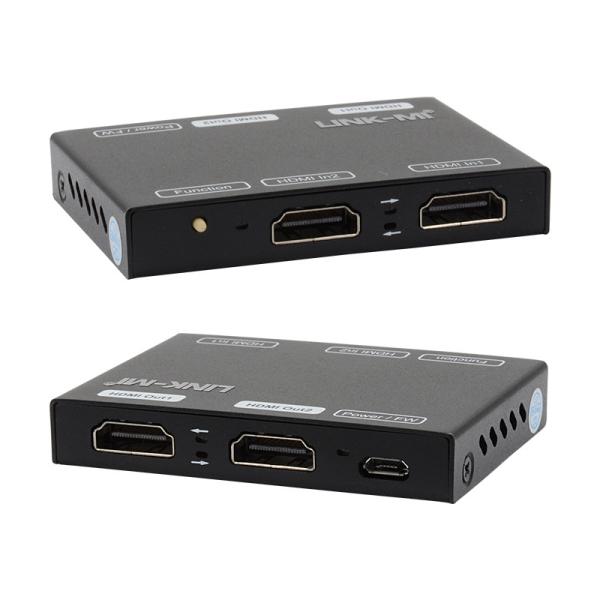

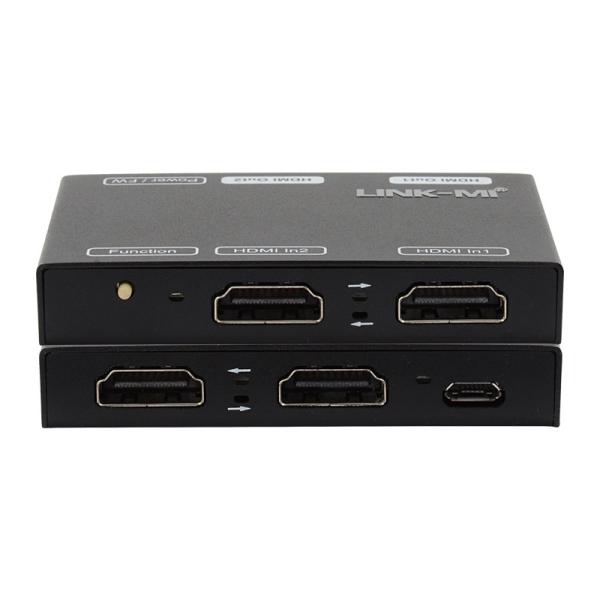

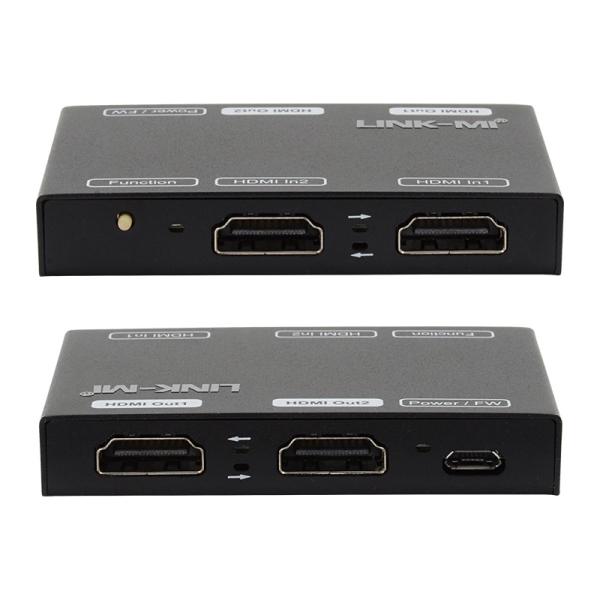

Panel Description

2x1 HDMI Extender Splitter 1X2 Switch 4K@60hz YUV4:4:4 18Gbps

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-SW11 HDMI 2x1 Switch 1x2 Splitter.pdf
