5x1 Video HDMI Switch with remote Support 3D 4K2K
5x1 Video HDMI Switch with remote Support 3D 4K2K
5x1 Video HDMI Switch with remote Support 3D 4K2K
5x1 Video HDMI Switch with remote Support 3D 4K2K
5x1 Video HDMI Switch with remote Support 3D 4K2K
5x1 Video HDMI Switch with remote Support 3D 4K2K
5x1 Video HDMI Switch with remote Support 3D 4K2K
5x1 Video HDMI Switch with remote Support 3D 4K2K
Specifications
Brand Name :
LINK-MI
Model Number :
LM-SW04-4K2K
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, Bank Transfer
Delivery Time :
5-7 work days
Packaging Details :
White/Brown/Color Box
Model No. :
LM-SW04-4K2K
Input Video Signal :
0.5-1.0 Volts P-P
Input DDC Signal :
5 volts p-p(TTL)
Support Video format :
4Kx2K/1080P/1080i/720P/576P/576i/480P/480i 3D video
Support Video Color Format :
xv-YCC/deep color 36bit
Support Audio Format :
DTS-HD Master Audio,Dolby true-HD etc
Data transfer speed rate :
10.2Gbps
Power consumption :
1.5watts
Description

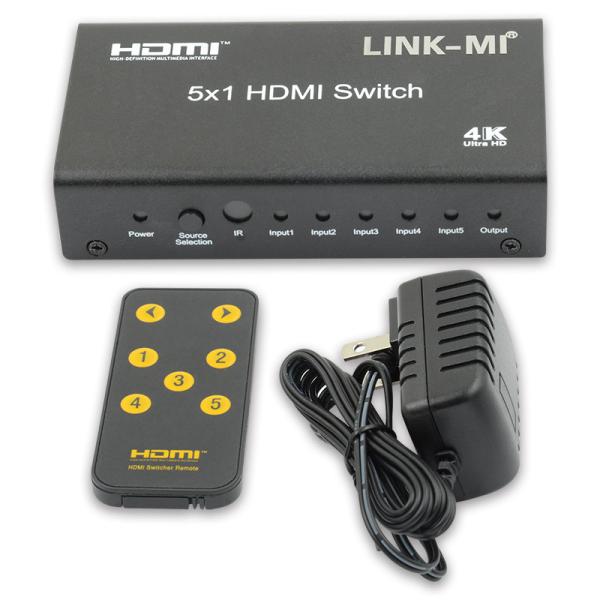

5x1 HDMI Switch with remote, Support 3D, 4K2K

Introduction

LINK-MI LM-SW04-4K2K is a 5x1 HDMI Switch which comes with remote. It supports 3D, 4K2K. User can switch any one of 5 different HDMI Signal input sources to 1 HDMI display.

Features

1. Select one of 5 different HDMI Signal input sources and switch to 1 HDMI display.
2. Manual or with remote controller to select input signals.
3. Support 36bit deep color display.
4. Support High Definition Audio: Dolby TrueHD, DTS-HD Master Audio.
5. Support Resolution up to Ultra HD 4Kx2K@30Hz, Full HD 1080p.

6. Support CEC.

Specification

Operating Temperature Range

-5 to +35℃(+23 to +95℉)

Operating Humidity Range

5 to 90%RH (No Condensation)

Input Video Signal

0.5-1.0 Volts P-P

Input DDC Signal

5 volts p-p(TTL)

Support Video format

4Kx2K/1080P/1080i/720P/576P/576i/480P/480i 3D video

Support Video Color Format

xv-YCC/deep color 36bit

Support Audio Format

DTS-HD Master Audio,Dolby true-HD etc.

Data transfer speed rate

10.2Gbps(Maximum)

Power consumption

1.5watts(Maximum)

Dimension (L×W×H)

115x62x25mm

Net Weight

212g
Note: Specifications are subject to change without notice

Connection Diagram

5x1 Video HDMI Switch with remote Support 3D 4K2K

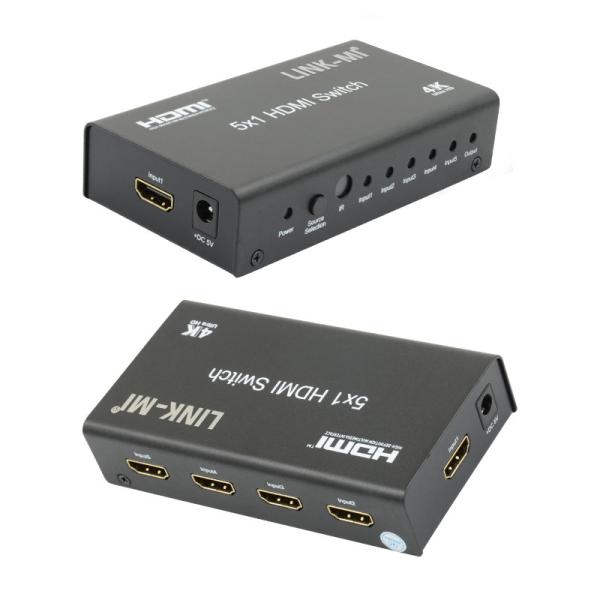

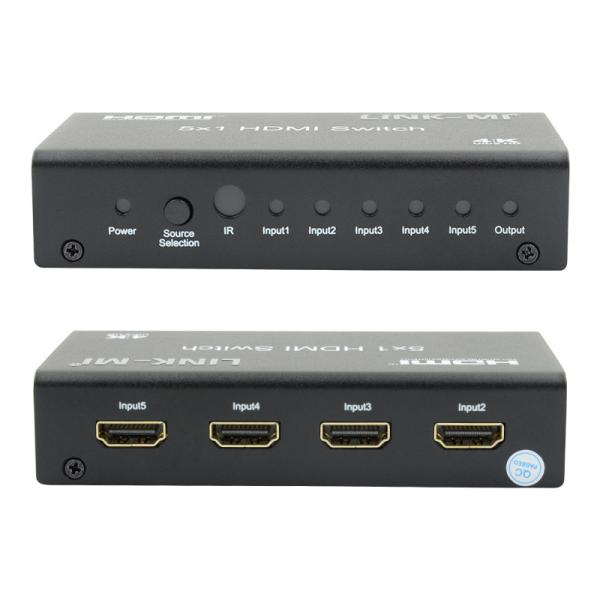

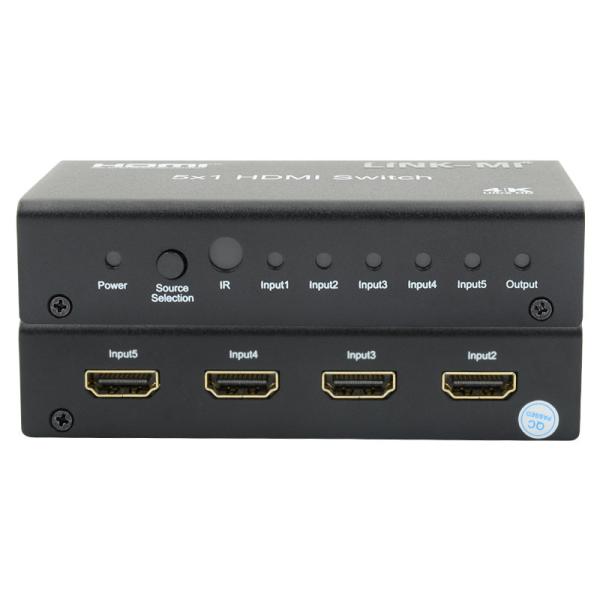

Panel Description

5x1 Video HDMI Switch with remote Support 3D 4K2K

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-SW04-4K2K 5x1 4K HDMI Switch.pdf
