Premium Agree Vibration Chamber For Precision environmental testing
Premium Agree Vibration Chamber For Precision environmental testing
Specifications
Brand Name :
Jianqiao
Model Number :
JQTHV-1000
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
,T/T
Supply Ability :
300/YEAR
Delivery Time :
5 weeks
Packaging Details :
Wooden case
Certifications :
CE, ISO 9001:2008
Power Source :
380V AC 50/60Hz
Internal Material :
Stainless steel(SUS304)
Inner Chamber :
1000*1000*1000
Temperature cooling rate :
0.8~1.5°C/Min
Frequency Rang :
3-2000Hz
Controller :
Standard: South Korea TEMI-1500
Usage :
Environmental testing
Fan :
Centrifugal blower
Internal Dimens :
Customizable
Chamber Material :
Stainless steel
Description

Premium Agree Chamber for Precision Testing | Optimize Performance


Service and Support
Our worldwide field service engineers and sales representatives provide superior service before and after the sale. An annual service
seminar gives customers hands-on experience with chamber and shaker troubleshooting and repair.


Custom Equipment

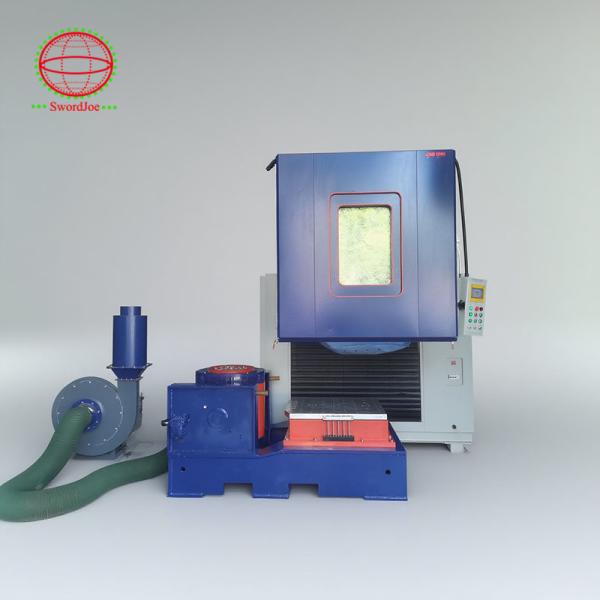

This combined system uses an 8,000 force pound electrodynamic shaker with dual slip tables. The large sliptable interfaces with the adjustable-height AGREE chamber for temperature and vibration testing.


The shaker can then flip 180 degrees to connect with the small sliptable to perform the 100g/11 ms automotive shock specification with a 100-pound payload horizontally. This custom design gave our customer a cost-effective solution for their testing needs.





Model

JQTHV-500

JQTHV-1000

JQTHV-1700

JQTHV-3400

Inner Size (cm)

50*75*65

80*70*90

100*100*100

195*315*516

Volume (L)

512L

1000L

1700L

3400L

Weight (KG)

Subject to the actual weight

Temperature Range

-70℃ to +150℃(A:0℃ B:-20℃ C:-40℃ D: -70℃)

Humidity Range

10%~98% RH

Cooling Rate

Standard 1℃ /Min or Optional specified

Heating Up Rate

Standard 3℃ /Min or specified

Frequency Range

3~5000 Hz(adjustable)

Sine Force (kg)

300kg to 35000kg for chooses or specified.300kg~35t

Displacement (mm)

Please see vibration shaker details

Max.Load (kg)

Please see vibration shaker details

Exterior material

Standard 1.2mm Electrolytic plate Electrostatic spray paint

Interior material

SUS 304# Stainless steel plate

Floor load resistance

customized

Languages

Chinese , English ,Russian

Controller

TW DELTA PLC,7 " or 10" color touch screen control

Configuration interface

With USB , WLAN, RS232 port , APP function is optional

Compressor

French Tecumseh or German Bitzer brand or Bock

Power supply

AC380V @50Hz
