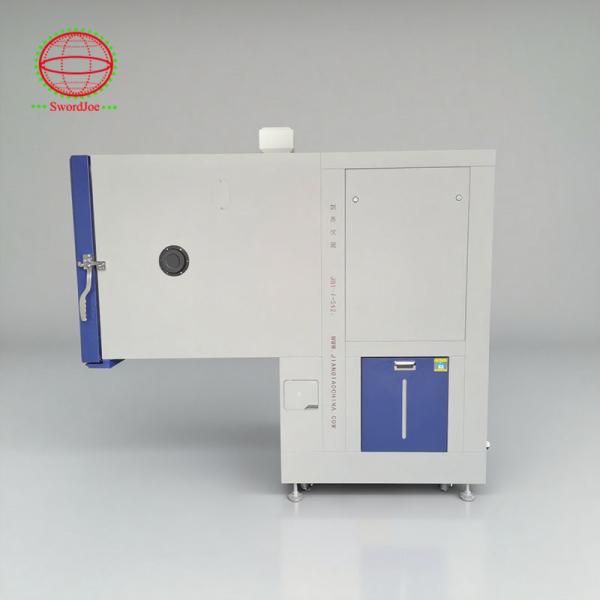

Customizable Agree Chamber For Battery Temperature Humidity Control Chamber
Customizable Agree Chamber For Battery Temperature Humidity Control Chamber
Specifications
Brand Name :
Jianqiao
Model Number :
JQTHV-1000
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
,T/T
Supply Ability :
300/YEAR
Delivery Time :
5 weeks
Packaging Details :
Wooden case
Certifications :
CE, ISO 9001:2008
Power Source :
380V AC 50/60Hz
Internal Material :
Stainless steel(SUS304)
Inner Chamber :
1000*1000*1000
Temperature cooling rate :
0.8~1.5°C/Min
Frequency Rang :
3-2000Hz
Controller :
Standard: South Korea TEMI-1500
Usage :
Environmental testing
Fan :
Centrifugal blower
Internal Dimens :
Customizable
Chamber Material :
Stainless steel
Description

Customizable Safety Features Agree Chamber For Battery Temperature & Humidity Control


Available Safety Features
Jianqiao provides safety features for reliability and abuse testing of batteries. Each environmental chamber is designed with safety in mind. Our Engineering team will review your test requirements and incorporate applicable test chamber safety features for the specific battery test application.


Below is a list of safety features that may be incorporated into Jianqiao test chambers and tailored to the various hazard levels (0 - 7) to help mitigate potential risks.

• Safety Door Interlocks
• Venting System
• Rapid Air Expansion Compensation
• Product Temperature Monitoring
• Temperature Limited Sheathed Heaters
• Intrinsically Safe Barriers
• Cooling for Test Article (CO2 & Immersion)
• GN2 Purge
• Fire Detection and Suppression
• Gas Monitors (O2, CO, HC)
• Control Signal for Separate External Systems


Battery Testing Risks
• Chemical reactions
• Thermal charges & thermal runaways
• Reactions to overcharge
• Reactions to fast charge
• Reactions to damage
• Rupture
• Fire & flame from ignition of flammable gas/liquid
• Explosion

Failure modes
• Cracks in membrane separating anode and cathode
• Overheating
• Over charging
• Under charging



Model

JQTHV-500

JQTHV-1000

JQTHV-1700

JQTHV-3400

Inner Size (cm)

50*75*65

80*70*90

100*100*100

195*315*516

Volume (L)

512L

1000L

1700L

3400L

Weight (KG)

Subject to the actual weight

Temperature Range

-70℃ to +150℃(A:0℃ B:-20℃ C:-40℃ D: -70℃)

Humidity Range

10%~98% RH

Cooling Rate

Standard 1℃ /Min or Optional specified

Heating Up Rate

Standard 3℃ /Min or specified

Frequency Range

3~5000 Hz(adjustable)

Sine Force (kg)

300kg to 35000kg for chooses or specified.300kg~35t

Displacement (mm)

Please see vibration shaker details

Max.Load (kg)

Please see vibration shaker details

Exterior material

Standard 1.2mm Electrolytic plate Electrostatic spray paint

Interior material

SUS 304# Stainless steel plate

Floor load resistance

customized

Languages

Chinese , English ,Russian

Controller

TW DELTA PLC,7 " or 10" color touch screen control

Configuration interface

With USB , WLAN, RS232 port , APP function is optional

Compressor

French Tecumseh or German Bitzer brand or Bock

Power supply

AC380V @50Hz
