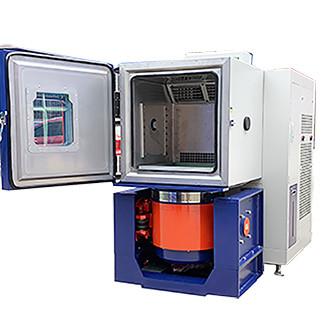

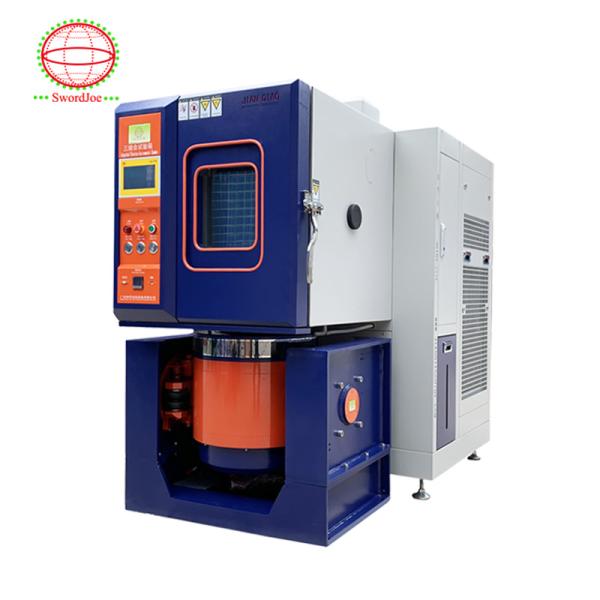

Combined Agree Chamber Vertical Temperature And Humidity Vibration Chamber Machine
Combined Agree Chamber Vertical Temperature And Humidity Vibration Chamber Machine
Combined Agree Chamber Vertical Temperature And Humidity Vibration Chamber Machine
Combined Agree Chamber Vertical Temperature And Humidity Vibration Chamber Machine
Combined Agree Chamber Vertical Temperature And Humidity Vibration Chamber Machine
Combined Agree Chamber Vertical Temperature And Humidity Vibration Chamber Machine
Specifications
Brand Name :
Jianqiao
Model Number :
JQTHV-500
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
300
Delivery Time :
5 WEEKS
Packaging Details :
Wooden case
Humidity Range :
10% to 98% RH
Control System :
PID microprocessor controller
Temperature Fluctuation :
±0.1~±0.8
Internal Material :
Stainless steel(SUS304)
Condenser :
Water cooled
Warranty :
1 year
Heater :
Nickel chromium alloy heating wire
Frequency Ran :
3-2000Hz
Controller :
Standard: South Korea TEMI-1500
Internal Size :
800(W)*800(H)*800(D)
Temperature F :
0.1~1.5°C/Min
Description

High and Low Temperature Vibration Combined chamber (JQTHV-500): mainly the combination of test chamber of vibration test system, temperature, humidity, vibration (high temperature or low temperature), (sinusoidal vibration or random vibration,shock test ) and electrical stress according to regulations.

The cycle is integrated into the sample in the same climate chamber to perform an "environmental simulation" test of temperature, humidity, and vibration. Compared with a single environmental factor, the product is more realistically simulated in the transportation and actual use environment, and the requirements of different working conditions are fully considered in the design. It is an important for assessing and assessing the adaptability of products to environmental changes and exposing products. It is a process of new product development, reliability testing, and identification test of environmental stress screening test for mass production.

Model

JQTHV-500

JQTHV-1000

JQTHV-1700

JQTHV-3400

Inner Size (cm)

50*75*65

80*70*90

100*100*100

195*315*516

Volume (L)

512L

1000L

1700L

3400L

Weight (KG)

Subject to the actual weight

Temperature Range

-70℃ to +150℃(A:0℃ B:-20℃ C:-40℃ D: -70℃)

Humidity Range

10%~98% RH

Cooling Rate

Standard 1℃ /Min or Optional specified

Heating Up Rate

Standard 3℃ /Min or specified

Frequency Range

3~5000 Hz(adjustable)

Sine Force (kg)

300kg to 35000kg for chooses or specified.300kg~35t

Displacement (mm)

Please see vibration shaker details

Max.Load (kg)

Please see vibration shaker details

Exterior material

Standard 1.2mm Electrolytic plate Electrostatic spray paint

Interior material

SUS 304# Stainless steel plate

Floor load resistance

customized

Languages

Chinese , English ,Russian

Controller

TW DELTA PLC,7 " or 10" color touch screen control

Configuration interface

With USB , WLAN, RS232 port , APP function is optional

Compressor

French Tecumseh or German Bitzer brand or Bock

Power supply

AC380V @50Hz
