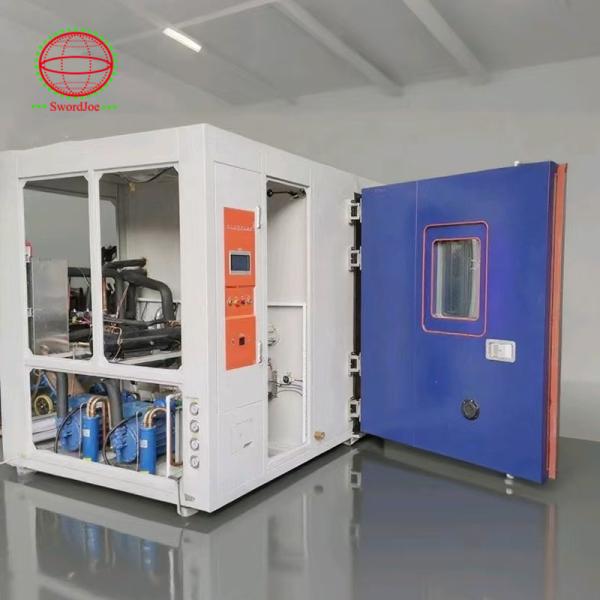

Modular Walk In Environmental Chamber For IEC MIL GB ASTM Standards
Modular Walk In Environmental Chamber For IEC MIL GB ASTM Standards
Specifications
Brand Name :
Jianqiao
Model Number :
JQWI-2000
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Supply Ability :
300
Delivery Time :
5WEEKS
Humidity range :
30~98% R.H (complex)
weight(kg) :
Subject to the actual weight
Interior material :
Stainless steel plate sus304
Temp.Range :
-70℃/-40℃~85℃/120℃/150℃/180℃ customized
Spray method :
Continuous spray
Design :
Modular
Packaging Details :
Wooden case
Description
Walk-in Environmental Chambers for IEC , MIL , GB , ASTM standards

Key Features That Make Our Walk-in Chambers Stand Out

Built for Innovation. Designed for Efficiency.

When you invest in a walk-in chamber, you're not just buying a box — you're investing in a precision-engineered climate testing system. Here’s what sets ours apart:

Modular Design – Easy to install and expand
Smart Controller – Touchscreen PLC with programmable cycles
Efficient Lighting & Insulation – Lower energy costs
Customizable Conditions – Meet IEC, MIL, GB, ASTM standards
Reliable Components – Long-lasting compressors, sensors, valves



Walk-in vs. Benchtop Environmental Chambers: Which Is Right for You?

Scale Up Smart with Our Walk-in Solutions

Small benchtop chambers are great for small samples — but if you're testing full-size products, prototypes, or batches, a walk-in chamber gives you the space and flexibility to do more, faster.

Feature Benchtop Chamber Walk-in Chamber
Capacity Limited Large-scale
Access External only Walk-in for easy loading
Test Speed One-by-one Batch testing
ROI Slower Faster, better efficiency

Bottom line? Walk-in chambers are ideal if you want to increase capacity, improve test control, and boost productivity.



Model

JQ-8000C

JQ-12000C

JQ-16000C

Non-standard customization

Volume

8 cubic meters

12 cubic meters

16 cubic meters

Non-standard customization

Dimensions of working chamber(mm)

2000*2000*2000

3000*2000*200

4000*2000*200

Non-standard customization

Chamber temperature

Salt water test method (NSS AASS) 35 degrees °C ± 1 ° C / corrosion resistance test method (CASS) 50 ° C ± 1 ° C / 10 ° C ~ 70 ° C (composite)

Pressure tank temperature

Salt water test method (NSS AASS) 47 degrees °C ± 1 °C / corrosion resistance test method (CASS) 63 ° C ± 1 ° C

Saline concentration

Add 0.26 g of copper chloride per liter in 5% sodium chloride solution or 5% sodium chloride solution

Humidity range

30~98%R.H (complex)

Compressed air pressure

1.00±0.01kgf/ cm²

Amount of spray

1.0~2.0ml/80 cm²/h Collect at least 16 hours, take the average

chamber relative humidity

Over 85%

pH value

6.5~7.2 (NSS AASS)
3.0~3.2 (CASS)

Spray method

Continuous spray

power supply

AC380V Φ 3 phase 28.6KW

AC380V Φ 3 phase 30.6KW

AC380V Φ 3phase 32.6KW

AC380V Φ 3phase
