Temperature range up to 150°C

Temperature-cycling faster than 5 °C/min.

Capabable of long-term 85°/85% tests

(Conventional chambers, are built using panels with foam insulation that cannot withstand higher temperatures and are mor susceptible to leaks at the seams under extreme conditions, such as fast temperature cycling.)

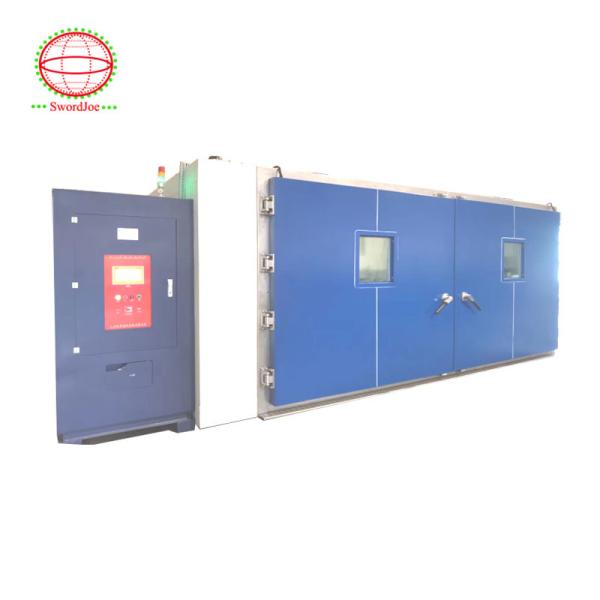

The angle-iron frame provides enough structural strength to allow a full-opening door for easy loading of large arrays without restriction. A full-opening door can also allow floor-space saving over panel chambers.

Easy-to-use Programmer

In addition, the JQ-2700 Touch-screen controller makes running an environmental test chamber a breeze. The full-color, touch-screen interface is remarkably easy to use and understand. Touch Screen Controller can be managed remotely via our Ethernet/LAN-based Web Controller or RS-232 serial port.

• Solid-construction chamber is a one-piece welded structure with six inches of fiberglass insulation and a 304 stainless steel interior
• Full-opening door(s) with heated windows
• One 4" (100mm) diameter cable port with silicone plug

Refrigeration and Plenum

• Modular or Integrated Air Plenum with cooling coil, wire heaters, and two circulator blowers
• Non-CFC refrigeration system using Copeland Discus or Scroll compressors
• Automatic water regulator controls water usage on water cooled models
• Humidity system includes steam generator and dehumidification coil

System Controls

• Instrumentation console mounted to the right of the chamber door
• Three levels of overheat protection including an independent, adjustable sensor
• ESPEC's Exclusive P-300 Programmer

• Three levels of overheat protection including an independent, adjustable sensor
• ESPEC's Exclusive P-300 Programmer

Optional Capabilities

• IR Infrared Lighting for radiant surface heating of samples Click for an example
• Solar simulation lighting per DIN 75-220 Click for an example
• Integration with vibration shaker systems Click for an example
