Environmental Walk In Test Chamber For Automotive Electronics Aerospace Batteries
Environmental Walk In Test Chamber For Automotive Electronics Aerospace Batteries
Specifications
Brand Name :
Jianqiao
Model Number :
JQWI-2000
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Supply Ability :
300
Delivery Time :
5WEEKS
Humidity range :
20 % to 98% RH
weight(kg) :
Subject to the actual weight
Interior material :
Stainless steel plate sus304
Temp.Range :
-70℃/-40℃~85℃/120℃/150℃/180℃ customized
Temp Fluctuation :
±0.5℃
Design :
Modular
Packaging Details :
Wooden case
Description

Walk-In Chambers For Automotive, Electronics, Aerospace, Batteries, Defense Products

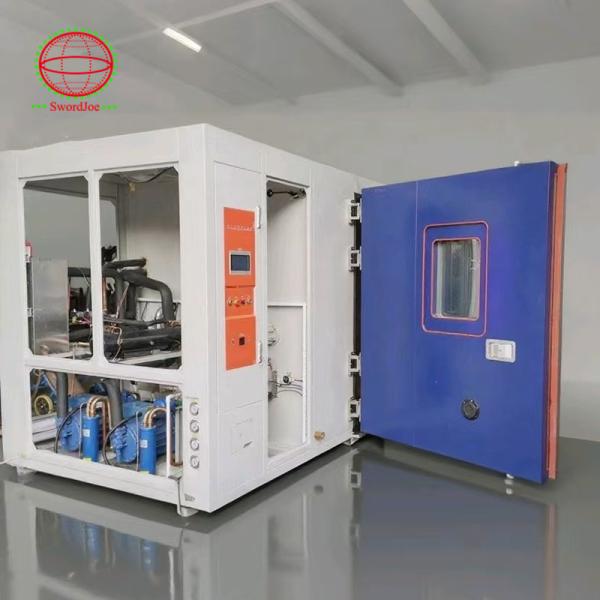

The JIANQIAO JQWI Series Walk-In Test Chamber is a large-capacity environmental testing solution designed for simulating a wide range of temperature and humidity conditions. Ideal for large products, batch testing, or full-system evaluations, the walk-in chamber provides consistent, accurate, and programmable control for various industries such as automotive, electronics, aerospace, batteries, defense, and more.

Built with energy efficiency, modular construction, and advanced PLC control systems, our walk-in chambers help manufacturers ensure product reliability, stability, and performance under extreme conditions.



Key Features:

  • Precise control of temperature (-70°C to +150°C) and humidity (20~98%RH)

  • Modular structure for easy transport, installation, and expansion

  • High-efficiency refrigeration system with eco-friendly refrigerants

  • PLC touchscreen controller with remote monitoring (optional)

  • Built-in safety protection (over-temperature, compressor overload, water shortage)

  • Custom size, door design, and interior layout available

Technical Parameters (Standard Models)

Parameter Specification
Model JQWI Series
Internal Volume 8m³ / 10m³ / 15m³ / 20m³ / Custom
Internal Dimensions (W×H×D) Customizable (e.g., 2000×2000×2000mm)
Temperature Range -70°C ~ +150°C
Temperature Fluctuation ±0.5°C
Temperature Deviation ±2.0°C
Humidity Range 20%RH ~ 98%RH
Humidity Fluctuation ±2.5%RH
Cooling Method Air-cooled / Water-cooled
Refrigeration System Cascade or single-stage, using R404A / R508B / R449A
Insulation High-density polyurethane foam, 100~150mm thick
Controller Touchscreen PLC (e.g., TEMI880 or programmable)
Power Supply AC 380V±10%, 50Hz / 60Hz, 3-phase
Safety Devices Over-temp, phase protection, leakage breaker, alarm system
Optional Features Viewing window, data logger, remote control, ramp programming

Applications:

  • Automotive parts aging and cold testing

  • Battery module safety and thermal cycling

  • Aerospace materials durability assessment

  • Large electronics or appliances testing

  • Military equipment validation under harsh environments



Model

JQ-8000C

JQ-12000C

JQ-16000C

Non-standard customization

Volume

8 cubic meters

12 cubic meters

16 cubic meters

Non-standard customization

Dimensions of working chamber(mm)

2000*2000*2000

3000*2000*200

4000*2000*200

Non-standard customization

Chamber temperature

Salt water test method (NSS AASS) 35 degrees °C ± 1 ° C / corrosion resistance test method (CASS) 50 ° C ± 1 ° C / 10 ° C ~ 70 ° C (composite)

Pressure tank temperature

Salt water test method (NSS AASS) 47 degrees °C ± 1 °C / corrosion resistance test method (CASS) 63 ° C ± 1 ° C

Saline concentration

Add 0.26 g of copper chloride per liter in 5% sodium chloride solution or 5% sodium chloride solution

Humidity range

30~98%R.H (complex)

Compressed air pressure

1.00±0.01kgf/ cm²

Amount of spray

1.0~2.0ml/80 cm²/h Collect at least 16 hours, take the average

chamber relative humidity

Over 85%

pH value

6.5~7.2 (NSS AASS)
3.0~3.2 (CASS)

Spray method

Continuous spray

power supply

AC380V Φ 3 phase 28.6KW

AC380V Φ 3 phase 30.6KW

AC380V Φ 3phase 32.6KW

AC380V Φ 3phase
