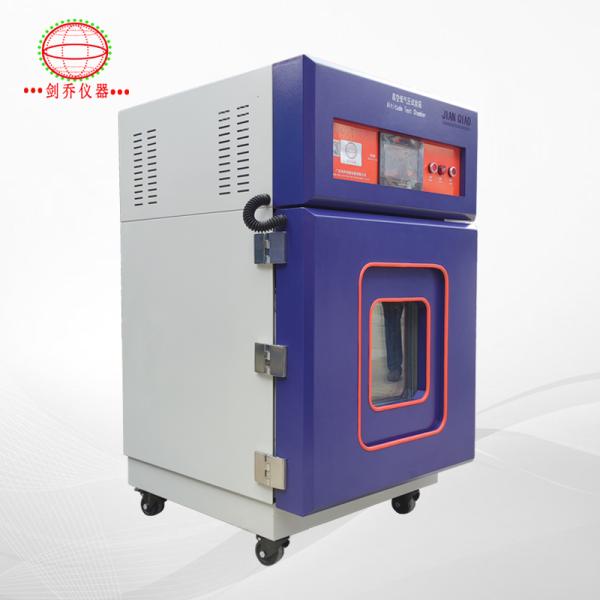

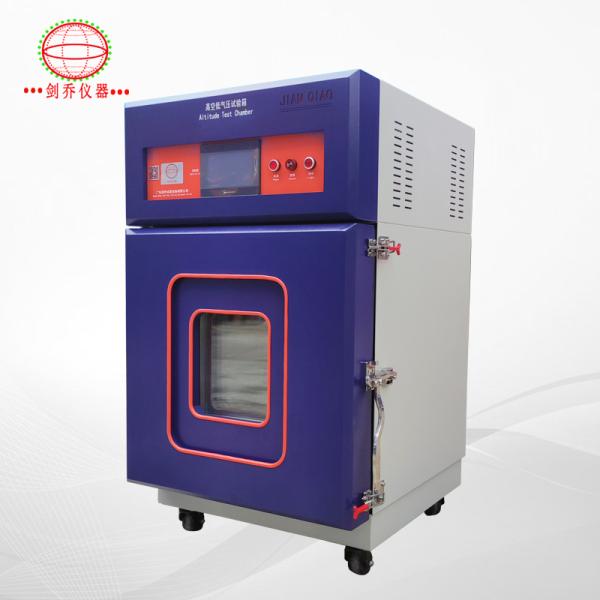

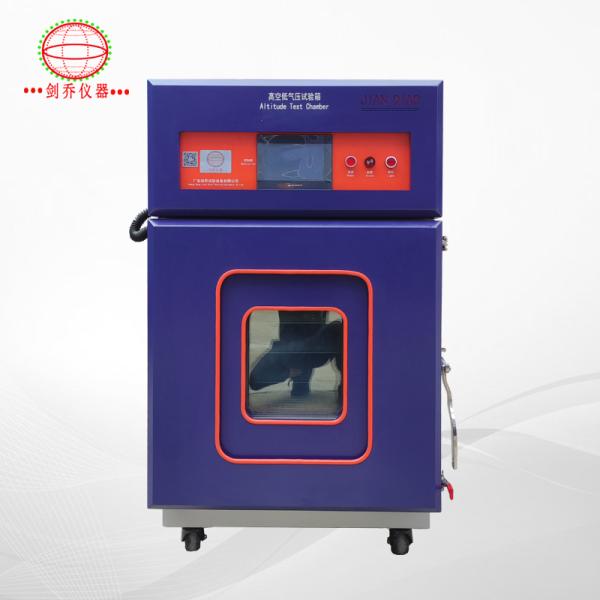

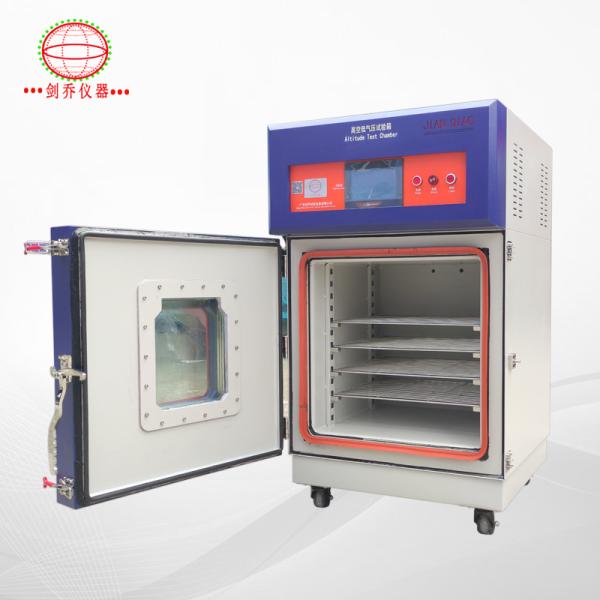

2000W Battery Test Equipment 50KN Battery High Altitude Test Chamber
2000W Battery Test Equipment 50KN Battery High Altitude Test Chamber
2000W Battery Test Equipment 50KN Battery High Altitude Test Chamber
2000W Battery Test Equipment 50KN Battery High Altitude Test Chamber
2000W Battery Test Equipment 50KN Battery High Altitude Test Chamber
2000W Battery Test Equipment 50KN Battery High Altitude Test Chamber
2000W Battery Test Equipment 50KN Battery High Altitude Test Chamber
2000W Battery Test Equipment 50KN Battery High Altitude Test Chamber
2000W Battery Test Equipment 50KN Battery High Altitude Test Chamber
2000W Battery Test Equipment 50KN Battery High Altitude Test Chamber
Specifications
Carton size :
W940*D780*H1650
Chamber inner material :
SUS 304# stainless steel
Maximum load :
50KN
Power Comsumption :
2000W
Packaging Details :
Wooden case
Description

The high-altitude low-pressure test machine is used to simulate the detection of battery leakage, shell rupture, fire or explosion in a test environment with a constant temperature or variable temperature (ie high altitude).

Test purposes

Battery low pressure (high altitude) simulation test, all tested samples are tested under a negative pressure of 11.6 kPa (1.68 psi)

Single battery safety test Low air pressure (GB/T 31241-2014)

a) Single battery charging

b) In the low-pressure tank of the single-cell battery method, the air pressure in the test chamber is adjusted to 11.6kpa, the temperature is room temperature, and it is allowed to stand for 6h.

c) Observation 1h

Battery module safety test Low air pressure (GB/T 31485-2015)

a) Battery module charging

b) The battery module is placed in a low-pressure test chamber, and the air pressure in the test chamber is adjusted to 11.6kpa, the temperature is room temperature, and it is allowed to stand for 6h.

c) Observation 1h

Model

Q-8104 (customizable)

Carton size

W940*D780*H1650

Chamber inner material

SUS 304# stainless steel (thickness 6.0mm)

Chamber outter material

standard 1.2mm electrolytic plate electrostatic spray paint

Air pressure

11.6Kpa

Measure accuracy

±1%

Types of

Fully automatic pressure testing machine, battery simulation high altitude low pressure test chamber

Use

Battery low pressure (high altitude) simulation test, all tested samples
are tested under a negative pressure of 11.6 kPa (1.68 psi)

Weight

300KG

Maximum load

50KN

Power supply

AC 220V 50HZ

Power Comsumption

2000W
