Specifications
Temperature control method :
Touch screen
Temperature display accuracy :
±0.1℃
Chamber outter size (W·D·H) :
1400*1300*1840mm
Heating rate :
(5±2)℃/min Nonlinear no-load
Packaging Details :
Wooden case
Description

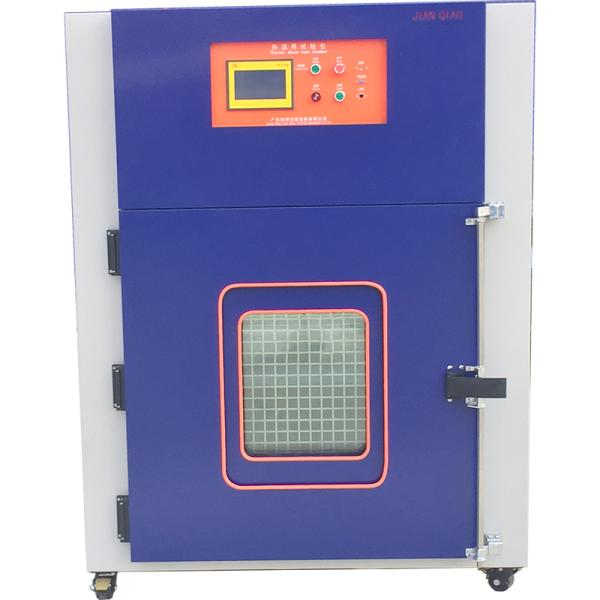

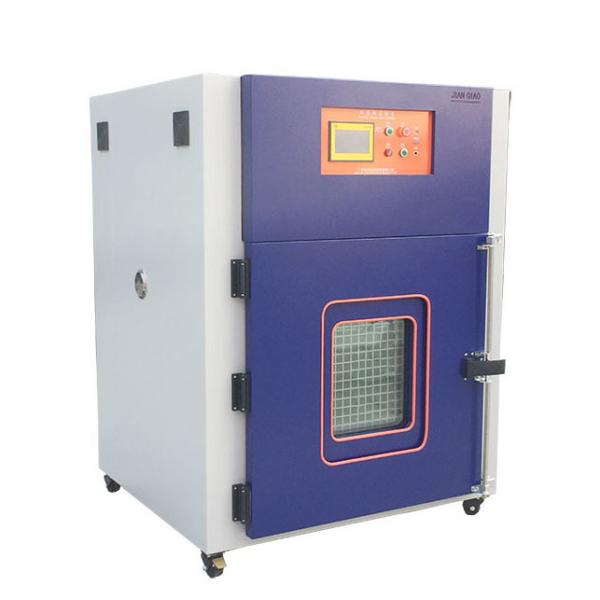

The Thermal abuse test chamber is based on the requirements of the test standards such as UL1642 and IEC62133. After the battery is fully charged, the battery is placed in the test chamber. The test chamber is heated at a temperature rise rate of (5 ± 2) ° C / min, and the temperature is constant after the temperature in the chamber reaches 130 ° C ± 2 ° C for 30 min. The battery should not ignite and not explode.

Single battery safety test:

The heating test:

a) The rechargeable battery is charged according to the method of 6.1.3.

b) The single battery is placed in the temperature chamber.

For lithium ion batteries, the temperature chamber is raised from RT to 130 °C ± 2 °C at a rate of 5 ° C / min,

and the heating is stopped after maintaining this temperature for 30 min;

For metal cyanide nickel batteries, the temperature chamber is heating at a rate of 5 ° C / min

The temperature was raised from RT to 85 ° C ± 2 ° C, and the temperature was stopped after 2 h.

c) observe 1h

Battery module safety test:

The battery module battery is charged according to the method of 6.1.4;

a) For the lithium ion battery, the temperature box is raised from room temperature to 130 °C ± 2 °C at a rate of 5 ° C / min,

and the heating is stopped after maintaining the temperature for 30 min;

b) For the cyanide nickel battery, the temperature box was raised from room temperature to 85 °C ± 2 °C at a rate of 5 ° C / min,

and the heating was stopped after maintaining this temperature for 2 h.

c) observe 1h

Model

RLY-1000A

Temperature control method

Touch screen

Temperature range

Room temperature (or ambient temperature) +10~200°C

Temperature display accuracy

±0.1℃

Temperature uniformity

±2℃

Chamber inner size (W·D·H)

1000*1000*1000mm( customized )

Chamber outter size (W·D·H)

1400*1300*1840mm

Heating rate

(5±2)℃/min Nonlinear no-load

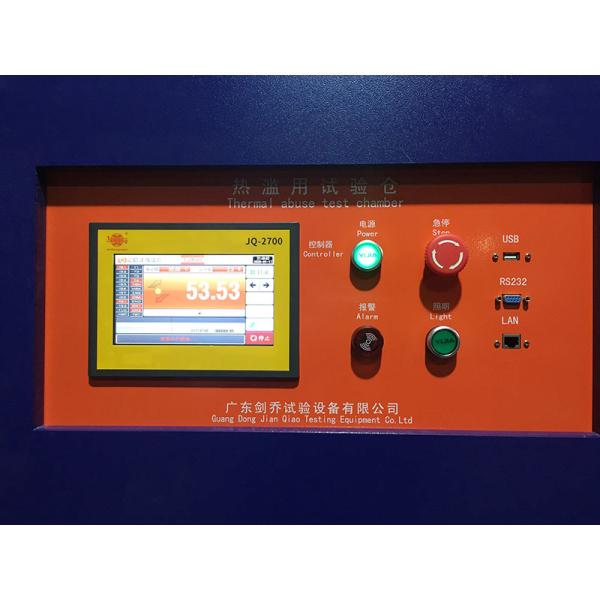

Temperature Controller

Delta touch screen series temperature controller

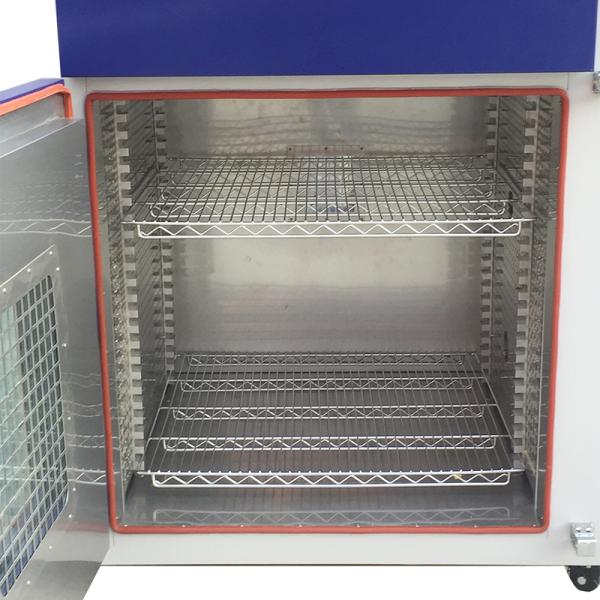

Chamber Inner material

stainless steel

Chamber Outer material

Cold rolled steel sheet baking treatment

Timing function

Touch screen display, freely set from 0~9999h/m/s

Insulation material

High efficiency compression insulation cotton

Exhaust flue

Fin design allows for adjustable air volume

Thermal insulation device

Fuseless switch, over temperature protection switch, porcelain fuse

Safety equipment

The first over temperature alarm, MCCB overload protection, etc.

Control System

When the temperature is up, the time is up, the buzzer stops.

Air circulation system

Convection air circulation system

Power

AC220V±10%,50/60Hz
