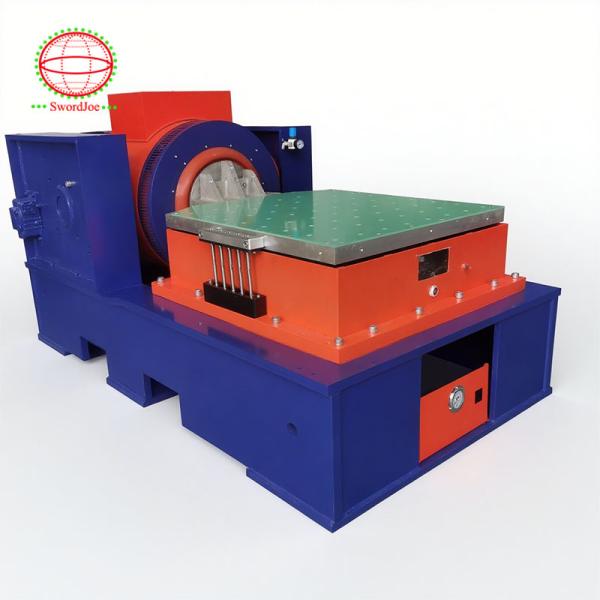

Battery Vibration Testing Machine UN38.3 EV Battery Testing Machine
Battery Vibration Testing Machine UN38.3 EV Battery Testing Machine
Battery Vibration Testing Machine UN38.3 EV Battery Testing Machine
Battery Vibration Testing Machine UN38.3 EV Battery Testing Machine
Specifications
Brand Name :
Jianqiao
Model Number :
JQA-202-335
Certification :
CE
Place of Origin :
China
MOQ :
1
Supply Ability :
300 sets
Packaging Details :
Wooden case
Frequency :
2000Hz
Sine force :
20kN /2000kg/4409lbf
Random force :
20kN /2000kg/4409lbf
Shock force :
98kN /9800kg/9918lbf
Channel :
2/4/8/16
Maximum acceleration :
100g
Maximum displacement :
100mm (4"）/76mm (3")/51mm (2")
Maximum load :
300KG
moving parts mass :
20KG
Armature diameter :
335mm
Description
Battery Vibration Testing UN38.3 for EV Battery Testing
Technical Specifications
Attribute Value
Frequency 2000Hz
Sine force 20kN /2000kg/4409lbf
Random force 20kN /2000kg/4409lbf
Shock force 98kN /9800kg/9918lbf
Channel 2/4/8/16
Maximum acceleration 100g
Maximum displacement 100mm (4")/76mm (3")/51mm (2")
Maximum load 300KG
Moving parts mass 20KG
Armature diameter 335mm
EV Battery Vibration Testing Overview

Lithium-ion batteries are the most common battery type used for electric vehicles. During their lifespan, these batteries undergo various vibrations and temperature changes. Several test standards have been developed to simulate long-term environmental effects on these batteries across different size levels (cell, module, pack).

Vibration Test Types
  • Sine Vibration: Periodic vibration following sine/cosine functions, including fixed-frequency and sweep-frequency variations
  • Random Vibration: Irregular waveform vibration that better simulates real-world conditions like road travel
  • Mixed-mode Vibration: Superposition of sine and random vibrations for complex simulation scenarios
Key Battery Vibration Standards

SAE J2380: Simulates 100,000 miles of driving with random vibration profiles across three axes

Battery Vibration Testing Machine UN38.3 EV Battery Testing Machine

SAE J2464: Evaluates abuse tolerance with thermal shock cycling and shock vibration tests

Battery Vibration Testing Machine UN38.3 EV Battery Testing Machine

IEC 62660-2: Specifies reliability testing including random vibration and mechanical shock tests

UN 38.3: Simulates transportation conditions with swept sine vibration and shock tests

Battery Vibration Testing Machine UN38.3 EV Battery Testing Machine
Shaker Specifications
Model JQA-202-335 / JQA-203-335
Frequency Range (Hz) 5~3000
Rated sinusoidal force (KN) 20
Shock force (KN) 40/60✱
Max. acceleration (m/s²) 980
Max. speed (m/s) 2
Max. displacement (mmp-p) 51/76
Max. load (kg) 300
About Guangdong Jianqiao Testing Equipment Co.,Ltd

A professional manufacturer specializing in R&D, production and sales of vibration test systems, environmental test chambers and battery testing equipment. With over 20 years of experience, we provide high-quality products and solutions that meet ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, and other international standards.

Our products are widely used in new energy vehicles, aerospace, shipping, electronics industry and other sectors, serving scientific research units, quality inspection institutions and academic fields.

Battery Vibration Testing Machine UN38.3 EV Battery Testing Machine Battery Vibration Testing Machine UN38.3 EV Battery Testing Machine Battery Vibration Testing Machine UN38.3 EV Battery Testing Machine Battery Vibration Testing Machine UN38.3 EV Battery Testing Machine
