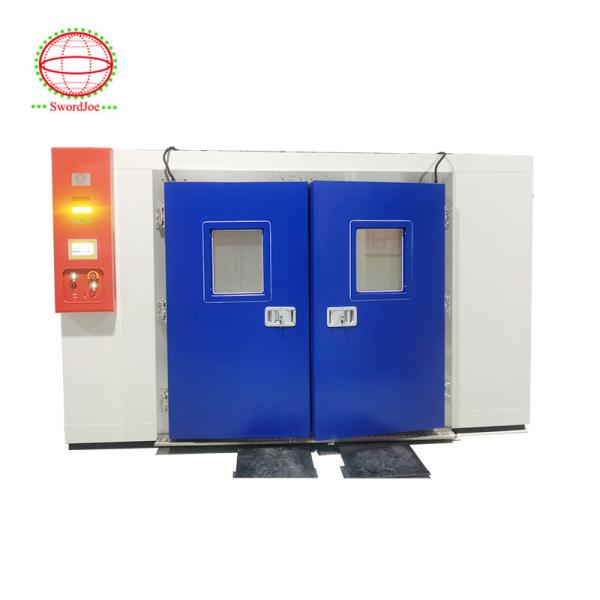

Large Scale Precision Walk In Environmental Test Chamber Accommodate Multiple Samples
Large Scale Precision Walk In Environmental Test Chamber Accommodate Multiple Samples
Specifications
Brand Name :
Jianqiao
Model Number :
JQWI-2000
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Supply Ability :
300
Delivery Time :
5WEEKS
Design :
Modular
Humidity range :
20 % to 98% RH
weight(kg) :
Subject to the actual weight
Interior material :
Stainless steel plate sus304
Temp.Range :
-70℃/-40℃~85℃/120℃/150℃/180℃ customized
Temp Fluctuation :
±0.5℃
Packaging Details :
Wooden case
Description
Walk-in Environmental Test Chamber Advantage For Test Large Items Accommodate Multiple Samples
Walk-in chambers are large, environmental test chambers that allow users to enter and conduct testing on large products or multiple test samples under controlled conditions. These chambers simulate specific environmental conditions, such as temperature and humidity, to assess how products will perform in real-world scenarios. Their key advantages include the ability to test large items, accommodate multiple samples, and simulate a wide range of environmental conditions for comprehensive product evaluation.

Structure:
Walk-in chambers consist of an insulated enclosure, a refrigeration system to control temperature, a humidity control system, and a control panel for managing the environment. The enclosure is designed to be airtight and maintain a stable, uniform environment throughout. The refrigeration and humidity control systems work together to create and maintain the desired temperature and humidity levels. The control panel allows users to set and monitor parameters, program test cycles, and manage the chamber's operation.

Advantages:
  • Large Size and Capacity:
    Walk-in chambers can accommodate large products or a high volume of samples, making them suitable for testing a wide range of items, from automotive parts to electronic components.

  • Controlled Environment:
    They provide a precisely controlled environment, allowing for the simulation of extreme temperatures, humidity levels, and other environmental factors.

  • Versatility:
    Walk-in chambers are used in various industries, including aerospace, automotive, electronics, and pharmaceuticals, for product development, quality assurance, and reliability testing.

  • Realistic Testing:
    By simulating real-world conditions, these chambers help manufacturers ensure that their products can withstand the stresses they will encounter during their lifecycle.

  • Cost-Effectiveness:
    While the initial investment may be higher, walk-in chambers can be more cost-effective in the long run, especially for large-scale testing, as they can accommodate multiple samples in a single test cycle.

  • Enhanced Product Reliability:
    By identifying potential weaknesses and flaws through rigorous testing, walk-in chambers contribute to improved product quality, reliability, and safety.




模型

JQWI - 08

JQWI - 12

JQWI - 16

JQWI - 25

JQWI - 34

JQWI - 40

内部尺寸(厘米)

200 * 200 * 200

200 * 300 * 200

220 * 350 * 210

300 * 400 * 210

340 * 480 * 220

400 * 500 * 220

形状尺寸(厘米)

230*360*240

230*460*240

246*520*250

330*560*250

370*660*270

430*660*270

体积(升)

8.0立方米

12立方米

16立方米

25立方米

34立方米

40立方米

温度范围

-70℃ / -40℃ ~ 85℃ /120 ℃ /150 ℃ /180 ℃定制

湿度范围

20% 至 98% 相对湿度

温度变化

±0.5℃

空间温度变化

±2℃

温度冷却速度

1℃/分钟或定制

温升率

3℃/分钟或定制

重量(公斤)

以实际重量一致

外部材料

疲劳式试验箱标准彩/冷轧钢板/覆膜金属板

内部材质

不锈钢板sus304

地板承重能力

定制

门

PWM控制冷端温度

控制器

TW DELTA PLC,7英寸或10英寸彩色触摸屏控制

配置接口

具有USB,WLAN,RS232端口,APP功能可选

矿工

法国Tecumseh或德国Bitzer品牌或Bock

电源

交流380V@50Hz
