1550m3/h 1780CFM Cross Flow Residential Door Air Curtain
1550m3/h 1780CFM Cross Flow Residential Door Air Curtain
1550m3/h 1780CFM Cross Flow Residential Door Air Curtain
1550m3/h 1780CFM Cross Flow Residential Door Air Curtain
1550m3/h 1780CFM Cross Flow Residential Door Air Curtain
1550m3/h 1780CFM Cross Flow Residential Door Air Curtain
Specifications
Brand Name :
NANYOO / OEM / ODM
Model Number :
FM-1009H3-2(Y)
Certification :
CE/CB/CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
15000 pcs per month
Delivery Time :
30-35 work days
Packaging Details :
Carton With Foam Protection
Type :
Air Curtain , Commercial / Household / Indoor
Product Name :
Commercial air curtain, Remote Control Cross Flow Strong Wind Low Noise Metal Door Air Curtain
Speed :
1 or 2 speeds for options
Operating voltage :
230 VAC, 220V, 115 VAC
Mounting :
Door / Wall / Window Mount, Other
Mounting Height :
2.3-3 m
Air flow :
1780 CFM
Color :
White & black , Customer Requirements
Description

Commercial Economical Type Cross Flow Residential Door Air Curtain

Suitable For Business Shop / Office Building

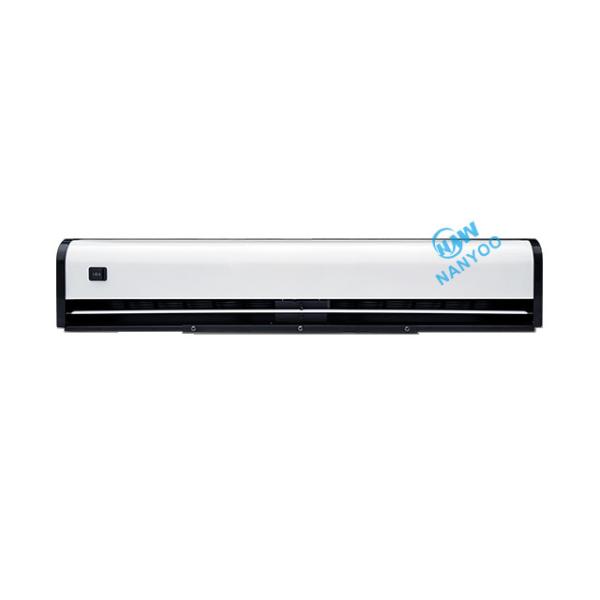

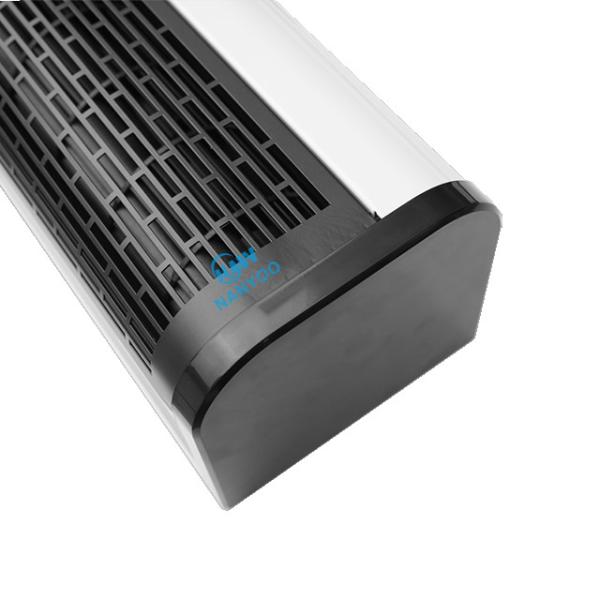

Model H3 Door Air Curtain - Latest metal plus plastic grill design, impact and grace outlooks.

PRODUCTS PARAMETERS

Voltage/Frequency:220 - 240V / 50Hz , or 110V / 60Hz , 110V / 50Hz , 220V / 60Hz are all available

Model Diameter of Impeller Input Power Air
Velocity 		Air Volume Noise Fuselage Size Mounting Height
(mm) (W) (m/s) (m³/h)/CFM (dB) (mm) (m)
FM-1009H3-2(Y) 100 100 10-11 1550 ≤45 910×178×176 2.3-3
FM-1010H3-2(Y) 100 115 10-11 1720 ≤45 1005×178×176 2.3-3
FM-1012H3-2(Y) 100 135 10-11 2130 ≤46 1205×178×176 2.3-3
FM-1015H3-2(Y) 100 150 10-11 2650 ≤48 1500×178×176 2.3-3
FM-1018H3-2(Y) 100 180 10-11 3200 ≤50 1795×178×176 2.3-3
FM-1020H3-2(Y) 100 185 10-11 3550 ≤52 2000×178×176 2.3-3

Options model with high speed or with electrical heating /

Multiple voice noise reduction technology more quiet , noise low for 45dB .

1550m3/h 1780CFM Cross Flow Residential Door Air Curtain

  • Fashion design , won't be rusty and discoloration
  • The body is without visible screw, elegant appearance

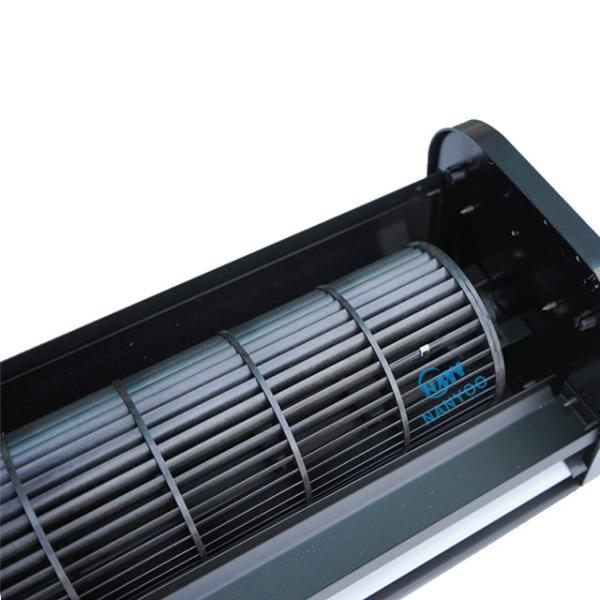

  • Adopting high-performance motor, safe and reliable; Centrifugal turbine creates higher air velocity
  • Adopting updated remote control with high and low speeds operation

Suitable for installation in luxury hotel, supermarket chains, large stadiums and airport terminals and other
entrances of high-grade places etc
Installation height: 2.3-3m

1550m3/h 1780CFM Cross Flow Residential Door Air Curtain

Professional air duct design can realize more silent effect and superior performance of the product
High-quality ball bearing to ensure motor running more smoothly and silent

1550m3/h 1780CFM Cross Flow Residential Door Air Curtain
