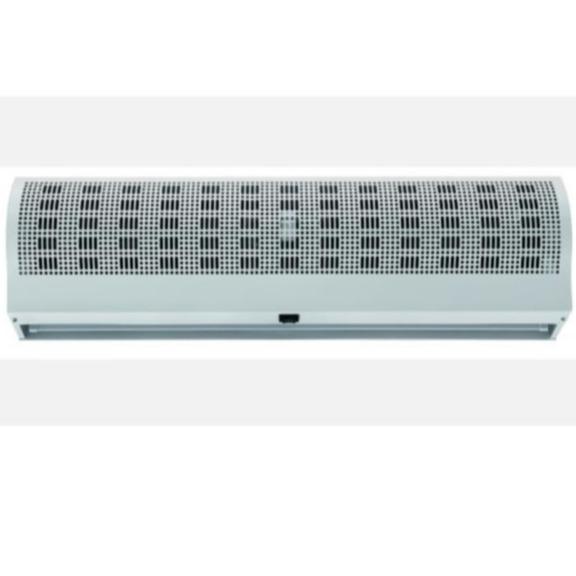

Cyclone Cross Flow Door 1780m³/H 150W Commercial Air Curtain
Cyclone Cross Flow Door 1780m³/H 150W Commercial Air Curtain
Cyclone Cross Flow Door 1780m³/H 150W Commercial Air Curtain
Cyclone Cross Flow Door 1780m³/H 150W Commercial Air Curtain
Cyclone Cross Flow Door 1780m³/H 150W Commercial Air Curtain
Cyclone Cross Flow Door 1780m³/H 150W Commercial Air Curtain
Specifications
Brand Name :
NANYOO or OEM / ODM
Model Number :
FM- 1209X
Certification :
CE / CB / CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
10000 units per month
Delivery Time :
30-35 work days
Packaging Details :
Carton With Foam Protection
Product name :
Cross flow door air curtains
Fan Type :
Cross Flow fan
Voltage :
110V / 220V , 50Hz / 60Hz
Material :
Metal Casing
Color :
Silver / White
Operation :
Remote control and button control
Motor :
Fine copper motor warranty for 5 years
Function :
Adjustable air deflector / High efficient motor / Quiet wind wheel
Noise :
44db
Mounting :
Ceiling Mount
Description

Cyclone Cross Flow Door Air Curtains / Commerial Air Curtain Easy Installation And Cleaning

Unique Arc Design And Slim Body

FEATURE

Slim all metal housing with esthetic curved design

Sturdy metal housing, smooth and bright apraying for a variety of applications

Metal casing with durable powder spray coating / Cross fan and wheel

Remote control and button control

Multiple width available 900 , 1000 , 1200 , 1500 , 1800 and 2000mm

Cross Flow Door Air Curtains Simple Design - Model X

SAVING 90% ENERGY , SAVING YOUR MONEY

Cyclone Cross Flow Door 1780m³/H 150W Commercial Air Curtain

SPECIFICATION

Cyclone Cross Flow Door 1780m³/H 150W Commercial Air Curtain

Voltage/Frequency:220-240V/50Hz, or 110V/60Hz, 110V/50Hz, 220V/60Hz are all available

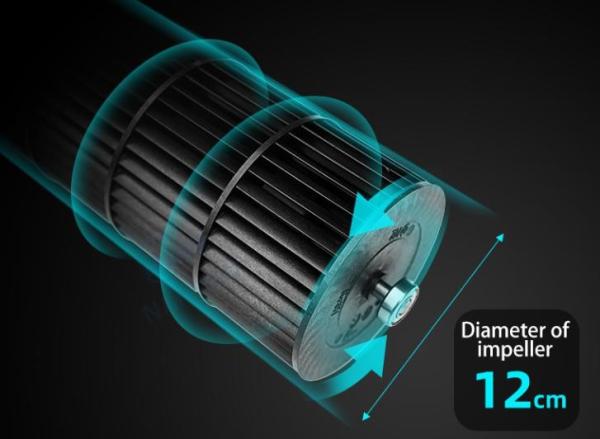

Model Diameter of Impeller Input Power Air
Velocity		 Air
Volume		 Noise Net
Weight		 Gross
Weight		 Unit
Size		 Carton
Size		 Mounting
Height
(mm) (W) (m/s) (m³/h)/CFM (dB) (KG) (KG) (mm) (mm) (m)
FM-1209X-2(Y) 120 150 11 1780/1047 ≤43 11.5 13.0 900×215×200 960×270×250 2.3-3
FM-1210X-2(Y) 120 150 11 1980/1164 ≤43 12.1 13.8 1000×215×200 1060×270×250 2.3-3
FM-1212X-2(Y) 120 180 11 2370/1394 ≤44 14.5 16.5 1200×215×200 1260×270×250 2.3-3
FM-1215X-2(Y) 120 220 11 2970/1747 ≤46 17.2 19.7 1500×215×200 1560×270×250 2.3-3
FM-1218X-2(Y) 120 280 11 3560/2094 ≤50 20.0 23.0 1800×215×200 1860×270×250 2.3-3
FM-1220X-2(Y) 120 320 11 3960/2329 ≤51 21.5 25.0 2000×215×200 2060×270×250 2.3-3

Working Principle Of Air Curtain

Cyclone Cross Flow Door 1780m³/H 150W Commercial Air Curtain

Use for Shopping mall / Hotel / Subway / Metro

Cyclone Cross Flow Door 1780m³/H 150W Commercial Air Curtain

Cyclone Cross Flow Door 1780m³/H 150W Commercial Air Curtain
