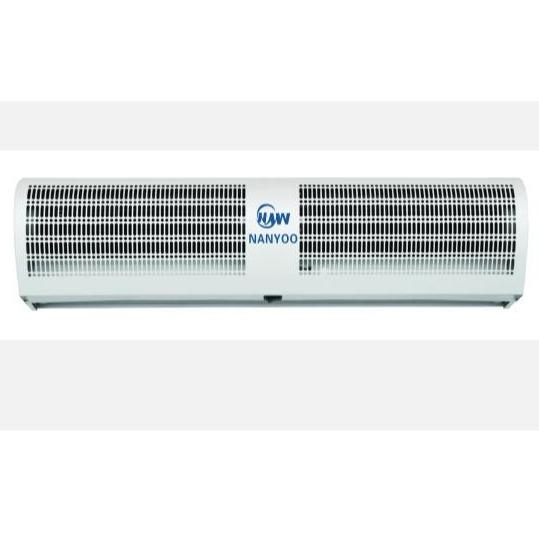

1047CFM Quiet Wind Wheel Cross Flow Commercial Over Door Heaters
1047CFM Quiet Wind Wheel Cross Flow Commercial Over Door Heaters
1047CFM Quiet Wind Wheel Cross Flow Commercial Over Door Heaters
1047CFM Quiet Wind Wheel Cross Flow Commercial Over Door Heaters
Specifications
Brand Name :
NANYOO
Model Number :
FM-1209A
Certification :
CE/CB/CCC
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
15000 pcs per month
Delivery Time :
20-30 work days
Packaging Details :
Carton With Foam Protection
Price :
Negotiated
Type Fan :
Closs Flow Fan
Name :
Closs Flow Door Air Curtains
Mounting :
Door / Wall / Window Mount, Other
Operating voltage :
220-240V / 50Hz or 110V / 60Hz , 110V / 50Hz , 220V / 60Hz
Color :
Silver , Customer Requirements
Input power :
150W
Diameter of Impeller :
120
Size :
0.9m / 1.0m / 1.2m / 1.5m for options
Mounting Height :
2.3-3 m
Application :
Commercial, Airports, Restaurant, Warehouses, Shopping malls
Description

Closs Flow Door Air Curtain Full Metal Shell And Minimal Maintenance Quiet Wind Wheel

Slim all metal housing with esthetic curved design

Full metal shell and minimal maintenance

Easy installation and cleaning

1047CFM Quiet Wind Wheel Cross Flow Commercial Over Door Heaters

PRODUT PARAMETERS

1047CFM Quiet Wind Wheel Cross Flow Commercial Over Door Heaters

Voltage / Frequency 220 - 240V / 50Hz or 110V / 60HZ , 110V / 50HZ , 220V / 60HZ are all available

Model Diameter of Impeller Input Power Air
Velocity		 Air
Volume		 Noise Net
Weight		 Gross
Weight		 Unit Size Carton Size Mounting
Height
(mm) (W) (m/s) (m³/h)/CFM (dB) (KG) (KG) (mm) (mm) (m)
FM-1209A-2(Y) 120 150 11 1780/1047 ≤45 10.2 12.5 900×220×195 940×265×220 2.3-3
FM-1210A-2(Y) 120 150 11 1980/1164 ≤46 12.3 13.8 1000×220×195 1040×265×220 2.3-3
FM-1212A-2(Y) 120 180 11 2370/1394 ≤48 13.7 15.5 1200×220×195 1240×265×220 2.3-3
FM-1215A-2(Y) 120 250 11 2970/1747 ≤49 16.3 18.5 1500×220×195 1540×265×220 2.3-3

Fibergalss material impeller , Good sound insulation effect , Heatproof , Non-flammable , Corrosion resistance

Low noise , Durable / High material , Good design , Excellence performance

1047CFM Quiet Wind Wheel Cross Flow Commercial Over Door Heaters

Use fluid mechanics and engineering technology to optimize and upgrade the impeller , increase valid wind force ,

reduce the wind noise and drag coefficient .

On plane , the air friction between the wing surface and fuselage determines the efficiency of the air plance .

Microstructure use a textured surface made of fiberglass , it can reduces friction resistance .

so that the wind turbine blades have better aerodynamic performance .

and improve the service life of wind turbine blades .

1047CFM Quiet Wind Wheel Cross Flow Commercial Over Door Heaters

Impeller blades around mobility

1047CFM Quiet Wind Wheel Cross Flow Commercial Over Door Heaters

Four advanced technology , it's differed from the others . ( It's unusual )

1. 30 years for motor R & D and manuafacturing , more reliable quality

2. Use fluid mechanics rotor designs , the wind force got stronger and less noise

3. Impeller with glass fiber material , good sound insulation performances

/ insulation / corrosion resistance and durable

4. Dual direction inlet air , wind noise is more lower

1047CFM Quiet Wind Wheel Cross Flow Commercial Over Door Heaters

30 years professional technology focus on motor

Higher efficient , More quiet , Longer service life / Using bigger core diameter , Longer core length ,

Big stator slot dimensions and Thicker copper wire .

Under the same air volume and wind pressure , the motor design with lower power ,

Provides more energy saving and longer service life .

1047CFM Quiet Wind Wheel Cross Flow Commercial Over Door Heaters

A trong wind , Really impede

Mounting Height : 2.3-3

1047CFM Quiet Wind Wheel Cross Flow Commercial Over Door Heaters


INSTALLATION DIAGRAM

Step 1 Remover mounting plate from air curtain fuselage

1047CFM Quiet Wind Wheel Cross Flow Commercial Over Door Heaters

Step 2 If installed on concrete and other hard wallk , need postion the mounting fix screw for

the mounting plate on the wall and then fix with M8 expansion screw , the exposed part of

the expansion screw is ensured to be in 13-15 mm .

1047CFM Quiet Wind Wheel Cross Flow Commercial Over Door Heaters

Step 3 If mounted on a wooden board or soft , use STS tapping screw , Fix the mounting plate ot the wall

1047CFM Quiet Wind Wheel Cross Flow Commercial Over Door Heaters

Step 4 Installation method of glass door

1 / Use strong nail - free glue direct smear to installation , Solidity , Affordable and artistic .

1047CFM Quiet Wind Wheel Cross Flow Commercial Over Door Heaters

2 / Make a strut horizontally for fixting the gusset plate of the air curtain machine

1047CFM Quiet Wind Wheel Cross Flow Commercial Over Door Heaters
