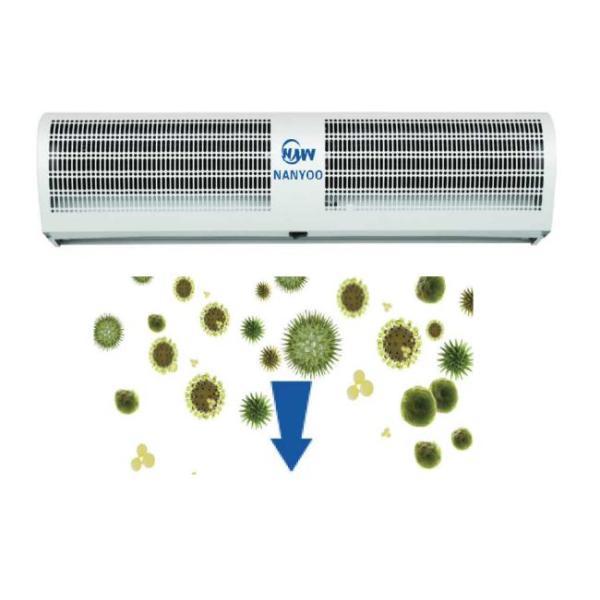

Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install
Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install
Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install
Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install
Specifications
Brand Name :
NANYOO
Model Number :
FM-1215A
Certification :
CE/CB/CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
15000 pcs per month
Delivery Time :
20-30 work days
Packaging Details :
Carton With Foam Protection
Type Fan :
Closs Flow Fan
Name :
Door Air Curtains
Mounting :
Door / Wall / Window Mount or other
Operating voltage :
110V-220V / 50HZ & 60HZ
Application :
Commercial, Shopping Malls, Airports, Restaurant, Warehouses
Color :
White Color
Diameter of Impeller :
120
Input power :
250 W
Size :
0.9m / 1.0m / 1.2m /1.5m
Mounting Height :
2.3-3 m
Description

Closs Flow Door Air Curtains With High Air Flow Suitable For Indoor Hospital / Keeping Fresh Air

Voltage / Frequency 220 - 240V / 50Hz or 110V / 60HZ , 110V / 50HZ , 220V / 60HZ are all available

Model Diameter of Impeller Input Power Air
Velocity		 Air Volume Noise Net
Weight		 Gross
Weight		 Unit Size Carton Size Mounting
Height
(mm) (W) (m/s) (m³/h)/CFM (dB) (KG) (KG) (mm) (mm) (m)
FM-1209A-2(Y) 120 150 11 1780/1047 ≤45 10.2 12.5 900×220×195 940×265×220 2.3-3
FM-1210A-2(Y) 120 150 11 1980/1164 ≤46 12.3 13.8 1000×220×195 1040×265×220 2.3-3
FM-1212A-2(Y) 120 180 11 2370/1394 ≤48 13.7 15.5 1200×220×195 1240×265×220 2.3-3
FM-1215A-2(Y) 120 250 11 2970/1747 ≤49 16.3 18.5 1500×220×195 1540×265×220 2.3-3

INSTALLATION DIAGRAM

Step 1 Remover mounting plate from air curtain fuselage

Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install

Step 2 If installed on concrete and other hard wallk , need postion the mounting fix screw for

the mounting plate on the wall and then fix with M8 expansion screw , the exposed part of

the expansion screw is ensured to be in 13-15 mm .

Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install

Step 3 If mounted on a wooden board or soft , use STS tapping screw , Fix the mounting plate ot the wall

Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install

Step 4 Installation method of glass door

1 / Use strong nail - free glue direct smear to installation , Solidity , Affordable and artistic

2 / Make a strut horizontally for fixting the gusset plate of the air curtain machine

Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install

Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install

Door Air Curtains Working Principle

Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install

PRODUCT PARAMETERS

Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install

Company Profile

Foshan Nanhai Nanyang Electric Appliance& Motor Co.,Ltd (NANYOO)
NANYOO was set up in March 1987. Over more than three decades of development since its founded, it has become a professional scientific and technological enterprise which specializes in the research and development, production and sales of air curtain, ventilator and fresh air ventilation products.
NANYOO has a large-scale processing and testing equipment more than 100 sets. The company has passed the iso9001:2000 international quality system management certification, occupational health and safety management system certification, national compulsory certification CCC certification. Also, we have the international certification like CE, CB, SASO and ROHS environmental protection report.
