EV-600 Electric Refrigeration Unit with 5750W Cooling Capacity IP67 Waterproof and Parallel Flow Condenser for NEV Trucks
EV-600 Electric Refrigeration Unit with 5750W Cooling Capacity IP67 Waterproof and Parallel Flow Condenser for NEV Trucks
EV-600 Electric Refrigeration Unit with 5750W Cooling Capacity IP67 Waterproof and Parallel Flow Condenser for NEV Trucks
EV-600 Electric Refrigeration Unit with 5750W Cooling Capacity IP67 Waterproof and Parallel Flow Condenser for NEV Trucks
Specifications
Application Box Volume :
≤22 m³
Refrigerant Charge :
1.8 KG
Brand Name :
Yinhuasheng/OEM
Model Number :
EV-600
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
TT/LC
Supply Ability :
1000 sets per month
Delivery Time :
Negotiable
Packaging Details :
Negotiable
Cooling Capacity(0℃) :
5750W
Temperature Range :
-25°C To +25°C
Refrigerant :
R404a
Cooling Capacity(-18℃) :
3380W
Description
Electric Refrigeration Units for Cold Chain Transportation Inner Grooved Copper Tube Aluminum Fin Evaporator
EV-600 Full Electric Refrigeration Unit

Powered by the vehicle battery, our EV-600 unit is specially designed for NEV full electric trucks, widely used for reefer truck box size of 22m³.

Huasheng Thermo units are the preferential choice for customers seeking durability and reliability combined with low operational cost and handling charges.

Standard Features
  • Applicable for small and medium sized new energy vehicles
  • High grade (IP67) water-proof and insulation design, AC-DC interlock and four in one design
  • Ultra-slim fiberglass evaporator or Al-alloy evaporator, with big air flow
  • Fully enclosed electric compressor: high efficiency, eco-friendly, not affected by vehicle speed
  • The compressor is inbuilt inside the condenser unit, compact design
  • Multi-functional and LCD controller, precise temperature control, fully display and easy operation, with fault codes and alarms
  • None-interference between charging and unit running, saving charging time and extending the service life of battery
  • HP and LP switch safety protection
  • Standard AC220V standby for parking cooling

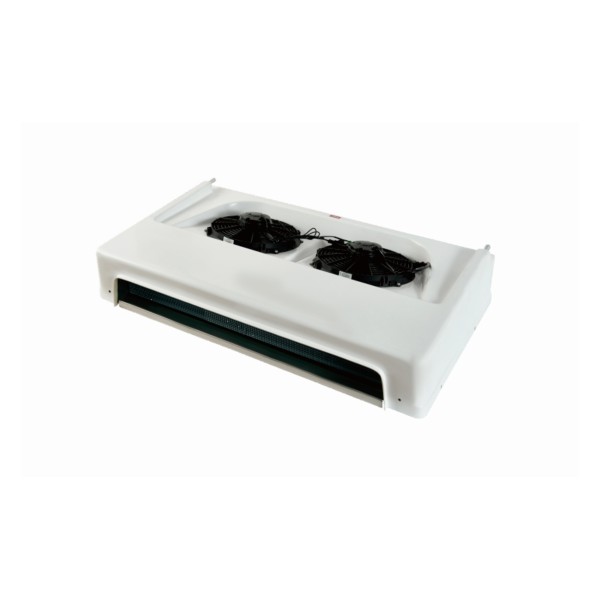

Product Images
EV-600 Electric Refrigeration Unit with 5750W Cooling Capacity IP67 Waterproof and Parallel Flow Condenser for NEV Trucks EV-600 Electric Refrigeration Unit with 5750W Cooling Capacity IP67 Waterproof and Parallel Flow Condenser for NEV Trucks
Technical Parameters
Unit Model EV-600
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤22m³
Cooling Capacity 0℃: 5750 W
-18℃: 3380 W
Compressor Model: /
Lubricating Oil: PAG 68
Evaporator Material: Inner grooved copper tube
Number of Fans: 2 PCS
Condenser Material: Parallel flow condenser
Number of Fans: 2 PCS
High Voltage DC250V-DC450V/DC380V-DC750V
Low Voltage Power DC-DC
Control Voltage DC12V(9-16V)/DC24V(16-32V)
Refrigerant R404a
Refrigerant Charge 1.8 KG
Box Temperature Adjustment Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Weight/Dimensions Evaporator: 24.5 KG
Condenser: <90 KG
Evaporator: 1130×650×220
Condenser: 1500×650×530
Drive Model Full electric driven
