Top Mounted EV-500 Refrigeration Unit with 5100W Cooling Capacity IP67 Waterproof for ≤19m³ Frozen Truck Box
Top Mounted EV-500 Refrigeration Unit with 5100W Cooling Capacity IP67 Waterproof for ≤19m³ Frozen Truck Box
Top Mounted EV-500 Refrigeration Unit with 5100W Cooling Capacity IP67 Waterproof for ≤19m³ Frozen Truck Box
Top Mounted EV-500 Refrigeration Unit with 5100W Cooling Capacity IP67 Waterproof for ≤19m³ Frozen Truck Box
Specifications
Cooling Capacity :
5100W (0℃), 2790W (-18℃)
Refrigerant :
R404a
Lubricating Oil :
PAG 68
Temperature Range :
-25°C To +25°C
Condenser Material :
Parallel Flow Condenser
Evaporator Material :
Inner grooved copper tube & aluminum Fin
Brand Name :
Yinhuasheng/OEM
Model Number :
EV-500
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
TT/LC
Supply Ability :
1000 sets per month
Delivery Time :
Negotiable
Packaging Details :
Negotiable
Description
Top Mounted Refrigeration Units for Frozen Refrigeration Truck, ≤35m³ Box Volume

Top mounted and powered by the vehicle battery, our EV-500 unit is specially designed for NEV full electric trucks. These units are widely used for frozen truck boxes of 10m³ volume. Yinhuasheng units are the preferential choice for customers seeking durability and reliability combined with low operational costs and handling charges.

Standard Features
  • Applicable for small and medium sized new energy vehicles
  • High grade (IP67) water-proof and insulation design, AC-DC interlock and four in one design
  • Ultra-slim fiberglass evaporator or Al-alloy evaporator, with big air flow
  • Fully enclosed electric compressor: high efficiency, eco-friendly, not affected by vehicle speed
  • The compressor is inbuilt inside the condenser unit, compact design
  • Multi-functional LCD controller, precise temperature control, full display and easy operation, with fault codes and alarms
  • No interference between charging and unit running, saving charging time and extending battery service life
  • HP and LP switch safety protection
  • Standard AC220V standby for parking cooling

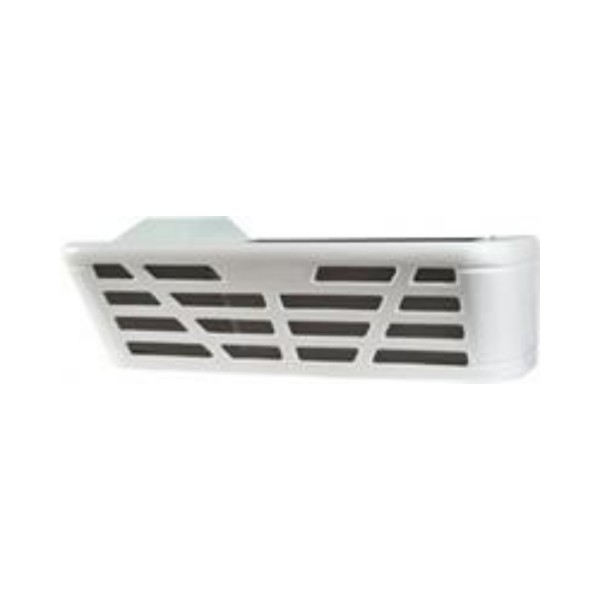

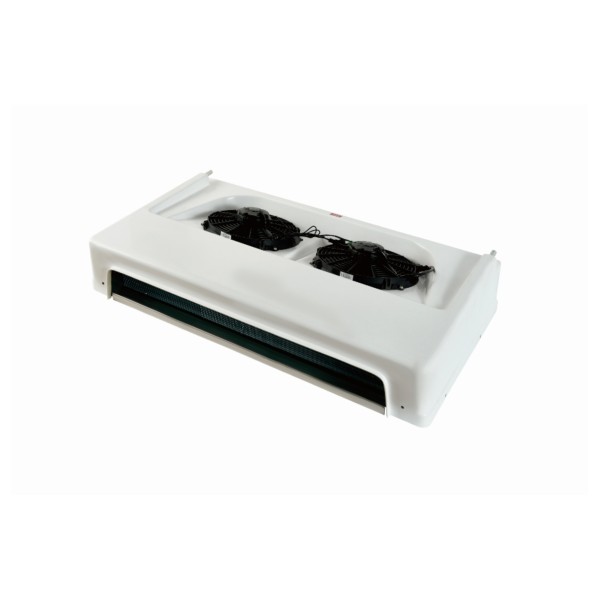

Product Images
Top Mounted EV-500 Refrigeration Unit with 5100W Cooling Capacity IP67 Waterproof for ≤19m³ Frozen Truck Box Top Mounted EV-500 Refrigeration Unit with 5100W Cooling Capacity IP67 Waterproof for ≤19m³ Frozen Truck Box Top Mounted EV-500 Refrigeration Unit with 5100W Cooling Capacity IP67 Waterproof for ≤19m³ Frozen Truck Box
Technical Parameters
Parameter Specification
Unit Model EV-500
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤19m³
Cooling Capacity (0℃) 5100 W
Cooling Capacity (-18℃) 2790 W
Compressor Model DTH356
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Evaporator Fans 2 PCS
Condenser Material Parallel flow condenser
Condenser Fans 2 PCS
High Voltage DC250V-DC450V/DC380V-DC750V
Low Voltage Power DC-DC
Control Voltage DC12V(9-16V)/DC24V(16-32V)
Refrigerant R404a
Refrigerant Charge 1.4 KG
Box Temperature Adjustment Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Evaporator Weight 21 KG
Condenser Weight <80 KG
Evaporator Dimensions 1010×650×220
Condenser Dimensions 1350×580×420
Drive Model Full electric driven
