Roof Top Electric Refrigeration Unit with 5100W Cooling Capacity IP67 Waterproof Design for Energy-Saving NEV Trucks
Roof Top Electric Refrigeration Unit with 5100W Cooling Capacity IP67 Waterproof Design for Energy-Saving NEV Trucks
Roof Top Electric Refrigeration Unit with 5100W Cooling Capacity IP67 Waterproof Design for Energy-Saving NEV Trucks
Roof Top Electric Refrigeration Unit with 5100W Cooling Capacity IP67 Waterproof Design for Energy-Saving NEV Trucks
Specifications
Supply Ability :
1000
Compressor Model :
DTH356
Place of Origin :
CHINA
Cooling Capacity :
5100 W (at 0℃), 2790 W (at -18℃)
Certification :
CE/ISO
Dimensions :
Evaporator: 1010×650×220 (mm), Condenser: 1350×580×420 (mm)
Brand Name :
YINHUASHENG
MOQ :
1PCS
Model Number :
EV-500
Refrigerant :
R404a
Weight :
Evaporator: 21 KG, Condenser: <80 KG
Price :
negotiation
Refrigerant Charge :
2 KG
Payment Terms :
L/C,T/T
Delivery Time :
20
Packaging Details :
WOODEN CASE/CARTOON
Description
EV-500 Roof Top Electric Refrigeration Unit
Roof top mounted and powered by the vehicle battery, our EV-500 unit is specially designed for NEV (New Energy Vehicle) full electric trucks. It is widely applicable for reefer truck boxes with a volume of up to 19m³, ideal for transporting chilled & frozen foods, medical supplies, fruits, vegetables and other items that require strict temperature control.
Yinhuasheng units are the preferred choice for customers who pursue durability, reliability, low operational costs and handling charges, featuring energy-saving and eco-friendly performance that aligns with the green transportation trend.
Standard Features
  • Applicable for small and medium-sized new energy vehicles, perfectly matching the use needs of NEV full electric trucks
  • High-grade (IP67) waterproof and insulation design with AC-DC interlock and four-in-one integrated design
  • Ultra-slim fiberglass or aluminum alloy evaporator with large air flow for rapid, uniform cooling
  • Fully enclosed electric compressor: high efficiency, eco-friendly, energy-saving, and not affected by vehicle speed
  • Compact design with compressor built into condenser unit, saving installation space
  • Multi-functional LCD controller with precise temperature control, data display, and fault code prompts
  • No interference between vehicle charging and unit operation, extending battery life
  • HP (High Pressure) and LP (Low Pressure) switch safety protection
  • Standard AC220V standby function supporting parking cooling
Technical Parameters
Parameter Specification
Unit Model EV-500
Applicable Temperature -20℃ ~ +20℃
Box Volume ≤18m³
Cooling Capacity 5100 W (at 0℃)
2790 W (at -18℃)
Compressor Model: DTH356
Lubricating Oil: PAG 68
Evaporator Material: Inner grooved copper tube
Number of Fans: 2 PCS
Condenser Material: Parallel flow condenser
Number of Fans: 2 PCS
High Voltage DC250V-DC450V / DC380V-DC750V
Low Voltage Power DC-DC
Control Voltage DC12V (9-16V) / DC24V (16-32V)
Refrigerant R404a
Refrigerant Charge 2 KG
Box Temperature Adjustment Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Weight Evaporator: 21 KG
Condenser: <80 KG
Dimensions Evaporator: 1010*650*220 (mm)
Condenser: 1350*580*420 (mm)
Drive Model Full electric driven
Product Images
Roof Top Electric Refrigeration Unit with 5100W Cooling Capacity IP67 Waterproof Design for Energy-Saving NEV Trucks

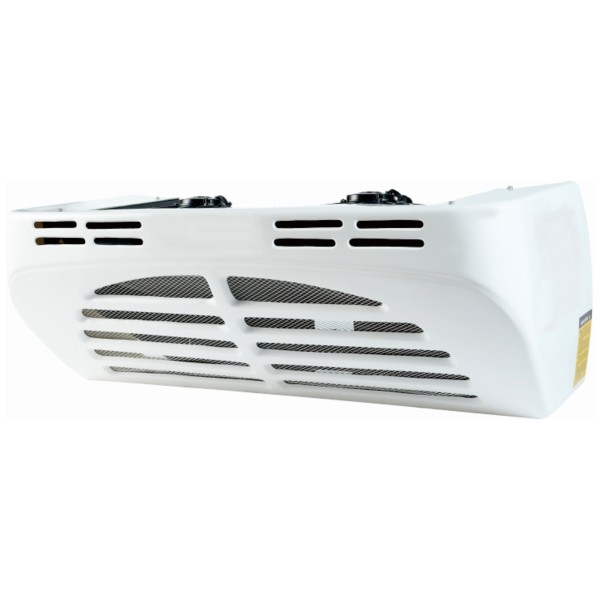

Front View
Roof Top Electric Refrigeration Unit with 5100W Cooling Capacity IP67 Waterproof Design for Energy-Saving NEV Trucks

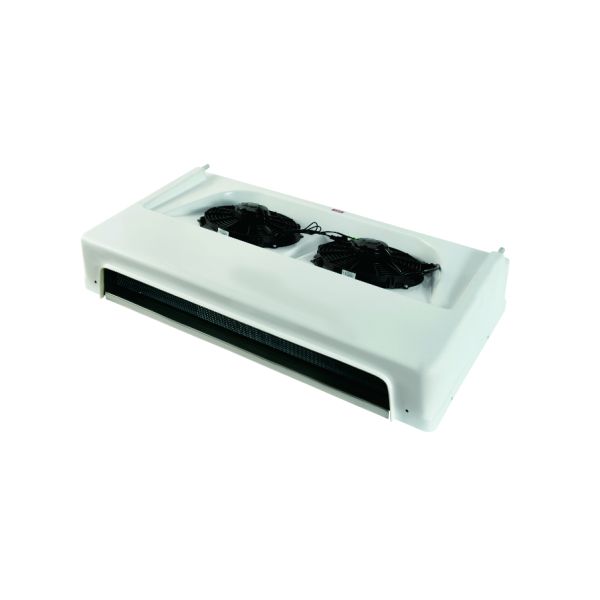

Side View
Installation Drawing
Roof Top Electric Refrigeration Unit with 5100W Cooling Capacity IP67 Waterproof Design for Energy-Saving NEV Trucks
Installation Diagram
