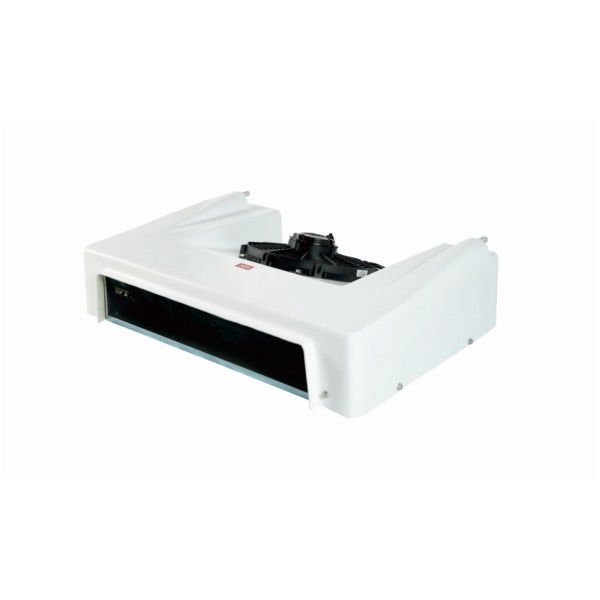

EV300 Electric Truck Refrigeration Unit with 1250W Cooling Capacity, Parallel Flow Condenser, and IP67 Waterproof Design
EV300 Electric Truck Refrigeration Unit with 1250W Cooling Capacity, Parallel Flow Condenser, and IP67 Waterproof Design
EV300 Electric Truck Refrigeration Unit with 1250W Cooling Capacity, Parallel Flow Condenser, and IP67 Waterproof Design
EV300 Electric Truck Refrigeration Unit with 1250W Cooling Capacity, Parallel Flow Condenser, and IP67 Waterproof Design
Specifications
Condenser Material :
Parallel Flow Condenser
Cooling Capacity(0℃) :
2350W
Evaporator Material :
Inner grooved copper tube&aluminum Fin
Cooling Capacity(-18℃) :
1250W
Temperature Range :
-25°C To +25°C
Application Box Volume :
≤10 m³
Brand Name :
Yinhuasheng/OEM
Model Number :
EV300
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
50 sets per month
Delivery Time :
Negotiable
Packaging Details :
Negotiable
Description
Vehicle Refrigeration Unit For Cold Room Storage Full Electric Truck EV300
Product Description

Powered by the vehicle battery, our EV-300 unit is specially designed for NEV full electric trucks. This unit is widely used for reefer truck boxes with a volume of 10m³.

Yinhuasheng units are the preferential choice for customers seeking to combine durability and reliability with low operational costs and handling charges.

Standard Features
  • Applicable for small and medium sized new energy vehicles
  • High grade (IP67) water-proof and insulation design, AC-DC interlock and four in one design
  • Ultra-slim fiberglass evaporator or Al-alloy evaporator, with big air flow
  • Fully enclosed electric compressor: high efficiency, eco-friendly, not affected by vehicle speed
  • The compressor is inbuilt inside the condenser unit, compact design
  • Multi-functional LCD controller, precise temperature control, full display and easy operation, with fault codes and alarms
  • No interference between charging and unit running, saving charging time and extending battery service life
  • HP and LP switch safety protection
  • Standard AC220V standby for parking cooling
Technical Parameters
Unit Model EV-300
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤10m³
Cooling Capacity 0℃: 2350 W
-18℃: 1250 W
Compressor Model DDH356
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Evaporator Fans 1 PCS
Condenser Material Parallel flow condenser
Condenser Fans 1 PCS
High Voltage DC250V-DC450V
Low Voltage Power DC-DC
Control Voltage DC12V(9-16V)
Refrigerant R404a
Refrigerant Charge 0.8 KG
Box Temperature Adjustment Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Weight Evaporator: 13 KG
Condenser: <63 KG
Dimensions Evaporator: 780*580*210
Condenser: 1280*510*300
Drive Model Full electric driven
