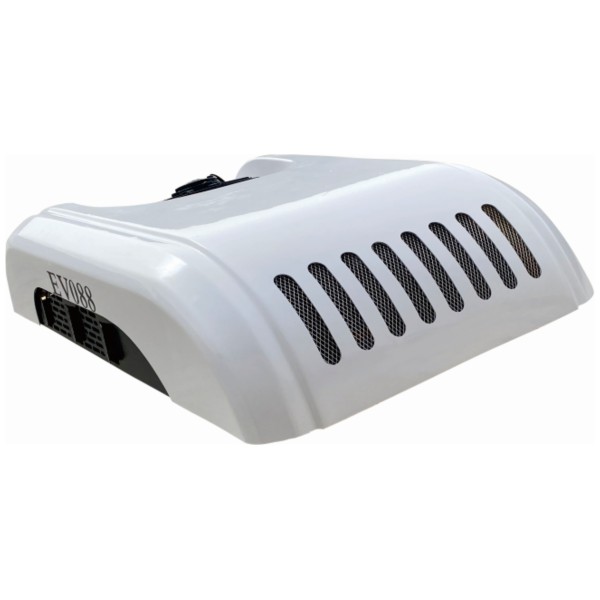

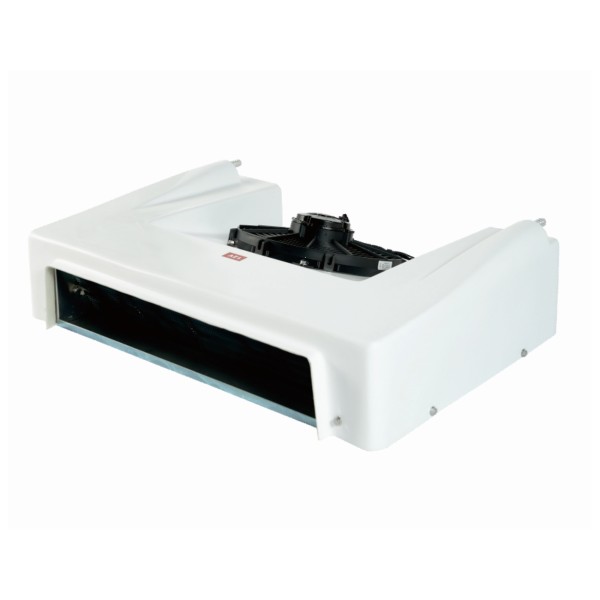

EV-088 Roof Top Refrigeration Unit for Trucks with ≤8 m3 Box Volume 2350W Cooling Capacity and R404a Refrigerant
EV-088 Roof Top Refrigeration Unit for Trucks with ≤8 m3 Box Volume 2350W Cooling Capacity and R404a Refrigerant
EV-088 Roof Top Refrigeration Unit for Trucks with ≤8 m3 Box Volume 2350W Cooling Capacity and R404a Refrigerant
EV-088 Roof Top Refrigeration Unit for Trucks with ≤8 m3 Box Volume 2350W Cooling Capacity and R404a Refrigerant
Specifications
Cooling Capacity :
2350W (0℃), 1230W (-18℃)
Condenser Material :
Parallel flow condenser
Refrigerant Charge :
R404a, 0.8 KG
Temperature Range :
-25°C To +25°C
Evaporator Material :
Inner grooved copper tube
Lubricating Oil :
PAG 68
Brand Name :
Yinhuasheng/OEM
Model Number :
EV-088
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Payment Terms :
TT/LC
Supply Ability :
1000 sets per month
Description
Roof Top Transport Refrigeration Unit For Truck, ≤8 m³ Box Volume EV-088
EV-088 Roof Top Transport Refrigeration Unit For Truck

Roof top, powered by the vehicle battery, our EV-088 unit is specially designed for NEV full electric trucks. Widely used for reefer truck box size of 8m³.

Yinhuasheng units are the preferential choice for customers who want to combine durability and reliability with low operational cost and handling charges.

Product Pictures
EV-088 Roof Top Refrigeration Unit for Trucks with ≤8 m3 Box Volume 2350W Cooling Capacity and R404a Refrigerant EV-088 Roof Top Refrigeration Unit for Trucks with ≤8 m3 Box Volume 2350W Cooling Capacity and R404a Refrigerant EV-088 Roof Top Refrigeration Unit for Trucks with ≤8 m3 Box Volume 2350W Cooling Capacity and R404a Refrigerant
Standard Features
  • Applicable for small and medium sized new energy vehicles
  • High grade (IP67) water-proof and insulation design, AC-DC interlock and four in one design
  • Ultra-slim fiberglass evaporator or Al-alloy evaporator, with big air flow
  • Fully enclosed electric compressor: high efficiency, eco-friendly, not affected by vehicle speed
  • The compressor is inbuilt inside the condenser unit, compact design
  • Multi-functional and LCD controller, precise temperature control, fully display and easy operation, with fault codes and alarms
  • None-interference between charging and unit running, saving charging time and extending the service life of battery
  • HP and LP switch safety protection
  • Standard AC220V standby for parking cooling
Technical Parameters
Parameter Specification
Unit Model EV-088
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤8m³
Cooling Capacity (W) 0℃: 2350 W
-18℃: 1230 W
Compressor Model DDH356
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Evaporator Fans 1 PCS
Condenser Material Parallel flow condenser
Condenser Fans 1 PCS
High Voltage DC250V-DC450V
Low Voltage Power DC-DC
Control Voltage DC12V(9-16V)
Refrigerant R404a
Refrigerant Charge 0.8 KG
Box Temperature Adjustment Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Evaporator Weight 13 KG
Condenser Weight ＜62 KG
Evaporator Dimensions 780×580×210
Condenser Dimensions 1140×770×240
Drive Model Full electric driven
