X-38 Roof Top Transport Refrigeration System with Parallel Flow Condenser and Direct Engine Drive for -25°C To +25°C
X-38 Roof Top Transport Refrigeration System with Parallel Flow Condenser and Direct Engine Drive for -25°C To +25°C
X-38 Roof Top Transport Refrigeration System with Parallel Flow Condenser and Direct Engine Drive for -25°C To +25°C
X-38 Roof Top Transport Refrigeration System with Parallel Flow Condenser and Direct Engine Drive for -25°C To +25°C
Specifications
Brand Name :
Yinhuasheng/OEM
Model Number :
X-38
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
TT/LC
Supply Ability :
1000 sets per month
Delivery Time :
20
Packaging Details :
WOODEN CAGE/CARTOON
Model :
X-38
Condenser :
Parallel Flow Condenser
Temperature Range :
-25°C To +25°C
Cooling Capacity(0℃) :
2530W
Cooling Capacity(-18℃) :
1530W
Application Box Volume :
≤8 m3
Outside Temperature :
30°C To 50 °C
Compressor Brand :
Dayin
Compressor Mode :
5H14
Compressor Displacement :
138 CC
Evaporator :
Inner grooved copper tube&aluminum Fin
Application :
Seafood, vegetable & fruit transport
Description
X-38 Roof Top Transport Refrigeration System Vehicle Freezer System
Product Overview

The X-38 is a direct engine-driven roof top transport refrigeration system designed for 40m³ refrigerated trucks. This reliable system is engineered for transporting chilled and frozen foods, medical supplies, fruits, vegetables, ice cubes, seafood, and other temperature-sensitive cargo.

  • Direct engine drive system
  • Designed for 40m³ refrigerated trucks
  • OEM customization available
  • Low operational and service costs
  • Easy installation process
  • Suitable for long-distance transportation
Key Features
  • Eco-friendly refrigerant R404A (R134a system also available)
  • Corrosion-resistant, high-strength FRP canning material
  • Aluminum fin parallel flow condenser - lightweight, compact with excellent heat exchange
  • Inner grooved copper tube evaporator with large airflow and coil protection
  • Strong, reliable compressor specifically designed for R404a systems
  • Digital display control panel for minimal operation
  • HP and LP switch safety protection
  • Large cooling capacity with reliable performance

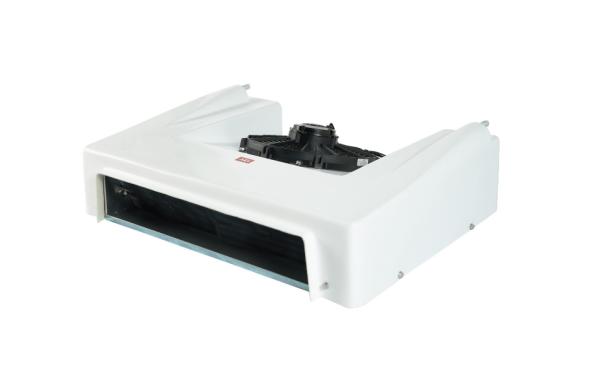

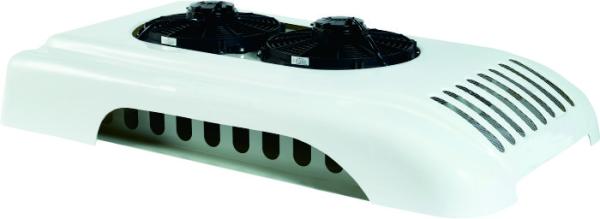

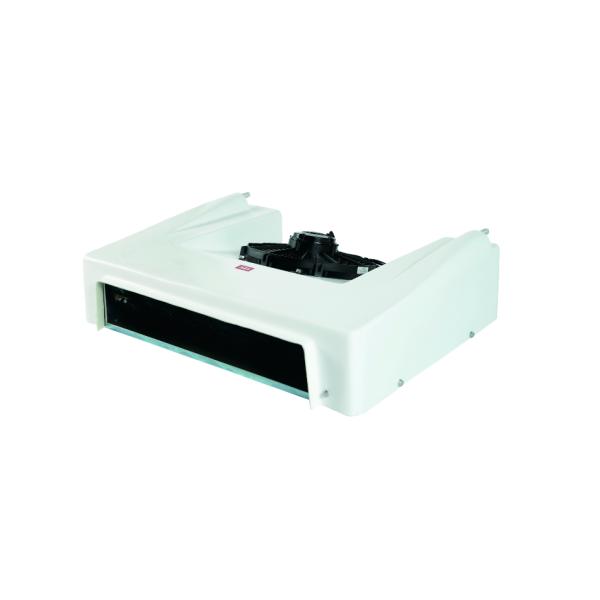

Product Images
X-38 Roof Top Transport Refrigeration System with Parallel Flow Condenser and Direct Engine Drive for -25°C To +25°C X-38 Roof Top Transport Refrigeration System with Parallel Flow Condenser and Direct Engine Drive for -25°C To +25°C
Technical Specifications
Parameter Specification
Unit Model X38
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤8m³
Cooling Capacity (0℃) 2530 W
Cooling Capacity (-18℃) 1530 W
Compressor Model 5H14
Compressor CC 138 CC
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Evaporator Fans 1 PCS
Condenser Material Parallel flow condenser
Condenser Fans 2 PCS
Refrigerant R404a
Refrigerant Charge 1.0KG
Temperature Control Electronic digital display
Safety Protection High and low pressure switch
Defrosting System Hot gas defrost automatically
Evaporator Weight 13 KG
Condenser Weight 27 KG
Evaporator Dimensions 780×580×210 mm
Condenser Dimensions 1150×690×250 mm
Drive Model Non-independent engine driven
