X-38 Van Refrigeration Unit -25°C to +25°C for Cold Chain
X-38 Van Refrigeration Unit -25°C to +25°C for Cold Chain
X-38 Van Refrigeration Unit -25°C to +25°C for Cold Chain
X-38 Van Refrigeration Unit -25°C to +25°C for Cold Chain
Specifications
Brand Name :
Yinhuasheng/OEM
Model Number :
X-38
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
TT/LC
Supply Ability :
1000 sets per month
Delivery Time :
Negotiable
Packaging Details :
Negotiable
Model :
X-38
Condenser :
Parallel Flow Condenser
Temperature Range :
-25°C To +25°C
Cooling Capacity(0℃) :
2530W
Cooling Capacity(-18℃) :
1530W
Application Box Volume :
≤8 m3
Outside Temperature :
30°C To 50 °C
Compressor Brand :
Dayin
Compressor Mode :
5H14
Compressor Displacement :
138 CC
Evaporator :
Inner grooved copper tube&aluminum Fin
Description

Features:

► Eco-friendly refrigerant R404A (R134a system is also avalible).

►Corrosion resistant and high strength FRP canning material.

► Aluminium fin parallel flow condenser, light and compact, with good heat exchanging.

► Inner grooved copper tube,with strong evaporator, with large airflow and good protection to the evaporator coils.

► Strong reliable and stable compressor for R404a systems specially.

► Digital display control panel,minimal operation.

► HP and LP switch safety protection.

► Large cooling capacity, reliable performance.

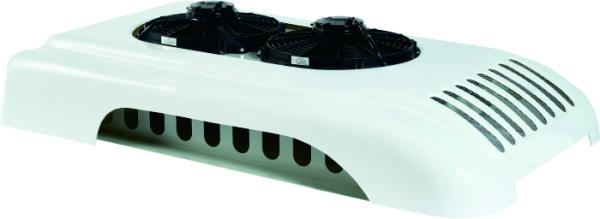

Product Pictures:

X-38 Van Refrigeration Unit -25°C to +25°C for Cold Chain

X-38 Van Refrigeration Unit -25°C to +25°C for Cold Chain

Technical Parameters:

Unit Model X-38
Applicable Temperature(℃) -25℃ ~ +25℃
Box Volume (m³) ≤8m³

Cooling Capacity

(W)

 0℃ 2530 W
-18℃ 1530 W
Compressor Model 5H14
CC 138 CC
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Number of Fans 1 PCS

Condenser

 Material Parallel flow condenser
Number of Fans 2 PCS
Refrigerant R404a
Refrigerant Charge 1.0KG
Box Temperature Adjustment Electronic digital display
Safety Protect High and low pressure switch
Defrosting Hot gas defrost automatically
Weight/Dimensions Evaporator 13 KG
Condenser 27 KG
Evaporator 780*580*210
Condenser 1150*690*250
Drive Model Non-independent engine driven
