Top-mounted Van Refrigeration System with Temperature Range -25°C to +25°C and Cooling Capacity 21500W at 0℃ for Box Volume ≤6 m³
Top-mounted Van Refrigeration System with Temperature Range -25°C to +25°C and Cooling Capacity 21500W at 0℃ for Box Volume ≤6 m³
Top-mounted Van Refrigeration System with Temperature Range -25°C to +25°C and Cooling Capacity 21500W at 0℃ for Box Volume ≤6 m³
Top-mounted Van Refrigeration System with Temperature Range -25°C to +25°C and Cooling Capacity 21500W at 0℃ for Box Volume ≤6 m³
Specifications
Evaporator :
Inner grooved copper tube&aluminum Fin
Outside Temperature :
30°C To 50 °C
Application Box Volume :
≤6 m3
Compressor Brand :
Dayin
Brand Name :
Yinhuasheng/OEM
Model Number :
X-28
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
TT/LC
Supply Ability :
1000 sets per month
Delivery Time :
Negotiable
Packaging Details :
Negotiable
Cooling Capacity(-18℃) :
1130W
Compressor Mode :
5H14
Cooling Capacity(0℃) :
21500W
Compressor Displacement :
138 CC
Temperature Range :
-25°C To +25°C
Model :
X-28
Description

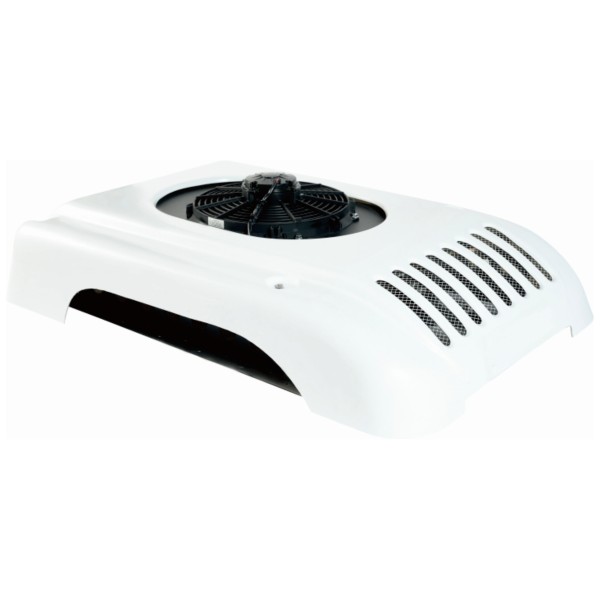

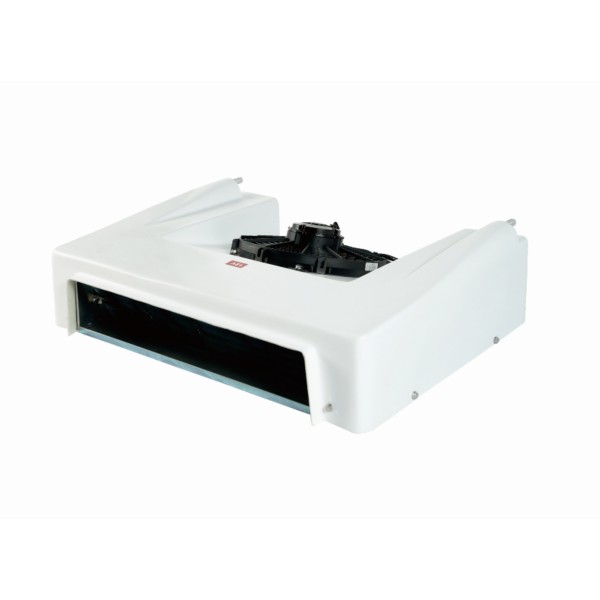

Top-mounted Van Refrigeration System Mobile Freezer Units
X-28 Van Refrigeration System top-mounted units provide reliable cooling for refrigerated trucks and transport vehicles.
Product Introduction
  • Direct engine drive system for efficient operation
  • Designed for 40m³ refrigerated trucks to transport chilled & frozen foods, medical supplies, produce, seafood, and ice
  • OEM customization services available
  • Low operational and maintenance costs
  • Easy installation process
  • Ideal for long-distance transportation
Key Features
  • Eco-friendly refrigerant R404A (R134a system also available)
  • Corrosion-resistant, high-strength FRP canning material
  • Aluminum fin parallel flow condenser - lightweight, compact design with excellent heat exchange
  • Inner grooved copper tube evaporator with large airflow and coil protection
  • Reliable, stable compressor specifically designed for R404a systems
  • User-friendly digital display control panel
  • HP and LP switch safety protection
  • High cooling capacity with dependable performance
Technical Specifications
Unit Model X28
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤6m³
Cooling Capacity (W)
0℃: 2150 W
-18℃: 1130 W
Compressor
Model: 5H14
CC: 138 CC
Lubricating Oil: PAG 68
Evaporator
Material: Inner grooved copper tube
Number of Fans: 1 PCS
Condenser
Material: Parallel flow condenser
Number of Fans: 1 PCS
Refrigerant R404a
Refrigerant Charge 0.8KG
Box Temperature Adjustment Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Weight/Dimensions
Evaporator: 13 KG (780*580*210 mm)
Condenser: 21 KG (960*690*250 mm)
Drive Model Non-independent engine driven

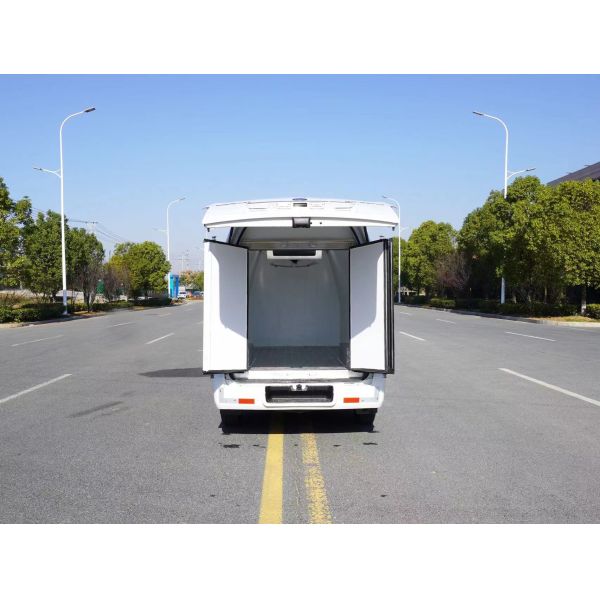

Installation Pictures
Top-mounted Van Refrigeration System with Temperature Range -25°C to +25°C and Cooling Capacity 21500W at 0℃ for Box Volume ≤6 m³ Top-mounted Van Refrigeration System with Temperature Range -25°C to +25°C and Cooling Capacity 21500W at 0℃ for Box Volume ≤6 m³
