EV-088 Roof Top Refrigeration Unit for Pickup Trucks with ≤8 m3 Box Volume 2350W Cooling Capacity and R404a Refrigerant
EV-088 Roof Top Refrigeration Unit for Pickup Trucks with ≤8 m3 Box Volume 2350W Cooling Capacity and R404a Refrigerant
EV-088 Roof Top Refrigeration Unit for Pickup Trucks with ≤8 m3 Box Volume 2350W Cooling Capacity and R404a Refrigerant
EV-088 Roof Top Refrigeration Unit for Pickup Trucks with ≤8 m3 Box Volume 2350W Cooling Capacity and R404a Refrigerant
Specifications
Temperature Range :
-25°C To +25°C
Refrigerant Charge :
R404a
Evaporator :
Inner grooved copper tube&aluminum Fin
Lubricating Oil :
PAG 68
Brand Name :
Yinhuasheng/OEM
Model Number :
EV-088
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Payment Terms :
TT/LC
Supply Ability :
1000 sets per month
Application Box Volume :
≤8 m3
Cooling Capacity(-18℃) :
1230W
Cooling Capacity(0℃) :
2350W
Model :
EV-088
Description

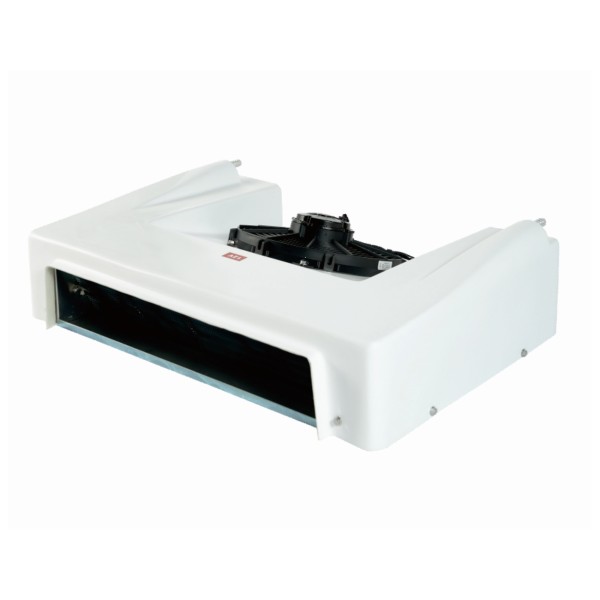

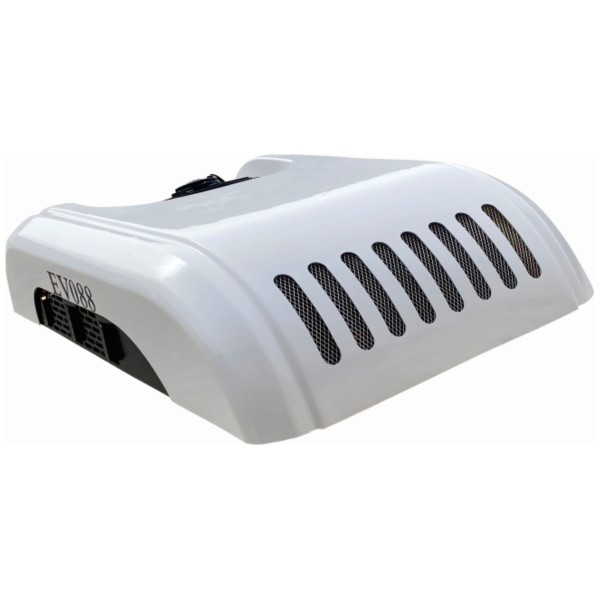

EV-088 Roof Top Transport Refrigeration Unit for Pickup Truck
Designed for NEV full electric trucks with box volumes up to 8m³, the EV-088 roof top refrigeration unit is powered by the vehicle battery system. Yinhuasheng units provide the ideal combination of durability, reliability, and low operational costs for transport refrigeration needs.
Product Images
EV-088 Roof Top Refrigeration Unit for Pickup Trucks with ≤8 m3 Box Volume 2350W Cooling Capacity and R404a Refrigerant EV-088 Roof Top Refrigeration Unit for Pickup Trucks with ≤8 m3 Box Volume 2350W Cooling Capacity and R404a Refrigerant
Standard Features
  • Specifically designed for small and medium sized new energy vehicles
  • High grade IP67 water-proof and insulation design with AC-DC interlock and four-in-one construction
  • Ultra-slim fiberglass or aluminum alloy evaporator with high airflow capacity
  • Fully enclosed electric compressor: high efficiency, eco-friendly operation unaffected by vehicle speed
  • Compact design with compressor integrated inside the condenser unit
  • Multi-functional LCD controller for precise temperature control with full display and easy operation
  • Fault codes and alarm systems for enhanced safety
  • Non-interference between charging and unit operation, saving charging time and extending battery life
  • High pressure and low pressure switch safety protection
  • Standard AC220V standby power for parking cooling operations
Technical Specifications
Parameter Specification
Unit Model EV-088
Operating Temperature Range -25℃ to +25℃
Maximum Box Volume ≤8m³
Cooling Capacity at 0℃ 2350 W
Cooling Capacity at -18℃ 1230 W
Compressor Model DDH356
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Evaporator Fans 1 PC
Condenser Material Parallel flow condenser
Condenser Fans 1 PC
High Voltage Range DC250V-DC450V
Low Voltage Power DC-DC
Control Voltage DC12V (9-16V)
Refrigerant Type R404a
Refrigerant Charge 0.8 KG
Temperature Control Electronic digital display
Safety Protection High and low pressure switch
Defrost System Hot gas defrost automatically
Evaporator Weight 13 KG
Condenser Weight <62 KG
Evaporator Dimensions 780*580*210 mm
Condenser Dimensions 1140*770*240 mm
Drive Model Full electric driven
