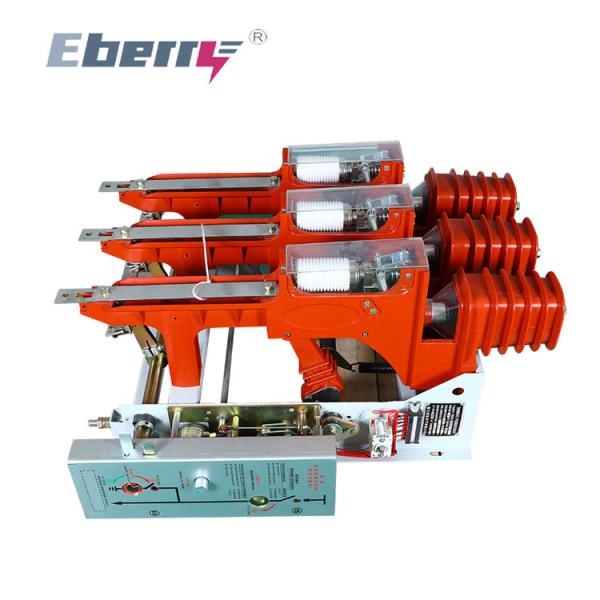

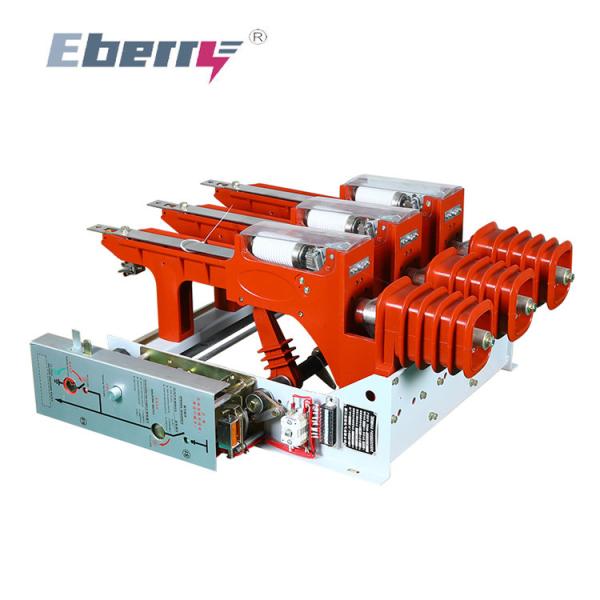

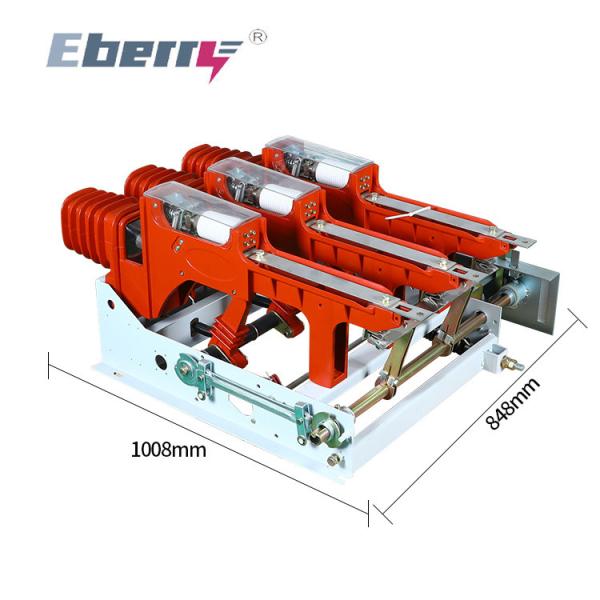

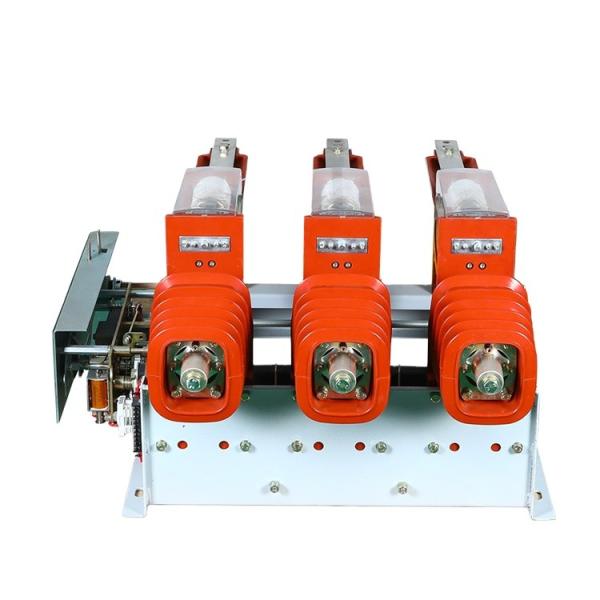

FKN12 Indoor HV Switchgear 12kv Load Break Switch
FKN12 Indoor HV Switchgear 12kv Load Break Switch
FKN12 Indoor HV Switchgear 12kv Load Break Switch
FKN12 Indoor HV Switchgear 12kv Load Break Switch
FKN12 Indoor HV Switchgear 12kv Load Break Switch
FKN12 Indoor HV Switchgear 12kv Load Break Switch
FKN12 Indoor HV Switchgear 12kv Load Break Switch
FKN12 Indoor HV Switchgear 12kv Load Break Switch
FKN12 Indoor HV Switchgear 12kv Load Break Switch
FKN12 Indoor HV Switchgear 12kv Load Break Switch
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Eberry
Model Number :
FZN25-12
Packaging Details :
plywood Carton
Supply Ability :
10000 Unit/Units per Month
Price :
$600.00 - $700.00/pieces
Certification :
CE,CQC,ISO9001
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Western Union, MoneyGram
Delivery Time :
5-10 days
Product name :
Load Break Switch
Rated Voltage :
12KV
Rated current :
630A
Breaking capacity :
6KA
Type :
LBS
Certificate :
ISO9001
Mechanical Life :
10000 Times
Color :
White Red
Rated frequency :
50/60 Hz
Port :
Ningbo-shanghai
Description
Factory direct FKN12 Indoor HV switchgear Vacuum Load Break Switch
Product parameters
NO Item Units Technical parameters
1 Rated voltage KV 12
2 Rated short-duration power frequency withstand voltage 42/48(Interphase, ground/fracture)
3 Rated lightning impulse withstand voltage 42/48(Interphase, ground/fracture)
4 Rated frequency Hz 50
5 Rated current A 630 1250

630 1250 1600

2000 2500 3150

630 1250 1600

2000 2500 3150
6 Rated short-circuit breaking current KA 20/25 31.5 40
7 Rated short-time withstand voltage 20/25 31.5 40
8 Rated short circuit duration S 4
9 Rated peak withstand current KA 50/63 80 100
10 Rated short circuit closing current 50/63 80 100
11 Secondary circuit power frequency withstand voltage (1min) 2000
12 Rated single / back to back capacitor group breaking current A 630/400(40kA:800/400)
13 Rated capacitor bank closing current 12.5 (frequency is not greater than)
14 Mechanical life KA 20000
15 Rated current breaking times (electrical life) 20000
16 Rated short circuit current breaking times times 50(40KA≤30)
17 Dynamic and static contacts allow wear cumulative thickness mm 3
18 Energy storage time s ≤10
19 Contact opening distance mm 11±1
20 Overtravel 3.5±0.5
21 Contact closing bounce time ms ≤2(40KA≤3)
22 Three-phase split/closed period ≤2
23 Average opening speed (contacts are separated by -8mm) m/s 1.2±0.2
24 Main conductive loop resistance 0.6±0.2
25 Main conductive loop resistance μΩ

≤50(630A)≤45(1250A)

≤40 (1600,2000A)≤35 (2500A or more)
26 Rated operation sequence 0-0.3s-Co-180s-Co
Products

FKN12 Indoor HV Switchgear 12kv Load Break SwitchFKN12 Indoor HV Switchgear 12kv Load Break Switch
