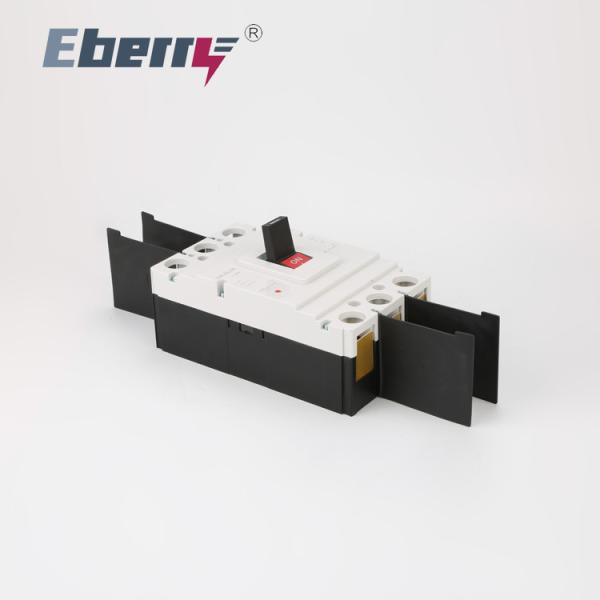

ERM1E 3P 4p 10 Amp Mini Circuit Breaker AC 400V 800V Mccb Mould Case Circuit Breaker
ERM1E 3P 4p 10 Amp Mini Circuit Breaker AC 400V 800V Mccb Mould Case Circuit Breaker
ERM1E 3P 4p 10 Amp Mini Circuit Breaker AC 400V 800V Mccb Mould Case Circuit Breaker
ERM1E 3P 4p 10 Amp Mini Circuit Breaker AC 400V 800V Mccb Mould Case Circuit Breaker
ERM1E 3P 4p 10 Amp Mini Circuit Breaker AC 400V 800V Mccb Mould Case Circuit Breaker
ERM1E 3P 4p 10 Amp Mini Circuit Breaker AC 400V 800V Mccb Mould Case Circuit Breaker
ERM1E 3P 4p 10 Amp Mini Circuit Breaker AC 400V 800V Mccb Mould Case Circuit Breaker
ERM1E 3P 4p 10 Amp Mini Circuit Breaker AC 400V 800V Mccb Mould Case Circuit Breaker
ERM1E 3P 4p 10 Amp Mini Circuit Breaker AC 400V 800V Mccb Mould Case Circuit Breaker
ERM1E 3P 4p 10 Amp Mini Circuit Breaker AC 400V 800V Mccb Mould Case Circuit Breaker
ERM1E 3P 4p 10 Amp Mini Circuit Breaker AC 400V 800V Mccb Mould Case Circuit Breaker
ERM1E 3P 4p 10 Amp Mini Circuit Breaker AC 400V 800V Mccb Mould Case Circuit Breaker
Specifications
Place of Origin :
Zhejiang
Brand Name :
Eberry
Model Number :
ERM1E
Supply Ability :
10000 Unit/Units per Month
Price :
$50.00 - $300.00/pieces
Certification :
CE,CQC,ISO9001
MOQ :
100 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5-10 days
Packaging Details :
Carton
Breaking Capacity :
6KA
Rated Voltage :
AC400V, AC800V
Rated Current :
50 Hz/60 Hz
Poles Number :
4
Product name :
Moulded Case Circuit Breaker
Protection :
Overload and short circuit
Material :
PC/ABS
Type :
Moulded Case
Rated Frequency :
50 Hz/60 Hz
Port :
Ningbo or Shanghai
Description

ERM1E 3P 4p 100a mccb molded case circuit breaker AC 400V 800V Mini Circuit Breakers

• Application Scope

- ERM1 series moulded case circuit breaker ( hereinafter referred to as the circuit breaker ),is suitable for occasional conversion and motor start ( Inm<=630A type and below )under the circuit of AC 50Hz/60Hz,rated insulation voltage of 690V(500V for ERM1-63),rated operational voltage of 400V and below and rated current to 1250A.The circuit breaker has protection function to avoid overload ,short circuit and under-voltage,for assuring the prevention from damage of circuits and power-supply devices . - The circuit breaker can be classified into three types of L (standard),M (moderate high breaking )and H (high breaking )according to the rated limit short circuit breaking capacity ( Icu).It has features of small volume ,high breaking and short flashover ,vibration resistance ,etc . - It can can be installed vertically (vertical assembly )or horizontally (horizontal assembly ).It has isolation function. - The circuit breaker conforms to requirements of IEC 60947-2 and GB14048.2 standards.

• Normal Working Environment

- Altitude<=2000m - Ambient temp: -5°C ~ +40°C - Able to tolerate the influence of salt mist and oil mist - Pollution level: 3 - Maximum gradient is 22.5° - In the medium without explosion danger and the medium has not enough corrosion to metal,to destroy the insulation gas and conductive dust. - In the place without invasion of rain and snow. - Installation category III.
• Protective Characteristics Motion performance of release - For power distribution
Rated operational current of release(A)
Thermal overload release(fiducial temperature 40°C)
Current action of electromagnetic release(A)
Remarks
1.05(cold state) Non-actuation time(h)
1.30In(thermal state)actuation time(h)
10<In<=63
>=1
<1
10In+-20%
Distribution protective type Notes:1250A for 7In+-20%
63<In<=100
>=2
<2
10In+-20%
100<In<=1250
>=2
<2
5In+-20%
7In+-20%
10In+-20%
Notes:Rated current is less than 160A and has no 5 In current magnetic release.
- For motors protection
Rated operational current of release(A)
Thermal overload release(fiducial temperature 40°C)
Current action of magnetic release(A)
1.0In(cold state)Non-actuation time(h)
1.20In(thermal state)actuation time(h)
1.50In(thermal state)actuation time(h)
7.20In(cold state)actuation time(h)
10<=In<=630
>=2
<=2
8min
6S<Tp<=20S
12In+-20%
