Making Machine Vacuum Homogenizer Emulsifying Mixing Machine for Cosmetics
Making Machine Vacuum Homogenizer Emulsifying Mixing Machine for Cosmetics
Specifications
Brand Name :
APVO
Model Number :
RHJ-A300
Certification :
CE ISO
Place of Origin :
Yangzhou, China
MOQ :
1 set
Price :
USD$9800/set
Payment Terms :
T/T
Delivery Time :
40~45 days after advance payment
Packaging Details :
Standard wooden case
Application :
Cosmetics, Pharmaceuticals, Food, Chemicals
Material :
Stainless Steel 304 / SUS316L
Video outgoing-inspection :
Provided
Homogenizing Speed :
0-3000rpm
Function :
mixing and emulsion
Capacity :
100L 150L 200L 300L 500L 1000L
Emulaifier System :
Botton Homogenizer
key selling points :
Long Service Life
Stirrer type :
Forced Stirrer
Feature :
Internal and External Circulation Homogenization
Motor :
Siemens Motor
mixing speed :
0-60r/pm
mixer type :
Agitator
warranty :
1 Year
core components :
Pressure vessel, Pump, Gear, Bearing, Engine, motor, PLC
Voltage :
220V/380V
Description
Making Machine Vacuum Homogenizer Emulsifying Mixing Machine for Cosmetics

Key Functional Advantages

1. High-Efficiency Homogenization for Fine Texture

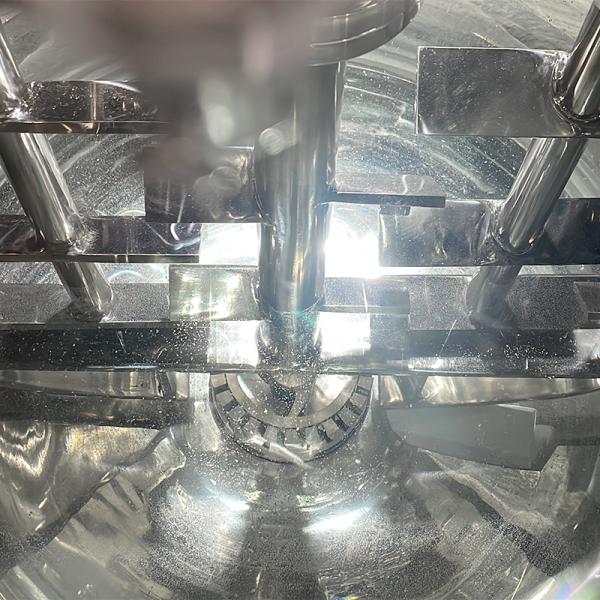

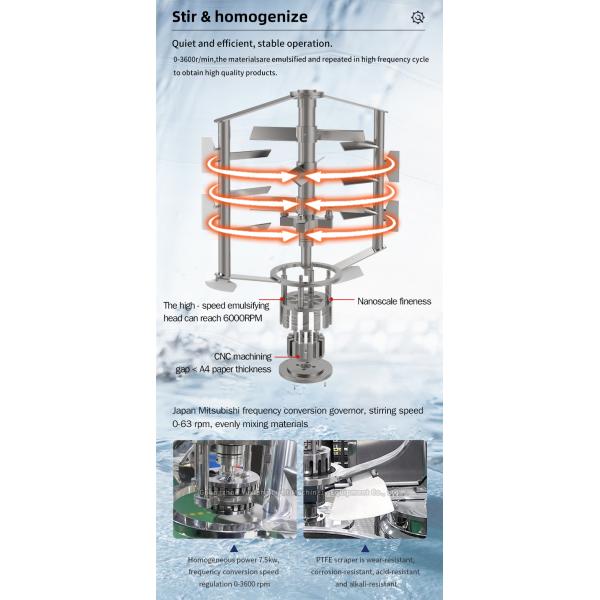

The equipment is equipped with a high-performance rotor-stator homogenizing head, which generates strong mechanical shear force, impact force, and cavitation effect during high-speed rotation. This can effectively break down agglomerated solid particles (such as titanium dioxide, zinc oxide, and active ingredient particles) into fine particles of 0.1-5 micrometers, and fully integrate oil and water phases to form a stable emulsion. For cosmetic products such as foundations and creams, this ensures a smooth, delicate, and non-grainy texture, improving product spreadability and skin-friendliness.

2. Stable Vacuum Deaeration to Extend Shelf Life

The integrated high-quality vacuum system can quickly evacuate the air in the sealed mixing tank, maintaining a stable negative pressure environment throughout the production process. This not only prevents air bubbles from being mixed into the raw materials during stirring and emulsification but also removes existing air bubbles and dissolved oxygen in the materials. For cosmetics, this avoids problems such as surface froth, air holes, and oxidation of active ingredients (such as vitamins, plant extracts, and essential oils), effectively extending the product shelf life and ensuring consistent quality during storage.

3. Precise Temperature Control to Protect Active Ingredients

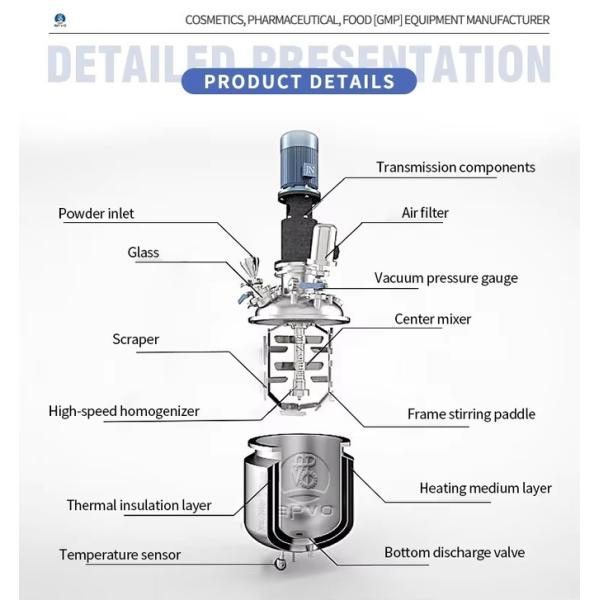

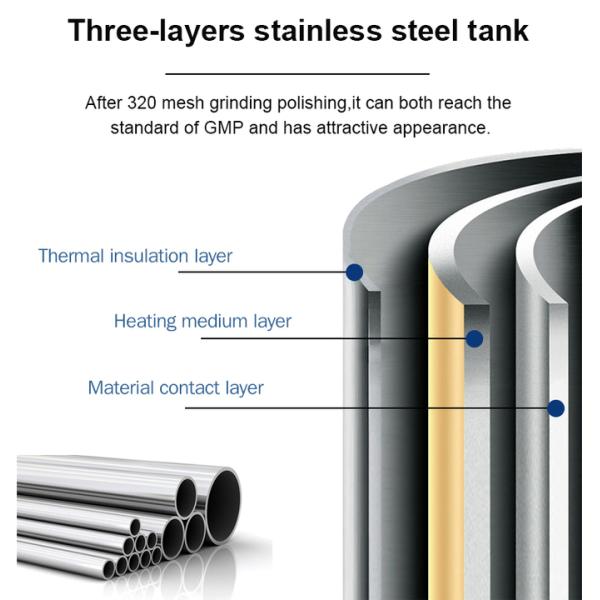

The double-jacket temperature control structure adopts a uniform heat transfer design, which can accurately heat or cool the raw materials to the optimal processing temperature. The temperature control accuracy reaches ±1℃, which can meet the different temperature requirements of various cosmetic production processes. For example, it can precisely control the melting temperature of waxes in lipstick production, the dissolution temperature of thickeners in lotion production, and the low-temperature emulsification temperature of heat-sensitive active ingredients (such as hyaluronic acid and collagen), effectively protecting the activity of functional ingredients and ensuring product efficacy.

4. Dual-Stirring System for Uniform Mixing

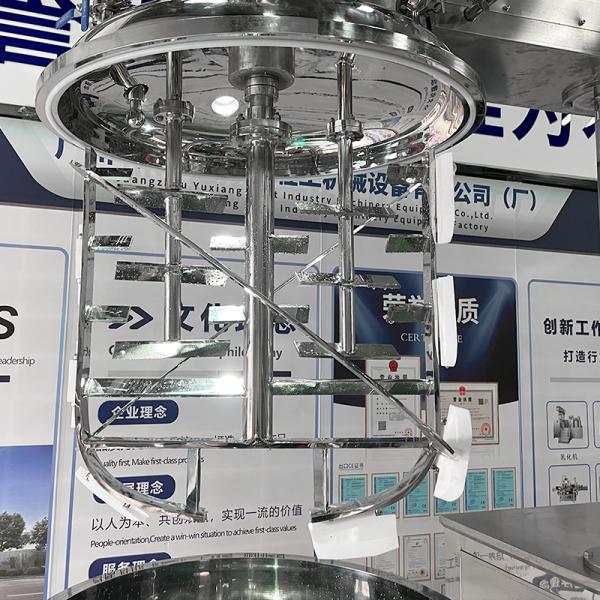

The equipment adopts a dual-stirring design combining an anchor stirrer and a paddle stirrer. The anchor stirrer fits closely with the tank wall, ensuring that the raw materials adhering to the tank wall are fully stirred without dead zones; the paddle stirrer promotes the overall circulation of the materials, making the raw materials in the tank fully contact and mix with the homogenizing head. This dual-stirring system is suitable for materials of different viscosities, from low-viscosity serums and lotions to high-viscosity creams and masks, ensuring uniform dispersion of all ingredients and consistent product quality.

5. Hygienic Design Meeting Cosmetic Industry Standards

All parts in contact with cosmetic raw materials are made of 316L stainless steel, which has excellent corrosion resistance and compatibility with various cosmetic raw materials (including acidic, alkaline, and alcoholic materials). The inner surface of the tank is polished to a roughness of Ra ≤ 0.8 μm, which is smooth and free of dead corners, avoiding raw material residue and cross-contamination. The equipment is equipped with a CIP (Clean-in-Place) cleaning system, which can realize automatic cleaning of the tank and pipelines, reducing manual labor and ensuring compliance with the GMP production standards of the cosmetics industry.

6. Intelligent Control for Easy Operation and Batch Consistency

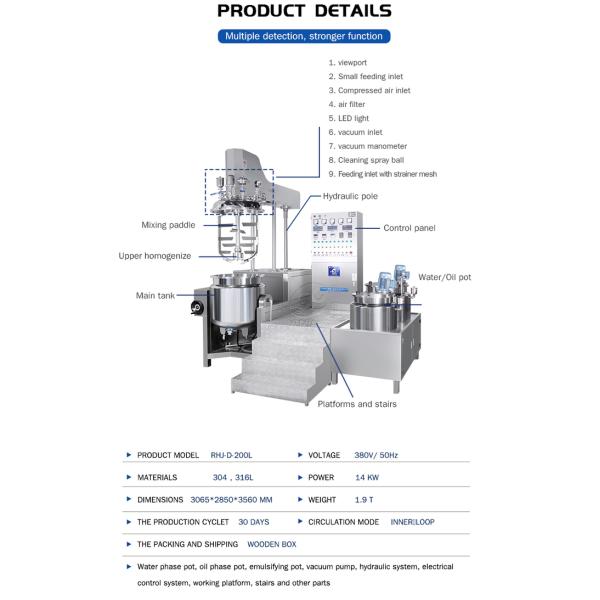

The equipment is equipped with a PLC touchscreen control system, which can intuitively set and adjust parameters such as homogenizing speed, stirring speed, temperature, vacuum level, and processing time. It supports data recording and batch parameter replication, which can effectively avoid quality fluctuations caused by manual operation errors and ensure consistent quality between batches. The touchscreen interface is simple and easy to operate, and operators can complete all operation steps after simple training, reducing the threshold for equipment use.

​

Capacity
Wall scraper mixer
Homogenizer
Water and oil pot
Disperser
50L
1.1kw, 0-65rpm
2.2kw, 0-3600rpm
45/30L
0.37/0.37kw, 1440rpm
100L
1.5kw, 0-65rpm
4kw, 0-3600rpm
90/60L
0.55/0.55kw, 1440rpm
200L
3kw, 0-65rpm
5.5kw, 0-3600rpm
180/120L
0.75/0.75kw, 1440rpm
300L
4kw, 0-65rpm
7.5kw, 0-3600rpm
270/180L
1.1/1.1kw, 1440rpm
500L
5.5kw, 0-65rpm
11kw, 0-3600rpm
450/300L
1.5/1.5kw, 1440rpm

Application Scenarios & Suitable Products

This 500L vacuum emulsifying mixer machine is mainly suitable for medium-scale cosmetic production enterprises, research institutes, and pilot-scale production lines. It has strong compatibility with various emulsified cosmetic products, especially for products with strict requirements for texture, stability, and efficacy. The main applicable products include:

1. Sunscreen Products

Suitable for the production of various types of sunscreen, including physical sunscreen (containing titanium dioxide, zinc oxide), chemical sunscreen (containing avobenzone, octinoxate, etc.), and compound sunscreen. The equipment can effectively disperse inorganic particles and dissolve chemical sunscreen agents, ensuring uniform sun protection effect, no white residue, and stable product performance under high and low temperature conditions.

2. Face Cream & Body Lotion

Applicable to moisturizing cream, anti-aging cream, whitening cream, body lotion, firming lotion, and other skincare products. It can realize stable water-oil emulsification, ensure uniform dispersion of moisturizers, active ingredients, and essential oils, and make the product have a smooth and delicate texture, easy to absorb, and no greasiness.

3. Other Cosmetic Products

Also suitable for the production of facial cleanser (emulsified type), makeup remover cream, hair conditioner, hair mask, and other emulsified cosmetic products. It can meet the different production requirements of products with different viscosities and formulations.
Technical Data
Model
LTRZ-50
LTRZ-100
LTRZ-200
LTRZ-350
Total Volume (L)
70
140
260
450
Feeding Volume kg/batch
30-50
60-100
90-200
170-350
High speed motor (kw)
3
4
4
5.5
Rotation Speed of high speed motor
3000-10000
Rotation Speed of frame type scraper motor
20-60
Oil tank volume (L)
30
60
100
350
Water tank volume (L)
45
85
160
300

Application Scenarios & Suitable Cosmetic Products

This vacuum homogenizer emulsifying mixing machine is highly compatible with various cosmetic products, covering the entire production chain of skincare, makeup, and personal care products. It is suitable for manufacturers of different scales and R&D institutions, providing one-stop processing solutions for product production and formula testing. The main applicable products include:

1. Skincare Products

• Creams: Moisturizing cream, anti-aging cream, whitening cream, repair cream, etc. • Lotions: Hydrating lotion, firming lotion, oil-control lotion, sensitive skin lotion, etc. • Serums: Hyaluronic acid serum, vitamin C serum, retinol serum, essence oil, etc. • Masks: Cream mask, gel mask, sleeping mask, facial mask base liquid, etc.

2. Makeup Products

• Foundations: Liquid foundation, cream foundation, air cushion foundation, concealer, etc. • Lip Products: Lipstick, lip gloss, lip balm, lip liner base, etc. • Eye Products: Eye cream, eye shadow base, mascara, eyeliner gel, etc. • Powders: Loose powder, pressed powder, blush, eyeshadow powder (wet production process), etc.

3. Personal Care Products

• Hair Care: Shampoo, conditioner, hair mask, hair oil, hair styling gel, etc. • Body Care: Body lotion, body cream, body oil, hand cream, foot cream, etc. • Cleansing Products: Facial cleanser (emulsified type), makeup remover cream, makeup remover oil, etc.
Making Machine Vacuum Homogenizer Emulsifying Mixing Machine for Cosmetics
Making Machine Vacuum Homogenizer Emulsifying Mixing Machine for Cosmetics
Making Machine Vacuum Homogenizer Emulsifying Mixing Machine for Cosmetics
Making Machine Vacuum Homogenizer Emulsifying Mixing Machine for Cosmetics
Making Machine Vacuum Homogenizer Emulsifying Mixing Machine for Cosmetics
Making Machine Vacuum Homogenizer Emulsifying Mixing Machine for Cosmetics
Making Machine Vacuum Homogenizer Emulsifying Mixing Machine for Cosmetics
Making Machine Vacuum Homogenizer Emulsifying Mixing Machine for CosmeticsMaking Machine Vacuum Homogenizer Emulsifying Mixing Machine for Cosmetics
Making Machine Vacuum Homogenizer Emulsifying Mixing Machine for Cosmetics
Making Machine Vacuum Homogenizer Emulsifying Mixing Machine for CosmeticsMaking Machine Vacuum Homogenizer Emulsifying Mixing Machine for Cosmetics

Making Machine Vacuum Homogenizer Emulsifying Mixing Machine for Cosmetics

Making Machine Vacuum Homogenizer Emulsifying Mixing Machine for Cosmetics

Making Machine Vacuum Homogenizer Emulsifying Mixing Machine for Cosmetics

Making Machine Vacuum Homogenizer Emulsifying Mixing Machine for Cosmetics

Frequently Asked Questions:
Q1: I am not in China, how can I know your quality?
A: We have a factory with 20 years, we have much experience to help our customers business better.
Q2: How can we guarantee quality?
A: Always a pre-production sample before mass production. Always final Inspection before shipment.
Q3: What can you buy from us?
A: Vacuum Homogeneous Emulsifying Machine/Homogenizing Mixer/Reverse Osmosis Water Treatment Machine/Automatic and Semi Automatic Filling Machine/Perfume Machine
Q4: Why should you buy from us not from other suppliers?
A: APVO company aims to build high quality, high efficiency, high performance equipment, stick to Science-First,People-oriented principles.We have the first-class after-sale service team and gain the customer's recognition.
