UV Curing BMS PCB Conformal Coating

3200 is an amber transparent, solvent-free UV curing conformal coating specially developed for BMS (Battery Management System) PCB, PCB and FPC protection. It offers low hardness, low irritation and low odor for a friendly working environment, good adhesion to PCB substrates, plastics, glass and metal, and can be formulated with blue fluorescence to make coating inspection faster and easier. The cured film provides excellent anti-yellowing, moisture and chemical resistance.

Key Features

• Low hardness, low irritation, low odor: comfortable and safe for operators during coating and curing.
• Good adhesion on multiple substrates: bonds well to PCB laminates, plastics, glass and metal.
• Blue fluorescence: coated areas glow under UV light, making inspection quick and reliable.
• Anti-yellowing, moisture and chemical resistance: keeps boards protected and clear over long service life.
• Fast UV cure: cures at 1500 mJ/cm² for efficient inline production.

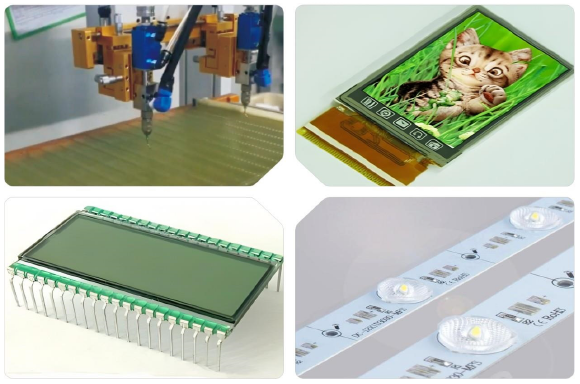

Applications

• Conformal coating for BMS circuit boards in battery packs and energy storage systems.
• Protective coating for PCB and FPC boards in consumer electronics.
• Moisture, dust and chemical protection for automotive and industrial electronics.
• Coating of connectors, sensors and small electronic modules.
• General circuit board protection requiring UV cure and fluorescence inspection.

Technical Datasheet

FAQ

Q1: Which substrates can 3200 coat?
3200 provides good adhesion to PCB laminates, solder mask, plastics, glass and metal surfaces such as copper, aluminum and nickel, covering most BMS and electronic board applications.

Q2: What light source and curing dose are required?
3200 cures with standard UV or LED UV lamps (365-405 nm). A cure dose of 1500 mJ/cm² is recommended, with cure time of a few seconds to tens of seconds depending on lamp power and coating thickness.

Q3: How does the blue fluorescence help inspection?
The coating contains a blue fluorescent indicator that glows under UV light, so operators can quickly and clearly verify full coverage and detect missed areas after curing.

Q4: Is the low viscosity suitable for spray or dip coating?
Yes. With a viscosity of 450 ± 150 mPa.s at 25°C, 3200 flows evenly and is suitable for spray, dip, brush or automated dispensing processes.

Q5: What are the storage conditions and shelf life?
Store in the original sealed container at 8-28°C, away from light and heat sources. Shelf life is 6 months from the date of manufacture.

Q6: What packaging options and samples are available?
3200 is available in 1kg and 5kg bottles, with OEM packaging supported. Free samples can be provided for trial and validation before bulk orders.

Contact us for free samples, technical datasheets and OEM customization.
