UV Curing 3D Composite Board Transfer Printing Adhesive

3318C UV Curing 3D Composite Board Transfer Printing Adhesive is a light yellow transparent UV adhesive for 3D composite board transfer printing. It offers good heat resistance, excellent stretchability (hot stretching up to 200%) and good plating performance. The cured layer stays highly transparent with anti-yellowing properties, and delivers excellent resistance to aging, high temperature and humidity, and high-low temperature cycling.

Technical Specifications

Key Features

• Good heat resistance for demanding 3D forming
• Excellent stretchability, hot stretching up to 200%
• Good plating (metallization) performance
• High transparency after curing with anti-yellowing
• Excellent aging, high-humidity and high-low temperature resistance
• Suitable for PC and PET 3D composite board transfer printing

Applications

• 3D composite board transfer printing
• PC and PET decorative panel transfer
• Curved and formed panel decoration

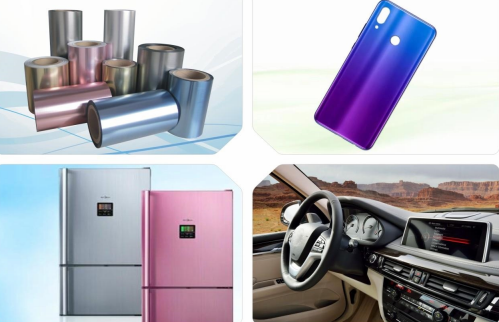

• Automotive and home appliance trim decoration
• Metal-look plated decorative surfaces

Operation Guide

1. Surface preparation: clean the composite board to remove oil, dust and contaminants.
2. Coating: apply the UV transfer adhesive evenly to the film or mold surface.
3. 3D forming: thermoform or hot-stretch the coated film (stretching up to 200%) onto the 3D workpiece.
4. UV curing: expose to UV light at 800 mJ/cm² until fully cured.
5. Plating: apply the metallization / plating process on the cured surface as required.
6. Inspection: verify a uniform, transparent transfer with no bubbles or whitening.

FAQ

Q1: What is the 3318C adhesive mainly used for?
3318C is a UV curing transfer printing adhesive for 3D composite board decoration with heat resistance and high stretchability.

Q2: How much can it stretch?
It offers excellent stretchability with hot stretching up to 200%, ideal for 3D formed panels.

Q3: Does it support metallization?
Yes. It provides good plating performance for metal-look decorative surfaces.

Q4: Is the cured layer clear?
Yes. The cured adhesive is highly transparent and anti-yellowing.

Q5: What hardness and adhesion does it provide?
3318C has a pencil hardness of HB and a 100 grid test adhesion rating of 5B.

Q6: What are the storage conditions and packaging?
Store at 8-28°C in the original sealed container. Shelf life is 12 months. Available in 5kg and 20kg packaging.
