UV Curing Phone Camera Thread Locking Adhesive

3103 UV Curing Phone Camera Thread Locking Adhesive is an amber transparent, fast-curing UV adhesive developed for phone camera module thread locking. It offers fast curing with high strength, good thixotropy without stringing, and excellent extrusion for easy application, together with excellent aging resistance.

Key Features

• Fast curing with high strength
• Good thixotropy without stringing
• Excellent extrusion for easy application
• Excellent aging resistance
• Ideal for phone camera module thread locking
• Reliable fixing of camera module threads

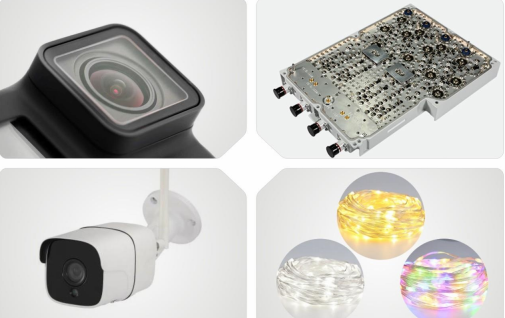

Applications

• Phone camera module thread locking
• Thread fixing of precision optical components
• Bonding and securing of small threaded parts
• Camera module assembly and reinforcement
• Applications requiring high strength and aging resistance

Technical Specifications

FAQ

Q1: What is the 3103 adhesive mainly used for?
3103 is a UV curing phone camera thread locking adhesive used to lock and fix camera module threads in mobile phones.

Q2: How fast does it cure and how strong is it?
3103 cures quickly under UV light at 300 mJ/cm² and provides high strength for reliable thread locking.

Q3: Is it easy to dispense?
Yes. 3103 has good thixotropy without stringing and excellent extrusion, making it easy to apply precisely.

Q4: What is its hardness and Tg?
3103 has a Shore D 78 hardness and a glass transition temperature (Tg) of 68°C.

Q5: What adhesion does it provide?
3103 achieves a 16N adhesion result in the 100 grid test, ensuring reliable fixing of threaded components.

Q6: What are the storage conditions and packaging?
Store at 8-28°C in the original sealed container. Shelf life is 12 months. Available in 30g, 50g and 1kg packaging.
