UV Moisture Dual Cure Adhesive

3290 UV Moisture Dual Cure Adhesive is specially formulated for chip fixing and electronic component reinforcement. It offers low odor, fluorescence detection for easy inspection, moisture curing in shadow areas, good toughness and excellent adhesion to a wide range of substrates. With a dielectric strength of 23 kV/mm, it provides reliable performance in precision electronic assembly.

Key Features

• UV moisture dual-cure system: fast UV cure at 800 mJ/cm² plus moisture cure in shadow areas
• Fluorescence detection for fast and easy adhesive inspection
• Low odor formulation for a more operator-friendly working environment
• Good toughness and excellent adhesion for reliable chip fixing and reinforcement
• High dielectric strength of 23 kV/mm for insulation protection
• Transparent blue appearance for easy visual identification

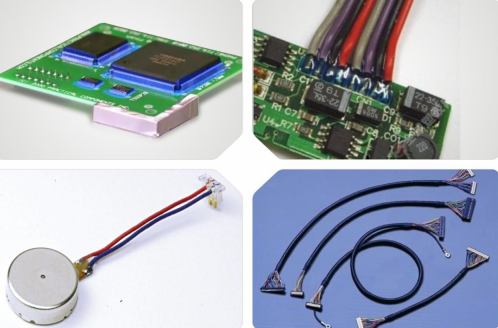

Applications

• Chip fixing (die attach) in electronic assembly
• Electronic component reinforcement and protection
• Applications with shadow areas needing moisture cure
• Bonding requiring fluorescence inspection
• Precision bonding of electronic and structural parts

Technical Specifications

FAQ

Q1: What is the 3290 adhesive mainly used for?
3290 is a UV moisture dual-cure adhesive designed for chip fixing (die attach) and electronic component reinforcement, providing reliable, durable bonding in precision assemblies.

Q2: How does the dual-cure system work?
It cures fast under UV light at 800 mJ/cm², and shadow areas not exposed to light cure gradually through moisture for complete curing.

Q3: How does fluorescence detection help?
The adhesive features fluorescence detection, making applied areas easy to inspect under UV light for accurate coverage and quality control.

Q4: How strong is the adhesion?
3290 provides excellent adhesion and good toughness, ensuring reliable chip fixing and component reinforcement performance.

Q5: Is the odor low during application?
Yes. 3290 features a low odor formulation, providing a more comfortable working environment for operators.

Q6: What are the storage conditions?
Store at 8-28°C in the original sealed container. Shelf life is 12 months. Available in 50g and 300g packaging.
