3789 / 3789L Galvanized Sheet Fixing UV Adhesive for LCD Metal Backplate

3789 and 3789L are high viscosity UV curing adhesives specially formulated for galvanized sheet fixing and LCD metal backplate bonding. With excellent adhesion to glass and metal, outstanding alkali resistance and corrosion resistance, they deliver reliable fixation in demanding electronic assembly applications.

Key Features

• High viscosity grades (7500±1000 / 11500±2000 mPa·s) for gap filling and stable positioning
• Excellent adhesion to glass and metal surfaces
• Outstanding alkali resistance and corrosion resistance for long service life
• Fast UV curing at 600 mJ/cm² (3789L) and 800 mJ/cm² (3789)
• High dielectric strength (22-23 kV/mm) for electronic applications
• Light green / transparent appearance for easy inspection

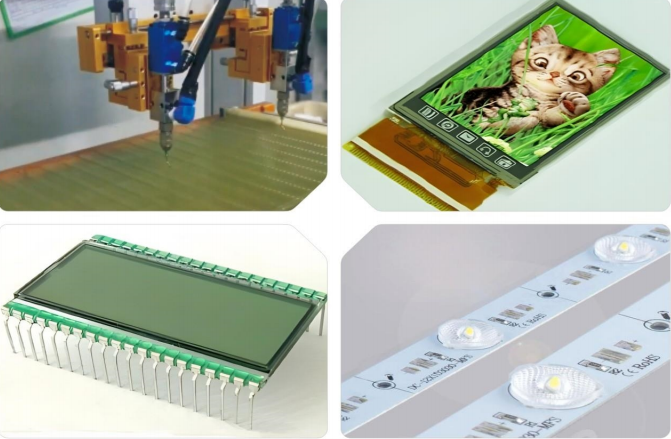

Applications

• LCD metal backplate fixing in display modules
• Galvanized sheet fixing
• Glass to metal bonding
• Electronic device assembly and sealing
• Other precision industrial bonding applications

Technical Specifications

Packaging & Storage

Standard packaging: 250 ml and 1 kg. Store at 8-28°C in a cool, dry place away from direct sunlight. Contact us for OEM formulation, custom viscosity and packaging options.

FAQ

Q1: What is the difference between 3789 and 3789L?

A: 3789L is a lower viscosity grade (7500±1000 mPa·s) with faster curing at 600 mJ/cm², while 3789 offers higher viscosity (11500±2000 mPa·s) and cures at 800 mJ/cm². Both provide excellent adhesion to glass and metal.

Q2: What surfaces can this adhesive bond?

A: It is specially designed for galvanized sheets, LCD metal backplates, glass panels and other metal surfaces, delivering excellent adhesion and corrosion resistance.

Q3: Is the adhesive resistant to alkali and corrosion?

A: Yes. The formulation provides outstanding alkali resistance and corrosion resistance, ensuring stable long-term performance in demanding environments.

Q4: What are the storage requirements and shelf life?

A: Shelf life is 12 months when stored at 8-28°C in a cool, dry place away from direct sunlight. Keep the container tightly sealed after use.

Q5: What packaging options are available?

A: Standard packaging is 250 ml and 1 kg. Custom packaging such as syringes, bottles and other sizes can be provided upon request for OEM orders.
