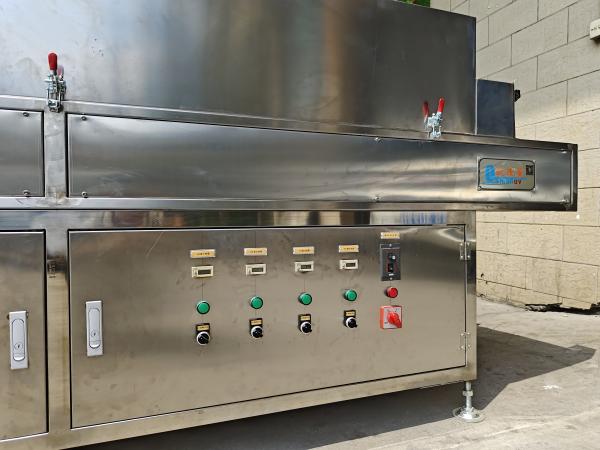

Modular Conveyor-Mounted UV-C Sterilization Module for Transparent Food Packaging Lines
Modular Conveyor-Mounted UV-C Sterilization Module for Transparent Food Packaging Lines
Modular Conveyor-Mounted UV-C Sterilization Module for Transparent Food Packaging Lines
Modular Conveyor-Mounted UV-C Sterilization Module for Transparent Food Packaging Lines
Modular Conveyor-Mounted UV-C Sterilization Module for Transparent Food Packaging Lines
Modular Conveyor-Mounted UV-C Sterilization Module for Transparent Food Packaging Lines
Modular Conveyor-Mounted UV-C Sterilization Module for Transparent Food Packaging Lines
Modular Conveyor-Mounted UV-C Sterilization Module for Transparent Food Packaging Lines
Modular Conveyor-Mounted UV-C Sterilization Module for Transparent Food Packaging Lines
Modular Conveyor-Mounted UV-C Sterilization Module for Transparent Food Packaging Lines
Modular Conveyor-Mounted UV-C Sterilization Module for Transparent Food Packaging Lines
Modular Conveyor-Mounted UV-C Sterilization Module for Transparent Food Packaging Lines
Specifications
Brand Name :
OSMANUV
Model Number :
OSM-SJ-800
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Negotiation
Delivery Time :
30~40 Days
Packaging Details :
Wooden Box
Warranty :
1 year
Wavelength :
365nm
Drying Way :
Ultraviolet - curable
Feature :
Energy saving
Lamplife :
8000 hours
Rubber Diameter :
200mm
Controlmode :
Digital timer
Coolingsystem :
Built-in fan cooling
Description
Modular Conveyor-Mounted UV-C Sterilization Module for Transparent Food Packaging Lines
Product Overview
The Modular Conveyor-Mounted UV-C Sterilization Module is an easy-to-install, space-saving UV disinfection solution specifically developed for packaging lines where physical space is constrained but microbial control on transparent packaging surfaces is required.
Production Line Composition
  • Modular UV Lamp Housing: Standalone, bolt-on lamp head constructed of 304 stainless steel with integrated high-reflectivity internal coating
  • Height-Adjustable Mounting Frame: Stainless steel stand or side-mount brackets for overhead, side, or under-conveyor positioning
  • Quick-Change UV-C Lamp Cartridge: Tool-free lamp replacement system with pre-aligned quartz sleeve and reflector
  • External Control Box: Separate IP65-rated enclosure housing electronic ballasts, PLC, touchscreen HMI, and safety interlock controller
  • Shock-Absorbing Conveyor Mount System: Adjustable clamp system for attachment to existing conveyor side rails without modification to original conveyor
  • Safety Light Curtains (Optional): IR perimeter guarding to automatically shut down UV output when operators approach
  • Remote Start/Stop Interface: Dry contact connections for integration with existing line control systems
  • Compact HMI Mounting Arm: Swing-arm bracket for operator interface positioning at convenient working height
Technical Specifications
Parameter Specification / Description Customization Option
Model Designation OSM-UV-MOD Series (fully customizable) ✓
Module Type Single bank, dual bank, or multi-bank (top, bottom, side, or combination) ✓
Effective Coverage Width per Module 200 - 800 mm (modular; multiple modules side-by-side for wider conveyors) ✓
Height Clearance Adjustability 50 - 300 mm (quick-adjust screw mechanism) ✓
Number of UV-C Lamps per Module 1 - 4 lamps (standard 1-2 lamps per bank) ✓
UV Light Source Low-pressure mercury lamp (253.7nm) -- FDA 21 CFR 179.39 compliant; optional UVC-LED array (265nm/277nm) ✓
UV-C Output per Lamp 36 - 72 W UV-C (mercury); 1 - 5 W per LED chip (UVC-LED) ✓
UV Dose at Product Plane 0 - 150+ mJ/cm² (adjustable via lamp height + power + conveyor speed) --
Conveyor Speed Compatibility 0 - 25 m/min (speed sensor input for dose‑per‑speed control) ✓
Microbial Reduction 3 - 5 log (99.9% - 99.999%) achievable per module (multiple modules in series for higher reduction) ✓
Lamp Lifetime 9,000 - 16,000 hours (mercury); >20,000 hours (UVC-LED) --
Cooling Method Passive convection + forced air (integrated fan) ✓
Power Supply 110V / 220V / 400V, 50Hz/60Hz (factory configurable) ✓
Installed Power per Module 0.5 - 3.0 kW (depending on lamp count and type) ✓
Safety Features Safety interlock, lamp failure detection, optional light curtains ✓
Enclosure Material 304 stainless steel (standard); 316L (for corrosive/wash-down environments) ✓
Ingress Protection (IP Rating) IP65 (control box), IP66 (lamp housing) -- IP69K wash-down option ✓
Control System Micro PLC with 7″ color HMI, recipe storage, data logging ✓
Mounting Type Clamp-on or bolt-on to existing conveyor side rails; no conveyor modification required ✓
Module Dimensions (L×W×H) Customizable; typical single-bank module: 600×300×150 mm ✓
Certifications CE certified, FDA 21 CFR 179.39 compliance (optional UL) ✓
Applications
Ideal for retrofitting UV sterilization capability to existing packaging lines without major capital investment:
  • Dairy Cup and Tray Filling Lines: Installation directly over cup denester infeed or tray conveyor to sterilize cup/tray interiors before yogurt, pudding, cheese, or sour cream filling.
  • Beverage Bottle and Cap Lines: Mounting over bottle rinser infeed, cap chute, or capper infeed to sterilize bottle necks and closures prior to capping.
  • Ready Meal Tray Lines: Single or dual modules over tray conveyor to sterilize microwaveable tray cavities before deposition of chilled or frozen ready meals.
  • Fresh Produce Clamshell Lines: Overhead mounting on clamshell indexing conveyor to sterilize berry punnets and vented trays before filling with berries, cherry tomatoes, or other fresh produce.
  • Meat and Poultry Tray Lines: Sterilization of foam trays or plastic trays before placement of fresh meat, poultry, or seafood portions.
  • Pharmaceutical Blister Lines: Pre-fill sterilization of tablet blister cavities and lidding foil surfaces without generating heat or moisture.
  • Flow Pack and Pouch Lines: Surface sterilization of film web prior to forming or after sealing to eliminate external contamination on ready-to-eat pouch surfaces.
  • Bakery Packaging Lines: Mold prevention on bread bags, cookie trays, and cracker flow packs through UV treatment prior to product contact.
Customization Options
The modular UV sterilization system is highly customizable for specific packaging dimensions, line speeds, available mounting space, and budget constraints.
  • Module Configuration: Choose from single-bank (top-only or bottom-only), dual-bank (top+bottom for double-sided treatment), L‑shaped (top+side), or multi-module arrays for full 360° coverage.
  • Effective Width: Each module covers 200-800mm. For wider conveyors, multiple modules can be mounted side-by-side or staggered to achieve full-width coverage without gaps.
  • Mounting Style: Clamp-on to existing side rails (no conveyor modification), bolt-on to conveyor frame for more permanent attachment, overhead suspension from facility structure for elevated conveyors, or portable floor stand with locking casters for temporary or mobile applications.
  • Lamp Type: Mercury lamps (standard low-cost or high-output amalgam) or UVC-LED (mercury-free, instant-on, longer life, higher initial cost). Pulsed UV lamp option available for ultra-high peak intensity requirements.
  • Safety Features: Basic interlock and manual reset; advanced light curtains with automatic shutdown on operator approach; remote E‑stop connection to facility safety system.
  • Integration Level: Standalone (operator start/stop) with touchscreen control; PLC-integrated with remote start/stop and status feedback to line controller; fully integrated with line speed tracking and dose-per-speed adjustment via encoder input.
  • Enclosure Material: 304 stainless steel for standard dry environments; 316L for high-moisture, high-salt, or corrosive chemical wash-down areas.
  • Special Voltages: Factory-configured to match your facility voltage (110V, 208V, 220V, 400V, 480V, 50Hz or 60Hz) -- no step-up/down transformers required.
  • Control Box Placement: Wall‑mount (saves floor space), floor‑stand (flexible positioning), or integrated into existing control cabinet.
  • Light-Proof Tunnel Extension: Add inlet/outlet light curtains or baffle tunnels for open-conveyor applications where full enclosure is not possible.
Key Features
  • Bolt-On Installation, Zero Conveyor Modification: Clamp-on mounting brackets attach to existing conveyor side rails in under one hour, requiring no drilling, welding, or permanent alteration to conveyor.
  • Compact, Space‑Saving Design: Module occupies zero additional floor space beyond existing conveyor. Control box can be wall-mounted out of the way, keeping walkways clear and plant layout unchanged.
  • Tool‑Free Quick Lamp Change: Patented cartridge‑style lamp holder allows lamp replacement in under 90 seconds without tools.
  • Adjustable Height Positioning: Quick-adjust screw mechanism allows raising or lowering of lamp head to control UV intensity at product surface.
  • No Additional Conveyor Motor Requirement: No need for separate synchronization or additional conveyor drive -- unit simply treats products moving on existing conveyor at existing speed.
  • Scalable by Adding Modules: Start with a single module and add additional modules as production volume increases or as new packaging lines require coverage.
  • Chemical‑Free, Residue‑Free Sterilization: Eliminates chemical sanitizers, their costs and storage hazards, water consumption, and wastewater treatment.
  • Cold Process, No Packaging Heat Damage: Non‑thermal treatment does not affect heat‑sensitive packaging materials including thin films, foam trays, and coated paperboards.
  • FDA 21 CFR 179.39 Compliant: Regulatory compliant for direct food contact surfaces when applied prior to filling.
  • Low Maintenance and Low Operating Cost: Minimal energy consumption, long lamp life, and no chemical consumables. Annual operating cost typically <1% of equivalent chemical sanitizer program cost.
  • Independent of Existing Line Control: Operates as a standalone safety system with its own HMI or integrates with existing line PLC for remote monitoring and recipe management.
  • Rugged Stainless Steel Construction: 304 stainless steel enclosures with closed-cell silicone gaskets, protecting internal electronics from moisture and dust ingress. IP66-rated lamp housing suitable for food plant wash-down environments.
Support and Services
  • On-Site Conveyor Assessment & Feasibility Study: Our technicians will visit your facility to assess the conveyor, measure available clearance, and determine optimal module placement for maximum microbial reduction.
  • Installation & Commissioning: Complete installation service including mounting bracket fitting, electrical connection, safety interlock installation, and system calibration -- typically completed in a single shift.
  • Operator & Maintenance Training: One‑day on‑site training covering lamp replacement, cleaning procedures, safety interlock testing, and fault diagnosis.
  • Electrical Safety Pre‑Installation Check: Verification of electrical supply requirements, grounding integrity, and safety interlock compatibility with existing machine guarding systems.
  • Remote Technical Support: Phone, email, and video‑assisted troubleshooting with standard 4‑hour response time.
  • Preventive Maintenance Schedules: Bi‑annual or quarterly lamp output calibration, quartz sleeve cleaning, ballast electrical testing, and drive system checks.
  • Spare Parts Availability: Immediate shipping of genuine spare lamps, quartz sleeves, ballasts, and safety switches.
  • Validation Support: Assistance with UV dose mapping, bio-indicator validation studies, and HACCP/FSMA documentation.
Packing and Shipping
  • Packaging: Complete module packed in custom foam‑lined carton; control box in separate corrosion‑protected carton; lamps in individual shock‑protected tubes. All export-packed in double‑walled corrugated cartons or plywood crates.
  • Shipping Options: Worldwide express courier (3 - 7 days), air freight for urgent deliveries, sea freight (LCL/container) for full line orders.
  • Delivery Time: 14 - 21 days for standard single‑module configurations; 21 - 35 days for multiple or customized modules.
  • Port of Loading/Shipping Options: Door‑to‑door express for most regions; sea freight from major Chinese ports.
  • Documentation: Commercial invoice, packing list, CE certificate of conformity, FDA 21 CFR 179.39 compliance letter.
Frequently Asked Questions
Q: How do I know if this module can fit on my existing conveyor?
A: Our application engineering team provides free assessment. We require only three measurements: conveyor belt/frame width, height clearance above conveyor, and distance from side rail to nearest obstruction. For complex installations, we offer site visits or video-call assisted measurements.
Q: Can I install the module myself, or is professional installation required?
A: The module is designed for straightforward DIY installation for qualified electrical and maintenance staff. We provide a step-by-step installation guide. However, our paid installation service ensures full safety verification, UV intensity mapping, and control system integration.
Q: How many lamp modules do I need for my conveyor width?
A: Each module covers 200-800mm of effective width. For a 600mm‑wide conveyor, one module typically suffices. For wider conveyors, multiple modules can be mounted side-by-side. Our free feasibility assessment will specify exact module count.
Q: Will the UV light damage my conveyor belt?
A: Most standard conveyor belts (PVC, PU, stainless steel mesh, modular plastic) have very high UV-C resistance. However, rubber belts and some specialized belts may experience surface degradation. We include belt material compatibility as part of our pre-installation assessment and provide shield plates for sensitive belts.
Q: What is the payback period for a modular UV system compared to chemical sanitizers?
A: ROI is typically achieved in 6-12 months due to immediate elimination of chemical purchase costs, elimination of chemical storage and handling requirements, elimination of rinse water and wastewater treatment costs, and reduction in spoilage-related product returns. The low capital cost of the modular system and minimal installation expense further shorten payback periods.
Q: How often do lamps need to be replaced?
A: High‑output amalgam lamps reach 12,000-16,000 hours (3-4 years of continuous operation on 12-hour daily shifts). The HMI displays remaining lamp life hours and triggers a replacement reminder. We recommend stocking a full set of replacement lamps to minimize downtime for lamp change.
