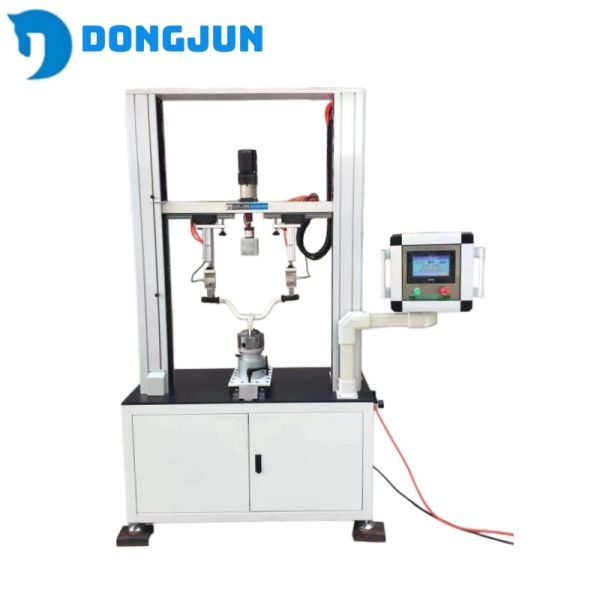

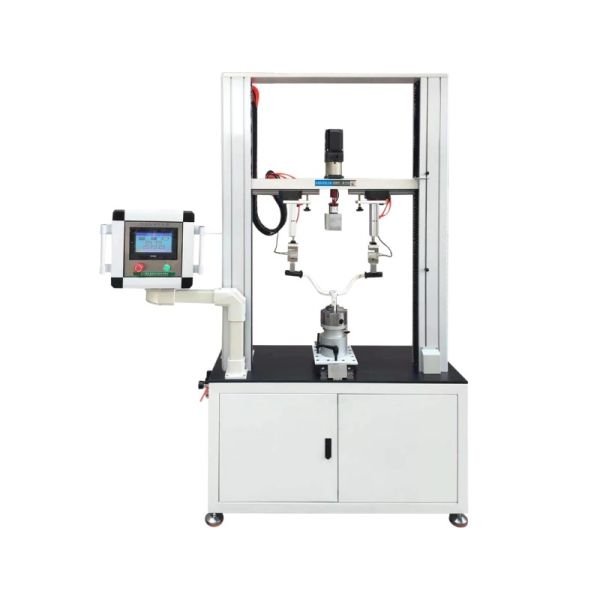

Children's Bicycle Handlebar Fatigue Testing Equipment
Children's Bicycle Handlebar Fatigue Testing Equipment
Children's Bicycle Handlebar Fatigue Testing Equipment
Children's Bicycle Handlebar Fatigue Testing Equipment
Children's Bicycle Handlebar Fatigue Testing Equipment
Children's Bicycle Handlebar Fatigue Testing Equipment
Children's Bicycle Handlebar Fatigue Testing Equipment
Children's Bicycle Handlebar Fatigue Testing Equipment
Specifications
Brand Name :
Dongjun
Model Number :
DJ-ET001
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Test Object :
Children's bicycle handlebar, stem, assembly
Force Sensor Accuracy :
±0.5% F.S. (high precision)
Force Control Range :
0–5000 N adjustable
Displacement Accuracy :
±0.01 mm
Stroke Adjustment Range :
0–150 mm
Test Speed :
1–60 times/min continuously adjustable
Description

Children's bicycle handlebar fatigue testing equipment

Product use
Bicycle handlebar stem steel ring comprehensive testing machine, this testing machine is designed according to the fatigue test standards of bicycle handlebars, stems, saddles, and seatposts. It uses dual electric cylinders to apply force. After the sample is fixed, it is subjected to fatigue force of a certain frequency, load, and test number. After the test, the degree of damage to the sample is judged by checking it.
Product features
Automatic shutdown
1. After the sample breaks, the tester will stop the test immediately.
2. Automatically shut down when the set number of times is reached.

Parameters


Sensor capacity
0-2000N
Load cell resolution
1/10000
Force control accuracy
0-5%
Test speed
0-5 HZ
Force application angle
According to standard requirements
Number of tests
0-999,999 times can be set
Loading method
Servo electric cylinder
Control method
Fully computer software control
Power supply
220V
Machine base is
10MM solid steel plate
Tooling
According to different test samples (pedal, front fork vertical force, front fork disc brake, front fork horizontal force,
handlebar, saddle, seat post, crank sprocket assembly, shock absorber front fork, steel ring axial force)
Children's Bicycle Handlebar Fatigue Testing Equipment

Product Feature

Use this machine exclusively to test bike's handle by setting the specimen on test bench, then, exert the test-standard-specified load and speed on both sides to make test runs up to the set times and tester is shutdown automatically. Check the specimen¡¦s status under test. This tester is produced according to the design standards defined in ISO 4210 and DIN 79100, JBMS-1994, SNI 1049:2008.

The test is used for

Evaluating the structural strength and fatigue life of handlebars, stems, and clamps
Detecting deformation, cracks, loosening, or fracture under long-term cyclic loading
Verifying that children's bicycles meet safety standards
Quality control and certification testing.

Children's Bicycle Handlebar Fatigue Testing Equipment

Company Profile

Children's Bicycle Handlebar Fatigue Testing Equipment

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
