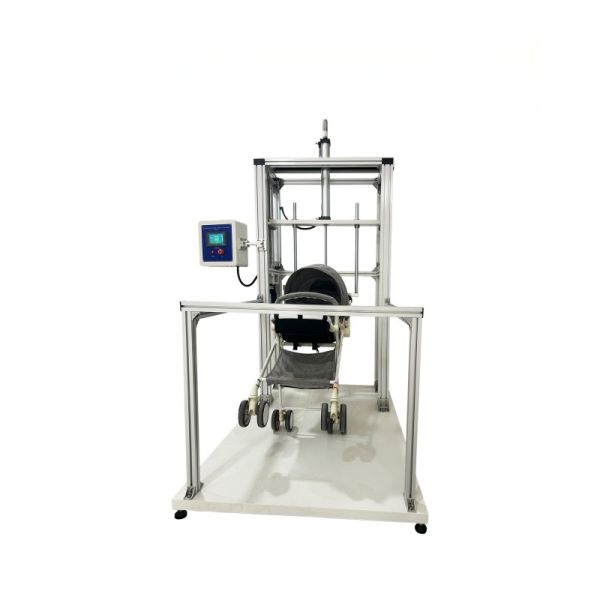

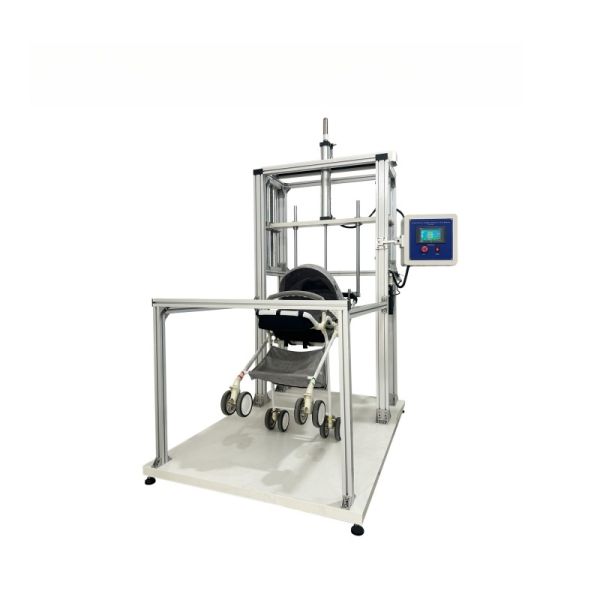

Children's Stroller Flipping Durability Tester
Children's Stroller Flipping Durability Tester
Children's Stroller Flipping Durability Tester
Children's Stroller Flipping Durability Tester
Children's Stroller Flipping Durability Tester
Children's Stroller Flipping Durability Tester
Children's Stroller Flipping Durability Tester
Children's Stroller Flipping Durability Tester
Specifications
Brand Name :
Dongjun
Model Number :
DJ-ET004
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Applicable StandardsEN :
EN 1888, ASTM F833, GB 14748
Tilt Angle Range :
0° – 100° (fixed at 100° for standard test)Angle accuracy: ±0.5°
Test Cycle Range :
0 – 999,999 times (auto stop)
Test Speed :
2–10 times/min adjustable
Power Supply :
AC 220 V / 50 Hz
WeightApprox :
220 kg
Description

Children's stroller flipping durability tester

Product use

The Children's Stroller Flipping Durability Tester is a professional testing device designed to evaluate the structural strength, locking reliability, connection fastness and overall durability of children’s strollers under repeated flipping / tilting actions. It simulates real‑use overturning, tilting and impact scenarios to verify whether the stroller frame, seat bucket, lock mechanism, hinges and connectors remain intact and safe after long‑term stress. This equipment is essential for stroller manufacturers, quality inspection institutions and laboratories to ensure compliance with global safety standards.

Parameters

Front and rear wheel lifting height 120 ± 10 mm
Experimental frequency
15 ± 2 cycles/min (frequency adjustable)
Experimental crossbeam
Automatic lifting to accommodate different sample sizes.
Maximum force sensor capacity
200 kg
Control method
PLC control, touchscreen operation.
Dimensions (LxWxH)
Approximately 200*140*180 cm
Power supply
220V, 50Hz, 150W
Weight
Approximately 140 kg.

Children's Stroller Flipping Durability Tester

Children's Stroller Flipping Durability Tester

This test is designed to simulate repeated flipping, tilting and turning actions that a children’s stroller may experience during actual use, transportation, storage and daily operation.
This test helps verify whether the stroller remains safe, intact and fully functional without cracks, deformation, loose parts or failure after long-term repeated stress, ensuring compliance with international safety requirements for children’s strollers.

Children's stroller flipping durability tester standard

his tester is designed to evaluate the locking strength and durability of detachable seat units, carrycots, and their attachment mechanisms to the stroller frame under repeated tilting/flipping loads.
GB 14748‑2006 Safety Requirements for Children’s Strollers
EN 1888‑2012 / EN 1888‑2018 Wheeled Child Conveyances – Safety Requirements and Test Methods

Children's Stroller Flipping Durability Tester

Company Profile

Children's Stroller Flipping Durability Tester

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.


How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
