Specifications
Brand Name :
Dongjun
Model Number :
DJ-ET006
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Tilt angle range :
0°–30° adjustable
Table size :
1200 × 800 mm (customizable)
Loading capacity :
0–50 kg
Control mode :
Electric lifting + PLC touch screen control
Angle accuracy :
±0.1°
Compliant standards :
EN 1888, GB 14748, ASTM F833, ISO 5819
Description

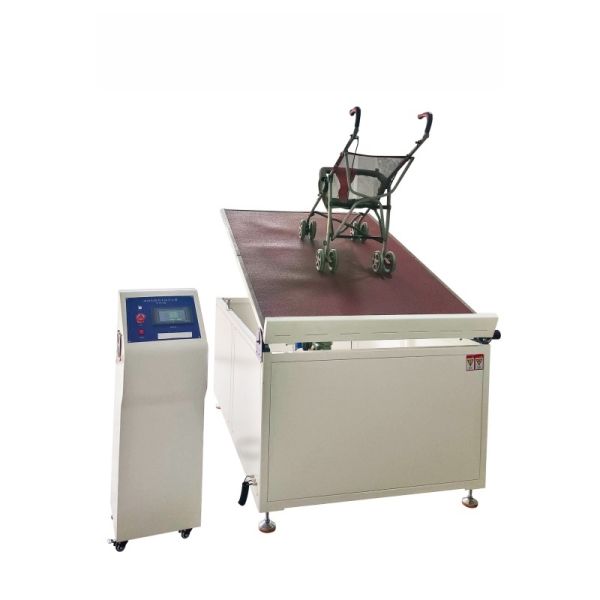

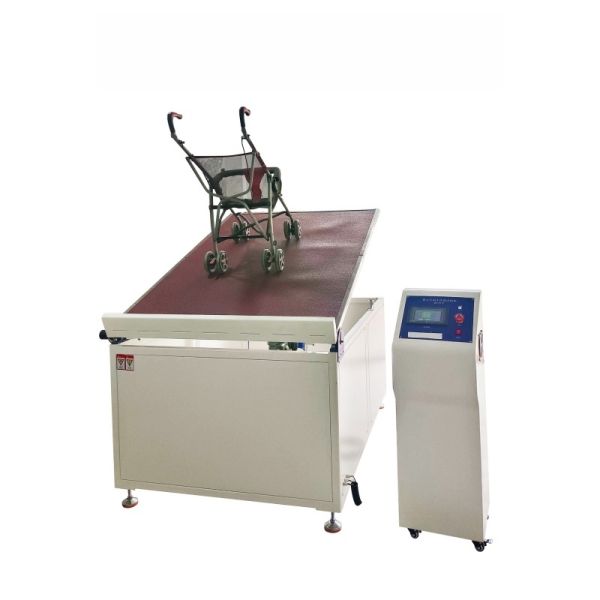

Stability testing equipment for children's vehicles

Product use
The child vehicle stability testing equipment is a set of professional testing instruments used to evaluate the anti-rollover, anti-tipping, and dynamic stability performance of products such as strollers, children's tricycles, walkers, and ride-on toys. The core is to simulate real-world usage scenarios, quantify critical stability angles and extreme working conditions, and ensure compliance with safety standards such as GB, EN, and CNS.

Parameters


Tabletop Dimensions
1.2m x 1.2m
Angle Range Adjustable from 0-30 degrees
Angle Accuracy ±0.1° within the 6° to 20° range
Sandpaper
 80 grit
Lifting Method Electric gantry lifting to ensure the rigidity of the inclined plane and precise angle.
Control Method Requires a display screen; the inclined plane automatically lifts and lowers according to the target angle.
Overall Dimensions Approximately Length: 1400mm * Width: 1200mm
Power Supply 100W, 50Hz
Weight: Approximately 100kg.

Stability Testing Equipment For Children S Vehicles

Children Products Testing Equipment for Toys Safety Testing

This series of Children Products Testing Equipment for Toys Safety Testing is a complete set of professional testing instruments designed to evaluate the safety, reliability, and compliance of toys, baby products, children’s vehicles, childcare articles, and other kids’ products.

Baby Stroller Stability Testing Platform

his Baby Stroller Stability Testing Platform is a professional testing instrument designed to determine the static and dynamic stability performance of baby strollers, prams, pushchairs, and children’s carriages. It simulates real‑use conditions such as inclined surfaces, loaded conditions, and center‑of‑gravity offset to evaluate the risk of overturning, side‑tilting, forward or backward tipping.

Stability Testing Equipment For Children S Vehicles

Company Profile

Stability Testing Equipment For Children S Vehicles

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
