Falling ball impact testing equipment
Falling ball impact testing equipment
Falling ball impact testing equipment
Falling ball impact testing equipment
Falling ball impact testing equipment
Falling ball impact testing equipment
Specifications
Brand Name :
Dongjun
Model Number :
DJ-ET003
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Impact Ball Accuracy :
±0.1g (solid steel ball, smooth surface, no burrs)
Impact Ball Specification :
Diameter 16–100mm, mass 50g–5kg (optional, customizable)
Drop Height Accuracy :
±0.1mm (adjustable range 0.3–3.0m, stepless regulation)
Impact Energy Accuracy :
±0.5% (energy range 0.147–147J, real-time calculation)
Impact Frequency :
1–10 times/min (continuously adjustable, stable release)
Positioning Accuracy :
±0.05mm (ball release position, no deviation)
Description

Falling ball impact testing equipment

Product use

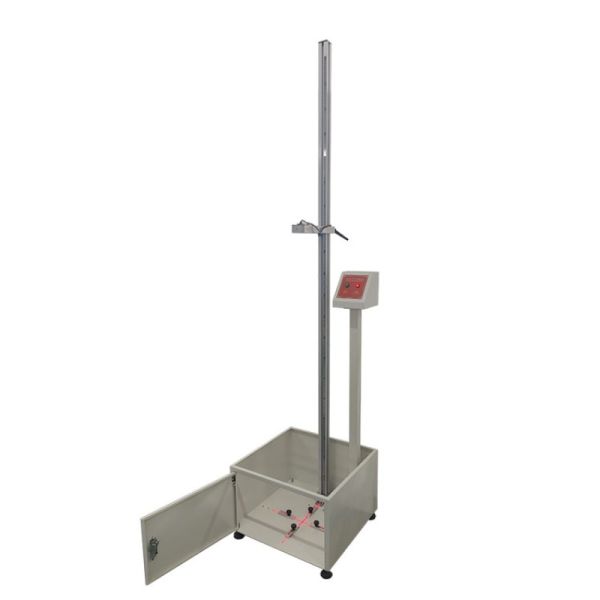

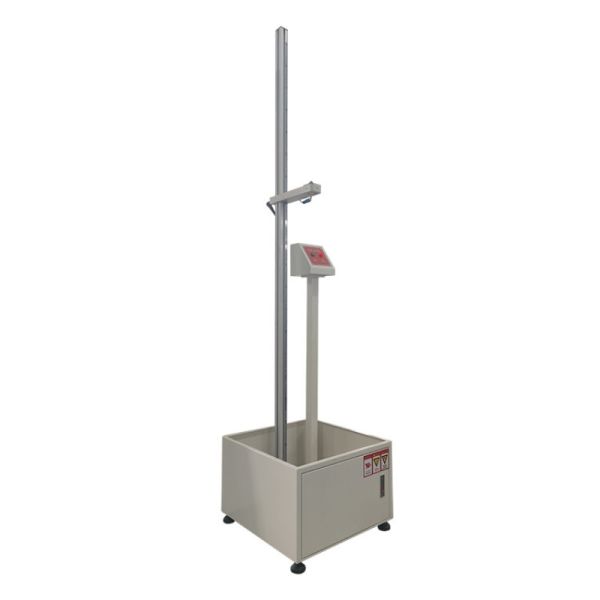

The falling ball impact tester is used to test the strength of materials such as plastics, ceramics, acrylics, glass fibers, and coatings. This equipment conforms to JIS-K6745 and A5430 testing standards. The machine uses a steel ball of a specified weight, adjusted to a certain height, which is then allowed to fall freely and impact the sample. The degree of damage is observed to determine the quality of the tested product. This equipment is highly praised by manufacturers and is considered an ideal testing instrument.

Parameters

Ball drop height 0-2000mm adjustable
Ball control method
DC electromagnetic control
Steel ball weight
55, 64, 110, 255, 535g
Power supply
220V, 50HZ, 2A
Machine dimensions
approx. 50*50*220cm
Machine weight
approx. 15kg

Falling ball impact testing equipment

Ball drop test

The Ball Drop Test is a standard reliability test used to evaluate the impact resistance, structural strength and anti-drop performance of products, components, toys, electronics and materials.
A steel ball or specified test ball of a certain weight is dropped from a pre-set height onto the sample surface under controlled conditions. After the impact, the sample is inspected for cracks, deformation, breakage, functional failure or surface damage.
This test can effectively verify product safety, durability and compliance with relevant quality standards, providing reliable data for product improvement and quality control.

Drop ball test standard

Prepare specimens according to standards and fix them in a dedicated fixture, ensuring the impact surface is horizontal and stress-free.
Calibrate the equipment: Set the steel ball mass and drop height to ensure vertical release and zero initial velocity.
Impact the specimens with the steel ball during free fall, 1–5 times per specimen (according to standards).
Post-impact inspection: Check for cracks, breakage, deformation, functional failure, coating peeling, etc.
Determine according to standards: Pass/Fail, or calculate the 50% probability of failure/critical impact energy.

Falling ball impact testing equipment

Company Profile

Falling ball impact testing equipment

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.


How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
