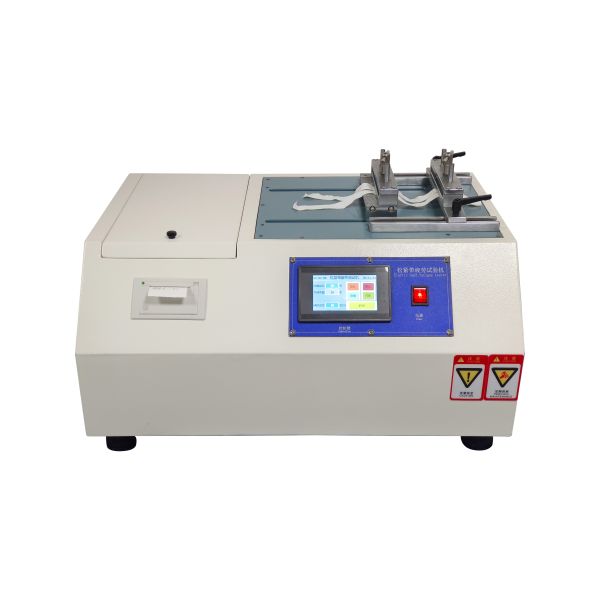

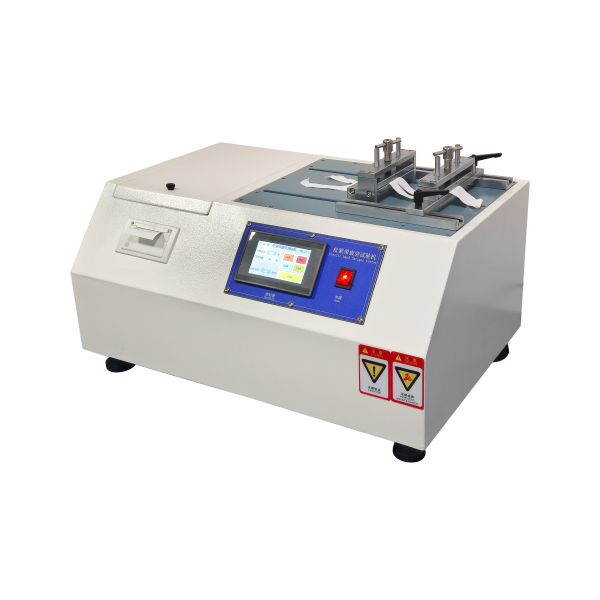

Elastic band fatigue testing machine
Elastic band fatigue testing machine
Elastic band fatigue testing machine
Elastic band fatigue testing machine
Elastic band fatigue testing machine
Elastic band fatigue testing machine
Specifications
Brand Name :
Dongjun
Model Number :
DJ-26-7
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Item :
DJ-26-7
Power Supply :
1φ AC 220V 2.5A or as per country specification
Approx. Dimensions (W×D×H) :
65 cm × 44 cm × 41 cm
Speed :
65±5 cycles/min
Moving Stroke of Moving Fixture :
0~200 mm
Fixture Width :
140 mm
Description
Elastic band fatigue testing machine
Product Overview

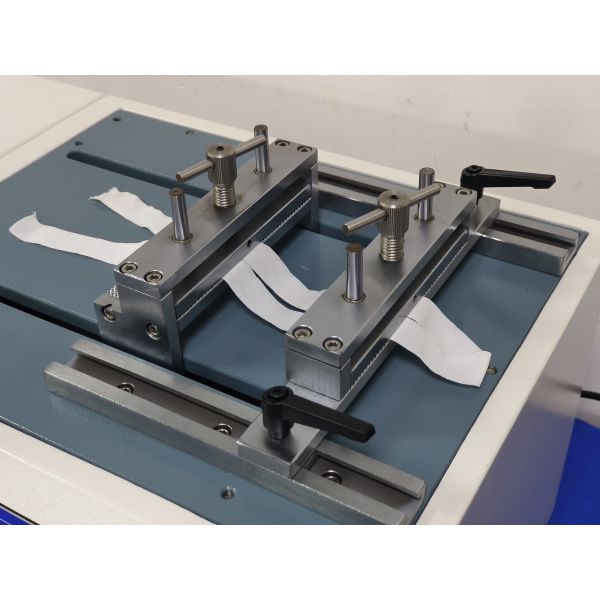

Install the elastic band test specimens on the elastic band fatigue testing machine. The fatigue testing machine drives the elastic band to perform reciprocating stretching within the stretching range of its effective elongation rate. After a certain number of tests, the fatigue resistance of the elastic band within the stretching range of its effective elongation rate is evaluated based on the severity of damage to the elastic band test specimens.
Technical Specifications
Speed 65±5 cycles/min
Moving Stroke of Moving Fixture 0~200 mm
Fixture Width 140 mm
Counter Touch Screen Display: 0~999,999
Approx. Dimensions (W×D×H) 65 cm × 44 cm × 41 cm
Power Supply 1φ AC 220V 2.5A or as per country specification

Elastic band fatigue testing machine




Operating Principle:

Use an eccentric wheel to drive and repeatedly stretch an elastic sample to its effective elongation limit. Periodically subjectively evaluate any damage incurred. Stop the test when the set number of times is reached or when the damage to the sample exceeds a predetermined level.

Purpose:
　　This machine is mainly suitable for testing the repeated stretching performance of elastic fabrics and elastic bands under maximum stretching. It can also be used to evaluate the fatigue performance of any stretchable material!
