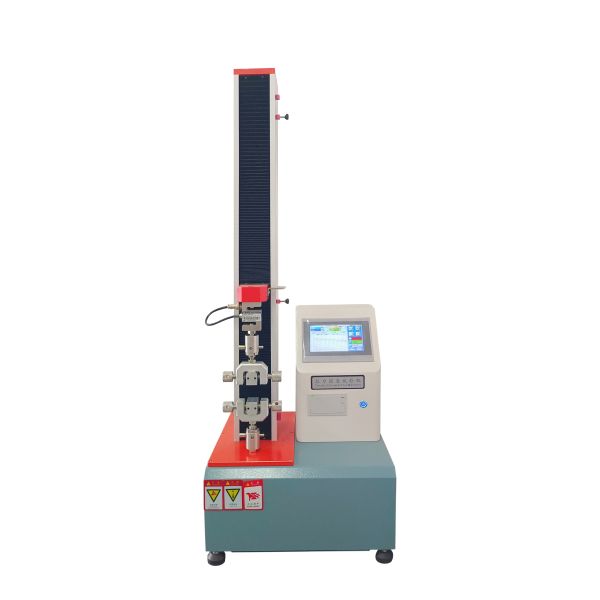

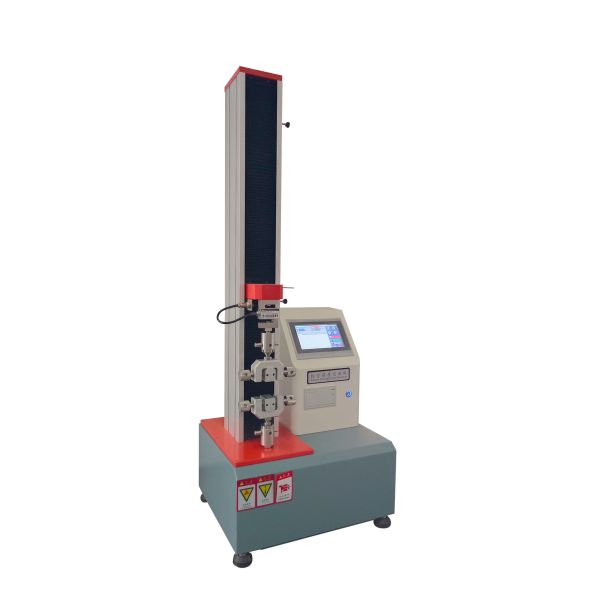

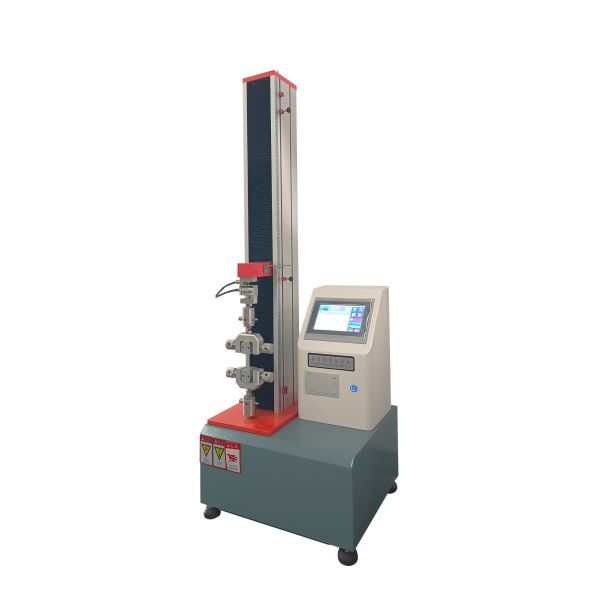

Electronic single-column touch tension testing machine
Electronic single-column touch tension testing machine
Electronic single-column touch tension testing machine
Electronic single-column touch tension testing machine
Electronic single-column touch tension testing machine
Electronic single-column touch tension testing machine
Electronic single-column touch tension testing machine
Electronic single-column touch tension testing machine
Specifications
Brand Name :
Dongjun
Model Number :
DJ-26-9
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Usage :
Universal Testing Machine,Tensile Testing Machine,Rubber Tensile Tester,Process Testing Machine
Weight :
75kg
Product name :
Electronic single-column touch tension testing machine
Power supply :
AC220V, 50/60Hz, 10A or as specified
Description

Electronic single-column touch tension testing machine

Product use

This machine is a newly designed and developed microcomputer-controlled tension (compression) testing machine by our company. Our company has completely overcome the shortcomings of traditional material testing machines, such as being bulky, having complex operations, and single performance. The structure adopts aluminum extrusion type sealing plates with high-grade baking paint treatment, built-in high-precision, low-resistance, Taiwan TBI ball screws and guide columns; the measurement and control system has high data acquisition and calculation speed, and the product has stable and reliable performance, high measurement accuracy, and simple and easy operation.

Parameters

Load capacity

10, 20, 50, 100, 200kg optional (Transcell USA)

Monitor

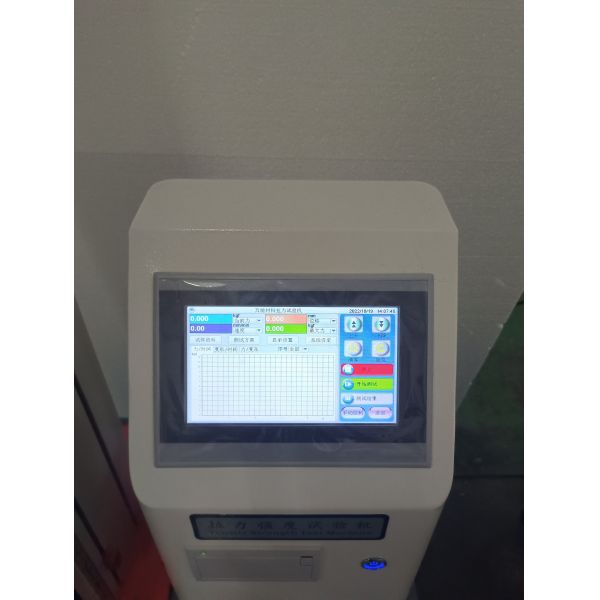

Touch screen display

Force measurement accuracy

Better than ±1.0%

Force measurement resolution

1/10,000
Effective force measurement range 1~100%F.S
Displacement resolution 0.001mm
Displacement indication accuracy Better than ±1.0%
Test speed range 100–500 mm/min, which can be adjusted arbitrarily
Test maximum stroke Maximum 600mm, excluding fixtures
Switching of force units

kgf, gf, N, kN, Ibf
Switching of stress units MPa, kPa, kgf/cm², Ibf/in²
Machine dimensions 50×45×130cm (W×D×H)
Machine weight 75kg
Power Taiwan Yutian AC Inverter Motor
Power Supply AC220V, 50/60Hz, 10A or as specified

Applications:

This machine is suitable for industries such as rubber and plastic, paper products, color printing and packaging, adhesive tapes, luggage and handbags, textiles, pharmaceuticals, daily chemicals, food, wires and electronics. It can test the physical properties of various materials, finished products and semi-finished products. By selecting various different fixtures, it can perform tests such as tensile, compressive, tensile holding, compressive holding, bending, tearing, peeling, adhesion, and shear tests.

Electronic single-column touch tension testing machine

Cable & Wire

Electronic single-column touch tension testing machine

Metallic Material

Electronic single-column touch tension testing machine

Plastic Pipe

Electronic single-column touch tension testing machine

Packing Material



Machine features:
★ The machine is equipped with a thermal printer, which can automatically output test results;
★ Arbitrary unit switching: Force: kN/N/kgf/gf/t/lbf

★ Automatic homing function;
★ Overload protection function can be set;
★ Various testing methods such as fixed load and fixed displacement.


Electronic single-column touch tension testing machine Electronic single-column touch tension testing machine Electronic single-column touch tension testing machine




Company Profile

Electronic single-column touch tension testing machine

PACKING AND TRANSPORTATION

Electronic single-column touch tension testing machine

Electronic single-column touch tension testing machine

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
