PLC Controlled Office Chair Armrest Durability Testing Machine with 550mm ~ 950mm Height Adjustment and 10 to 30 Times/Min Test Rate
PLC Controlled Office Chair Armrest Durability Testing Machine with 550mm ~ 950mm Height Adjustment and 10 to 30 Times/Min Test Rate
PLC Controlled Office Chair Armrest Durability Testing Machine with 550mm ~ 950mm Height Adjustment and 10 to 30 Times/Min Test Rate
PLC Controlled Office Chair Armrest Durability Testing Machine with 550mm ~ 950mm Height Adjustment and 10 to 30 Times/Min Test Rate
PLC Controlled Office Chair Armrest Durability Testing Machine with 550mm ~ 950mm Height Adjustment and 10 to 30 Times/Min Test Rate
PLC Controlled Office Chair Armrest Durability Testing Machine with 550mm ~ 950mm Height Adjustment and 10 to 30 Times/Min Test Rate
PLC Controlled Office Chair Armrest Durability Testing Machine with 550mm ~ 950mm Height Adjustment and 10 to 30 Times/Min Test Rate
PLC Controlled Office Chair Armrest Durability Testing Machine with 550mm ~ 950mm Height Adjustment and 10 to 30 Times/Min Test Rate
Specifications
Brand Name :
Dongjun
Model Number :
DJ-DZ-201
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Item :
DJ-DZ-202
Test rate :
10 to 30 times / min
Armrest height adjustment range :
550mm ~ 950mm
Power :
one phase, AC 220V, 50Hz
Description

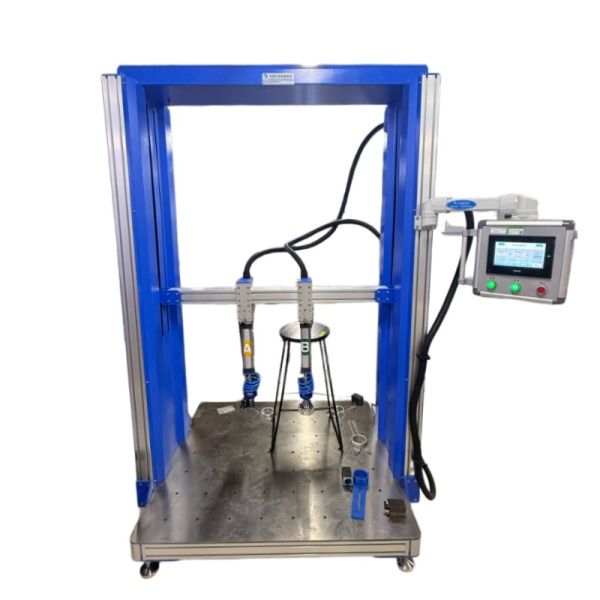

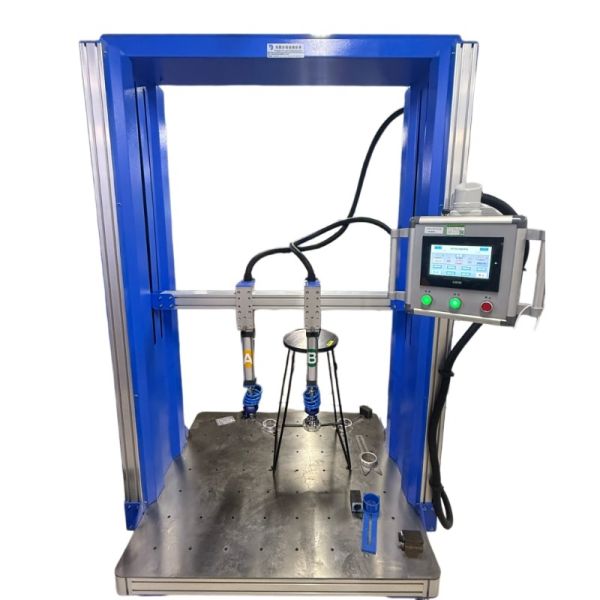

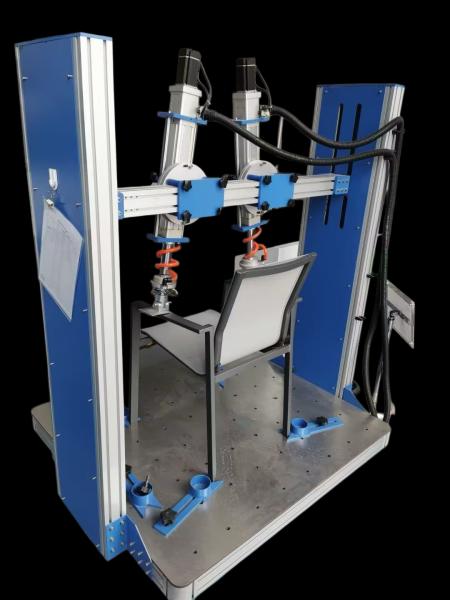

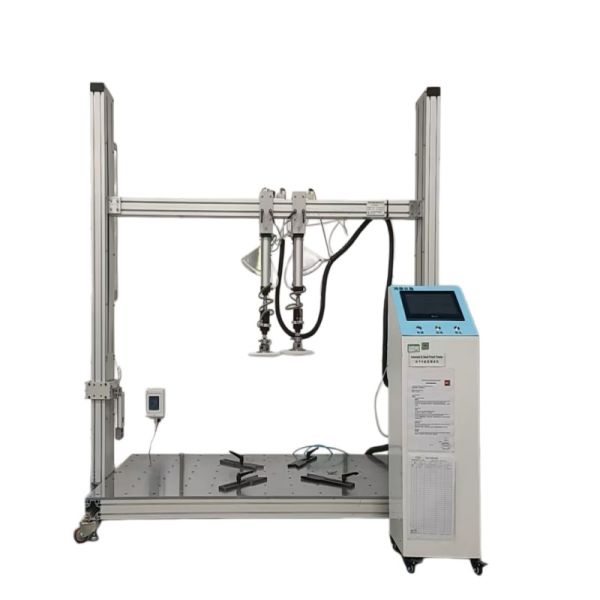

Office Chair Armrest Durability Testing Machine
Product Overview
This Office Chair Armrest Durability Testing Machine is specially designed to perform repeated pressure, alternating force and long-term durability tests on the armrests of office chairs, executive chairs, swivel chairs and gaming chairs.
It simulates the actual pressure, pressing and lifting actions that armrests undergo during daily use, to test the fatigue life, structural strength, connection firmness and overall stability of armrest components.
Equipped with high-precision loading device, adjustable test speed, times and pressure, it ensures stable and consistent test data. The machine automatically counts, runs continuously and stops when the sample is damaged, providing reliable data for product quality control, safety verification and compliance with furniture test standards.
Technical Specifications
Control Mode PLC Control
Place of Origin Guangdong, China (Mainland)
Dimension (W×D×H) 188×103×230 cm
Power One Phase, AC 220V, 50Hz
Armrest Height Adjustment Range 550mm ~ 950mm
Usage Chair Arm Tester
Product Name Office Chair Arm Durability Test Machine
Supply Ability 30 Sets per Month
PLC Controlled Office Chair Armrest Durability Testing Machine with 550mm ~ 950mm Height Adjustment and 10 to 30 Times/Min Test Rate
Testing Equipment Features
The machine is designed to evaluate the ability of the chair to withstand stresses that occur as a result of repetitive loading that can be imposed on the armrest structure. Loading of this type is the result of using the armrests as a support when getting into or out of the chair.
Chair Strength & Durability Testing
The office chair impact test is a standardized reliability test used to evaluate the structural strength, impact resistance, stability, and safety of office chairs, swivel chairs, executive chairs, and work chairs.
PLC Controlled Office Chair Armrest Durability Testing Machine with 550mm ~ 950mm Height Adjustment and 10 to 30 Times/Min Test Rate
PLC Controlled Office Chair Armrest Durability Testing Machine with 550mm ~ 950mm Height Adjustment and 10 to 30 Times/Min Test Rate
BIFMA X 5.1 Clause 18 (Front Load Test/Side Load Test)
  • Functional Load Test/Proof Load Test: A force of 334 N (75 lbf.) shall be applied once to each front leg individually for one (1) minute. Remove the force.
  • Proof Load Test: Similar with functional load test, but the force is 503 N (113 lbf).
BIFMA X 5.1 Clause 13 (Arm Strength Test - Vertical - Static)
  • Functional Load: A force of 750 N (169 lbf.) shall be applied for one (1) minute. Remove the force.
  • Proof Load: A force of 1125 N (253 lbf.) shall be applied for one (1) minute.
PLC Controlled Office Chair Armrest Durability Testing Machine with 550mm ~ 950mm Height Adjustment and 10 to 30 Times/Min Test Rate
Company Profile
PLC Controlled Office Chair Armrest Durability Testing Machine with 550mm ~ 950mm Height Adjustment and 10 to 30 Times/Min Test Rate
PACKING AND TRANSPORTATION
PLC Controlled Office Chair Armrest Durability Testing Machine with 550mm ~ 950mm Height Adjustment and 10 to 30 Times/Min Test Rate
PLC Controlled Office Chair Armrest Durability Testing Machine with 550mm ~ 950mm Height Adjustment and 10 to 30 Times/Min Test Rate
Frequently Asked Questions
1. Who are we?
Our company is located in Dongguan, China, and was established in 2021. Our products are sold to the global market.
2. How do we guarantee product quality?
  • We always provide pre-production samples before mass production
  • We always conduct final inspection before shipment
3. Why should you choose us over other suppliers?
Our mission is to provide one-stop sourcing and a pleasant shopping experience. We care about your lab and, more importantly, your shopping experience. You can contact us anytime; we are available 24/7.
4. What services can we provide?
Acceptable delivery terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express, DAF, DES
Acceptable payment currencies: USD, EUR, CAD, AUD, HKD, GBP, CNY, CHF
Accepted payment methods: Wire transfer (T/T), Letter of Credit (L/C), Documents against Payment (D/P), Documents against Acceptance (D/A), MoneyGram, Credit Card, PayPal, Western Union, Cash, Third-party payment platforms
