Specifications
Brand Name :
Dongjun
Model Number :
DJ-26-45
Certification :
ISO9001,CE,
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Max capacity :
200kg
Plane plate :
Holes diameter 6mm, space 20mm
Indentor diameter :
250mm ±1mm
Speed :
70 ±5 times per minute
Sample size :
380mm ±20mm x 50mm ±2mm
Dimension :
760×780×1350mm
Description

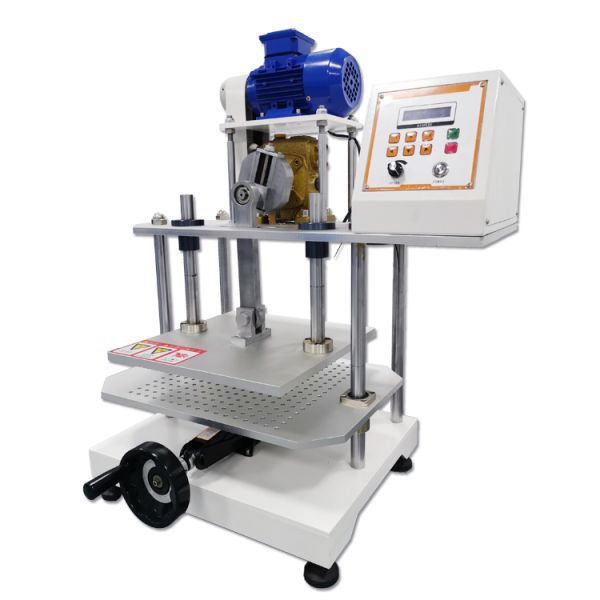

Sponge Repeated Compression Fatigue Testing Machine
Product use

The sponge repeated compression fatigue testing machine is specially designed to test the fatigue resistance, compression deformation and service life of sponges, foams, cushions and other flexible porous materials. Equipped with a stably operated motor drive and precise control system, the equipment can perform continuous cyclic compression on test samples according to preset pressure, stroke, frequency and test times, simulating the long-term actual service state and stress conditions of materials. It can automatically record the compression cycles, thickness changes and fatigue performance parameters of samples, and will stop automatically when reaching the set values or in case of abnormal conditions. Featuring stable operation, high precision and simple operation, the equipment provides reliable test data for material selection, product research and development as well as quality inspection. It is widely applied in material laboratories, furniture manufacturing, packaging industry and quality inspection institutions to ensure the durability and service stability of products.

Parameters
Max capacity200kg
Plane plateHoles diameter 6mm, space 20mm
IndentorHaving an overall diameter of 250 mm± 1 mm with a 25 mm± 1 mm radius at its lower edge, provided with a device for applying a maximum force of 750 N ± 20 N during one loading cycle.
Speed(70 ± 5) times per minute.(adjustable)
Sample sizeTest pieces shall be right parallelepipeds having sides of length 380 mm± 20 mm and a thickness of 50 mm± 2 mm.
Counter6 digits cycle counter for test cycle setting
DisplayLCD touch screen
Additional functionAdjust the test position during testing to compensate the force automatically
Dimension760×780×1350mm
PowerAC220V±10%, 50/60Hz, single phase

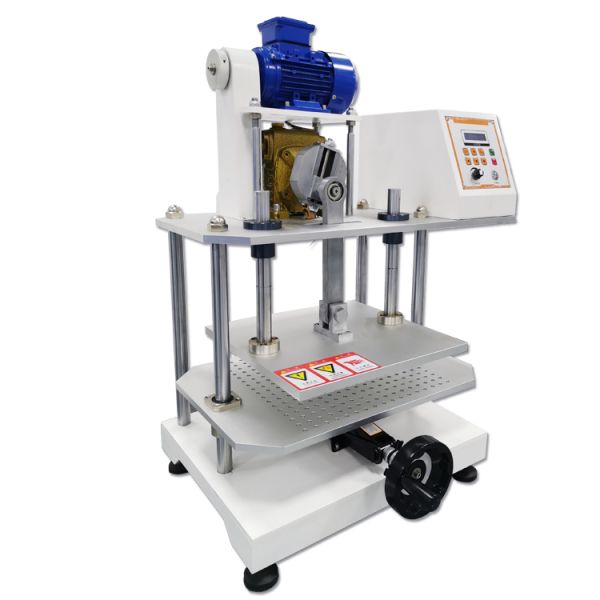

Sponge Repeated Compression Fatigue Testing Machine

What is the working principle of the sponge repeated compression fatigue testing machine?

The equipment performs cyclic loading on materials according to the set compression thickness, frequency and cycle times, subjecting the materials to repeated extrusion and deformation to accelerate fatigue, collapse or permanent deformation. The machine is equipped with automatic counting, timing and limit protection functions, and will stop automatically when the set cycle times are reached or an abnormality occurs.

By testing the changes in thickness, hardness, resilience and permanent deformation rate of materials before and after compression, the fatigue resistance, service life and durability of sponges can be determined, providing data support for material testing and quality control.

What are the application fields of the sponge repeated compression fatigue testing machine?

The sponge repeated compression fatigue testing machine is mainly used to test the compression fatigue resistance, permanent deformation and service life of flexible porous materials such as sponges, foams, seat cushions, mattresses and sofa cushions. It is widely applied in the following fields: furniture, automobile, shoe material and medical industries.

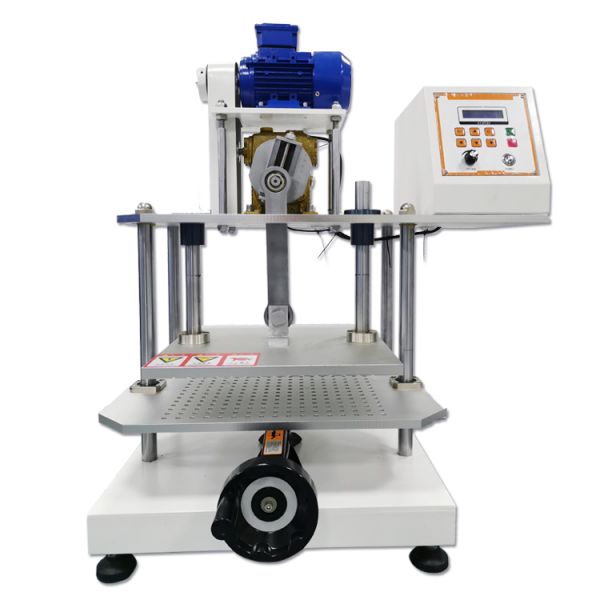

Sponge Repeated Compression Fatigue Testing Machine

Company Profile
Sponge Repeated Compression Fatigue Testing Machine
PACKING AND TRANSPORTATION
Sponge Repeated Compression Fatigue Testing Machine
Sponge Repeated Compression Fatigue Testing Machine
