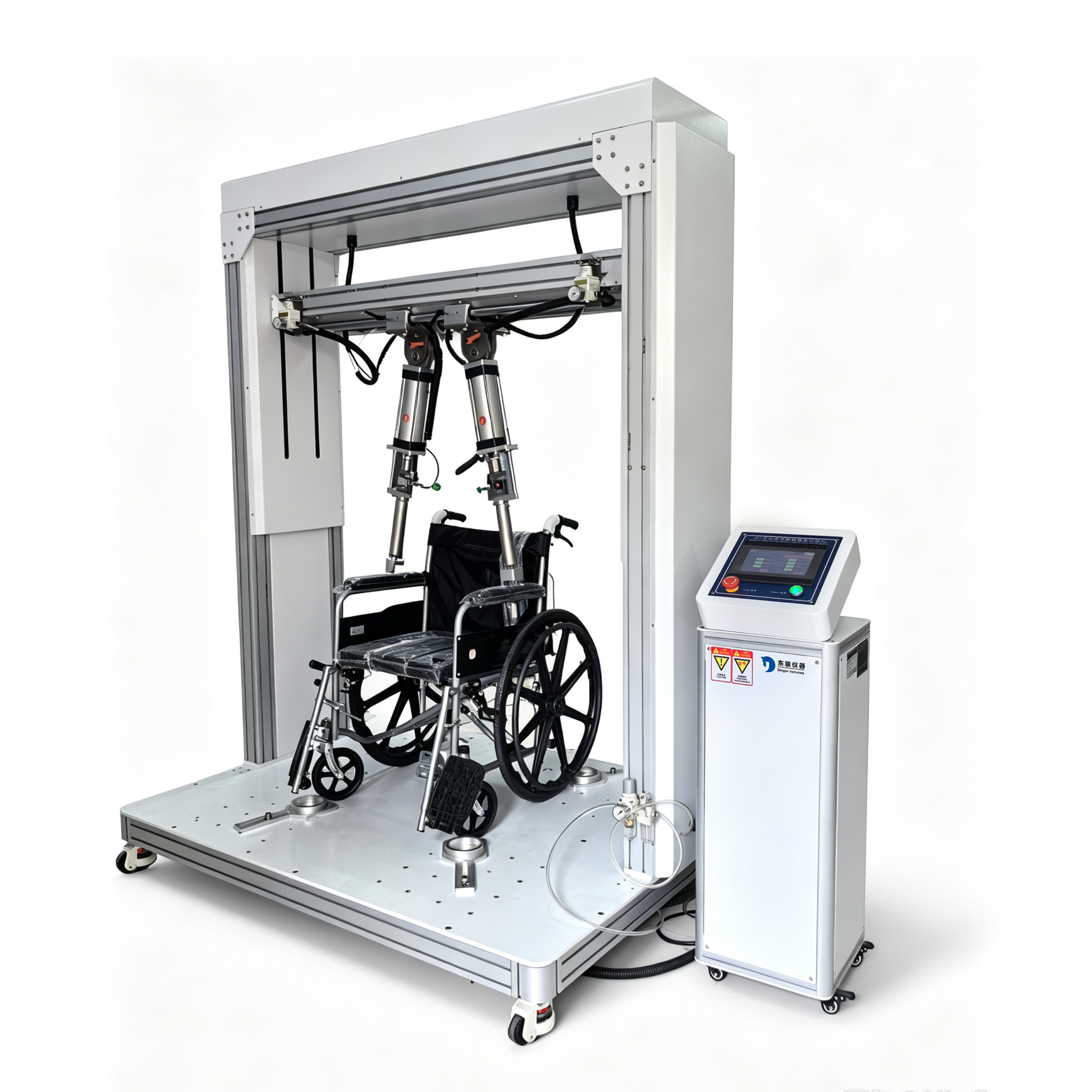

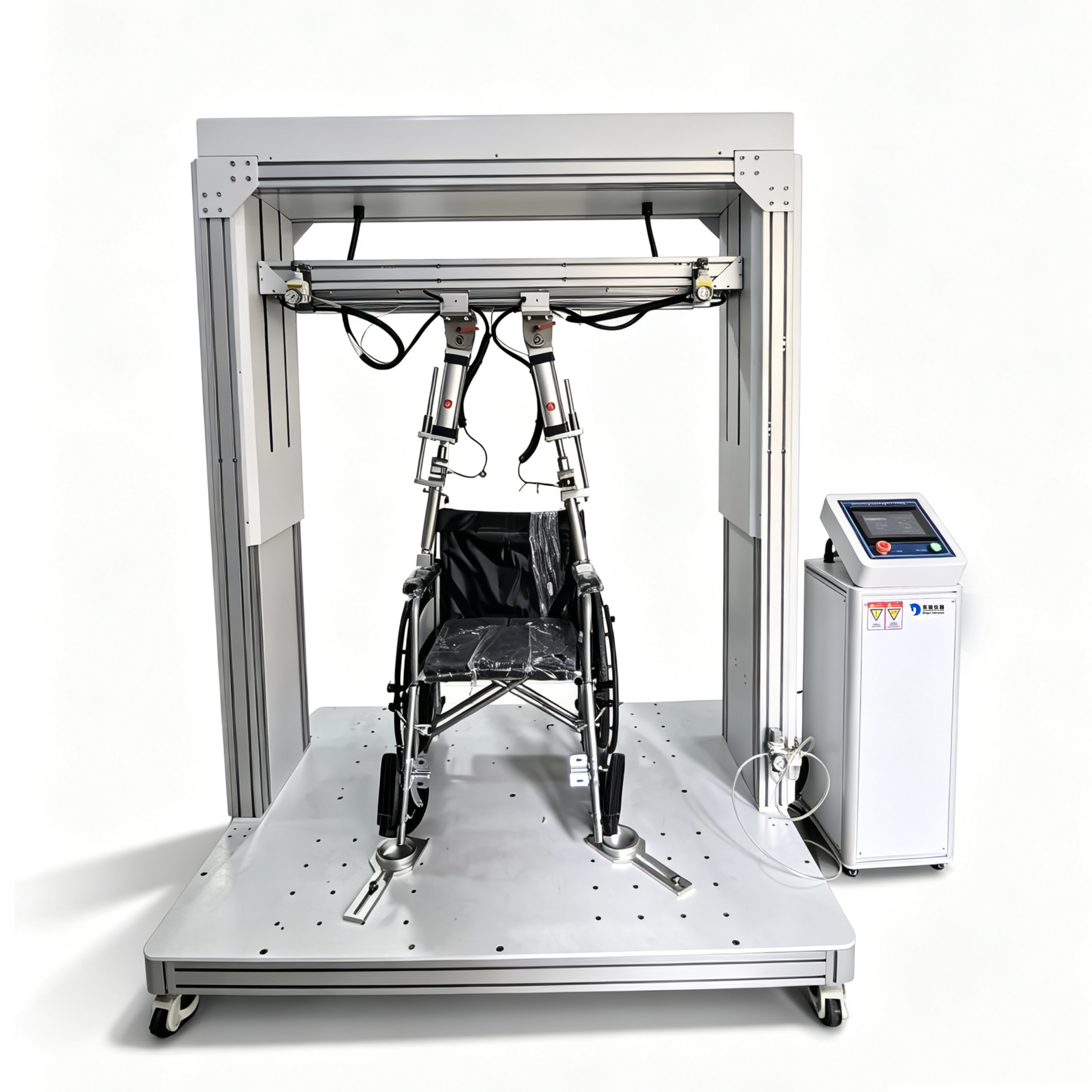

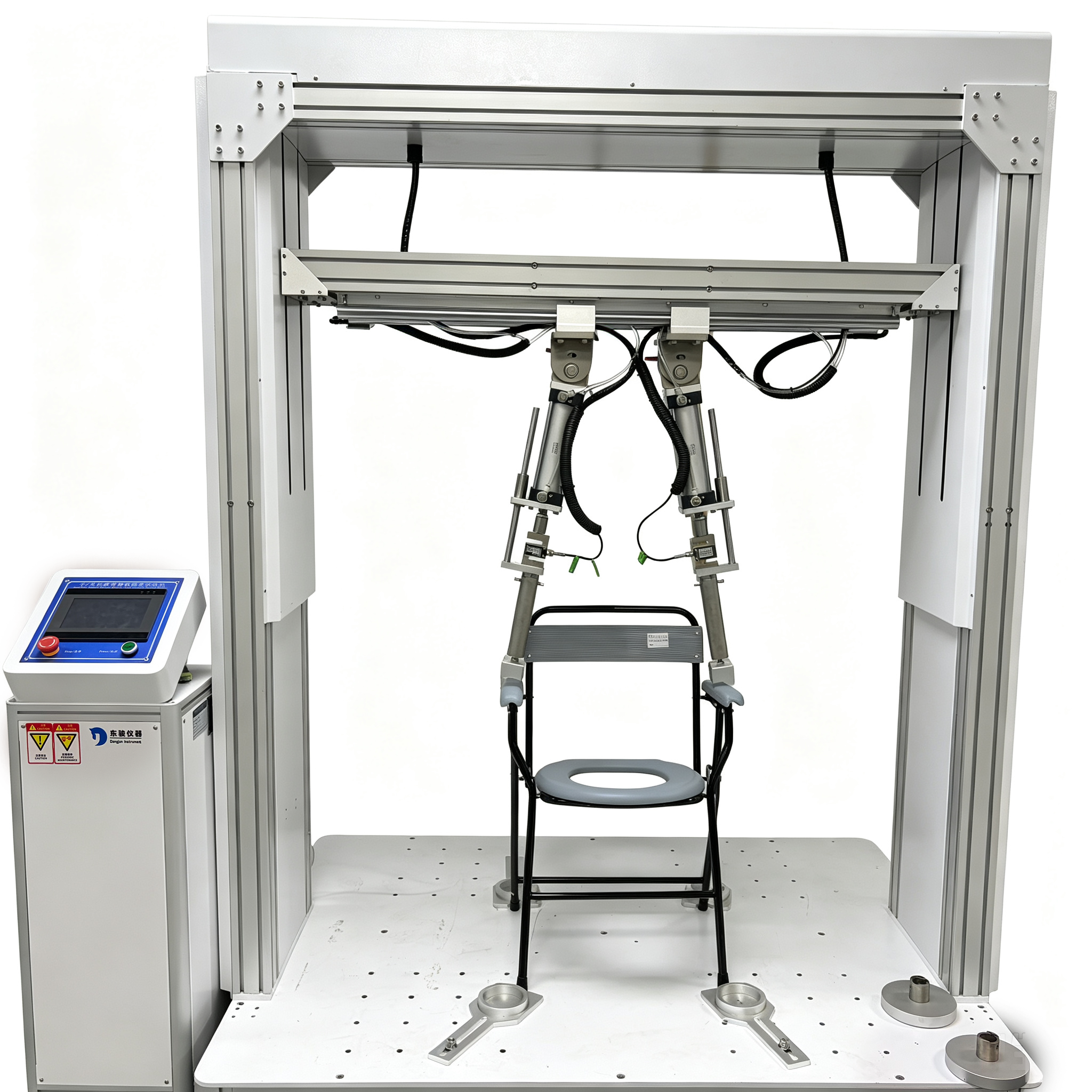

Toilet Stool Armrest Static Pressure Durability Tester
Toilet Stool Armrest Static Pressure Durability Tester
Toilet Stool Armrest Static Pressure Durability Tester
Toilet Stool Armrest Static Pressure Durability Tester
Toilet Stool Armrest Static Pressure Durability Tester
Toilet Stool Armrest Static Pressure Durability Tester
Specifications
Certification :
ISO9001，CE，
Force Measurement Accuracy :
±1%FS
Model Number :
DJ-55
Loading Stroke :
0-200mm adjustable
Price :
Negotiable
Machine Dimension :
1200×2700×2150mm
Supply Ability :
500pcs
MOQ :
1
Delivery Time :
15-25Work days
Power Supply :
AC 220V
Payment Terms :
T/T
Brand Name :
Dongjun
Loading Capacity :
0-2000N (200kgf)
Packaging Details :
Wooden crate packaging
Place of Origin :
Dongguan, China
Timing / Counting :
0-99999 cycles; holding time 0-999min
Description

Toilet Stool Armrest Static Pressure Durability Tester

Product Overview

This machine is specially designed for static pressure and cyclic durability tests on the armrests of commode stools, bath chairs and shower chairs. It simulates the force conditions of users' arm support, applies vertical static pressure and cyclic fatigue loads to the left and right armrests, and checks whether deformation, cracking, loosening or fracture occur in the armrest frames, welds and connecting components. It is applicable to the R&D, incoming material inspection and finished‑product delivery inspection of assistive commode chairs and bath chairs for the elderly and the disabled.

Parameters

Item Specification
Control System PLC + Touch screen; force value, holding time and cycle times are configurable
Loading Capacity Vertical load: 0‑2000N (200kgf); left and right armrests support independent / synchronous loading
Loading Stroke 0‑200mm adjustable, compatible with different armrest heights
Force Measurement Accuracy ±1%FS, equipped with high‑precision force sensor
Timing / Counting Automatic counting: 0‑99999 cycles; holding time adjustable from 0‑999min
Driving Mode Sensor‑based pneumatic loading
Fixture Adjustable, suitable for armrests of various sizes and shapes (round / square / flat)
Main Machine Frame Assembled with 80*80mm high‑quality aluminum profiles

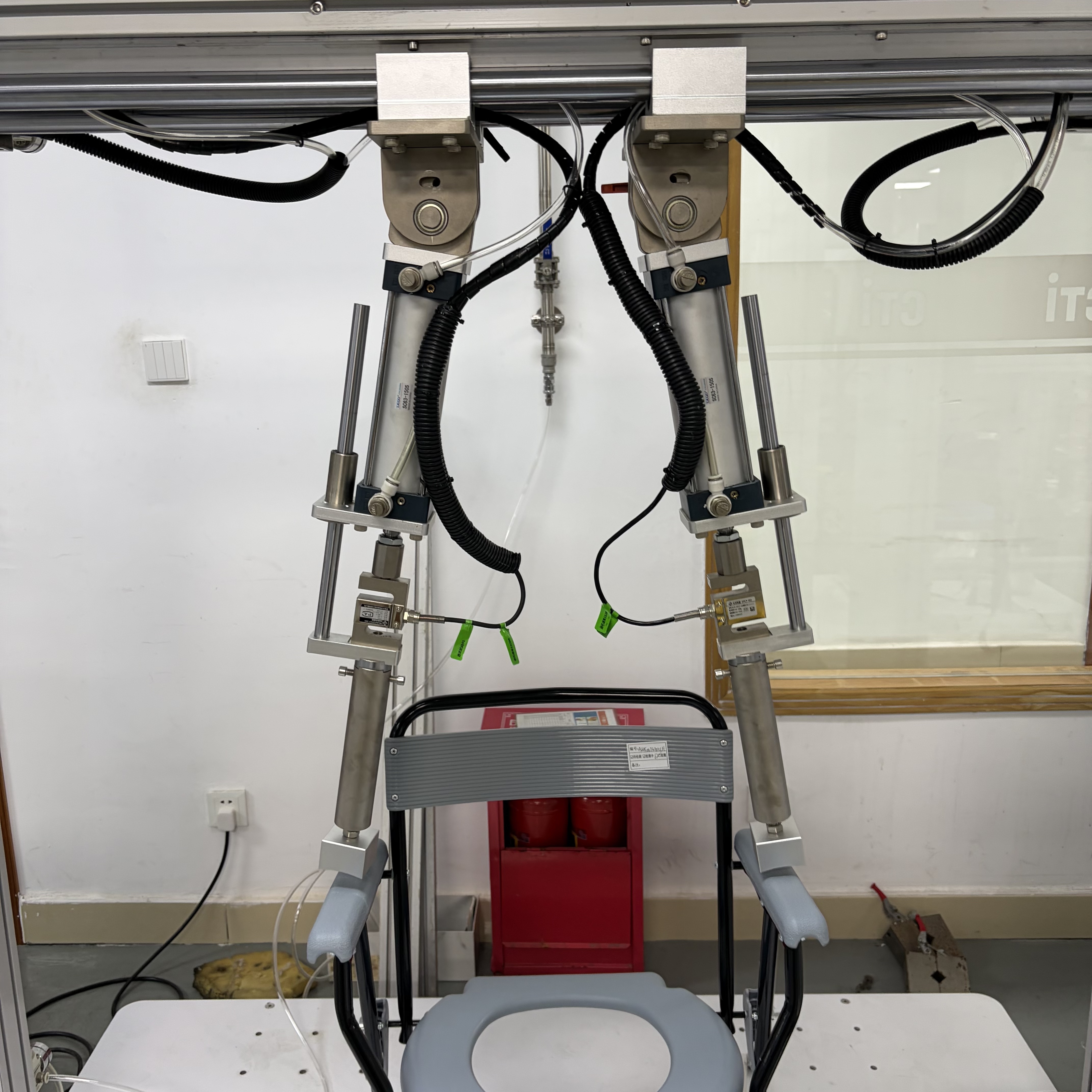

Vertical Loading Mechanism Pneumatic cylinder drives the loading head for vertical pressing
Armrest Fixture Left‑right adjustable for quick fixation of commode stools to prevent slipping

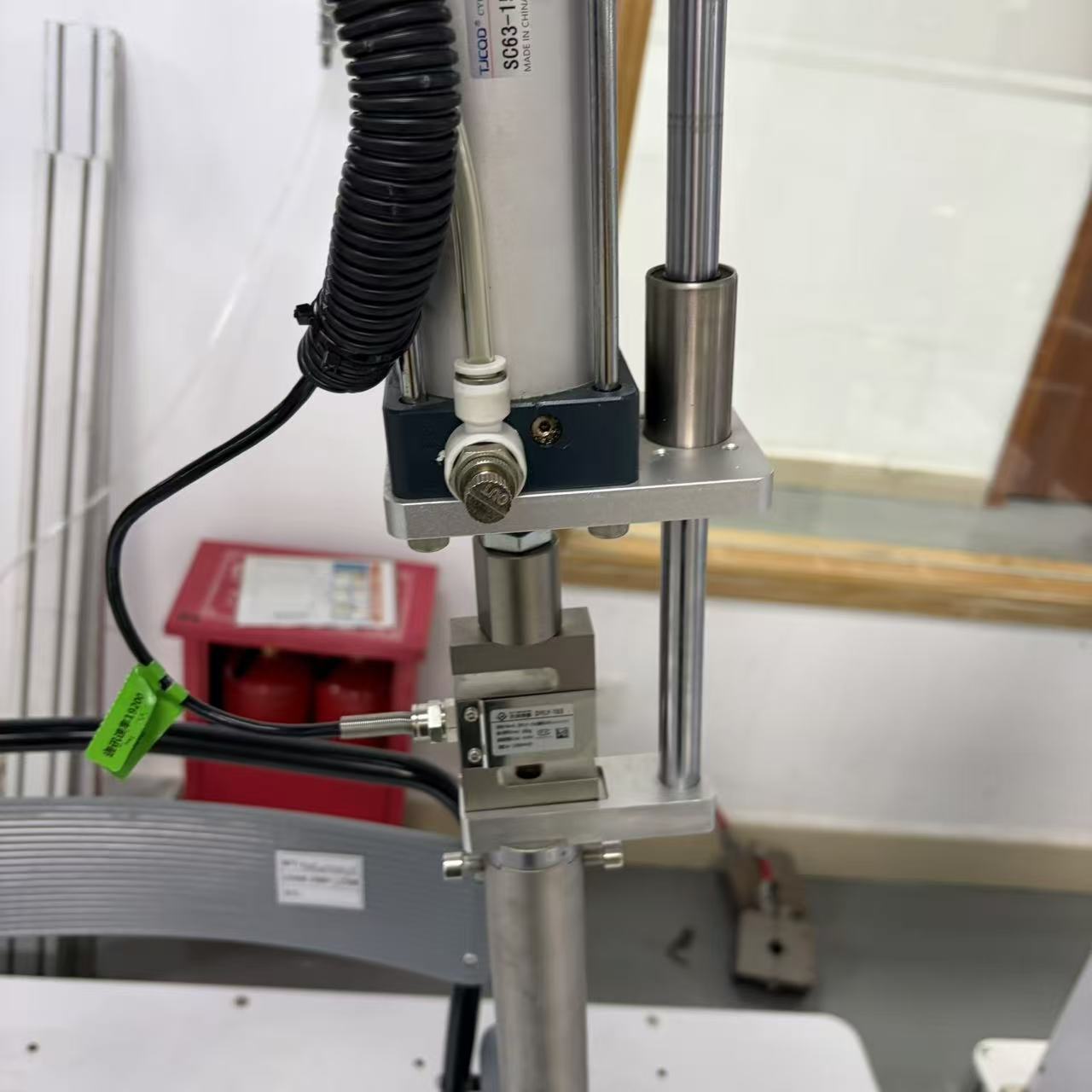

Force Sensor Real‑time loading force monitoring with feedback to control system

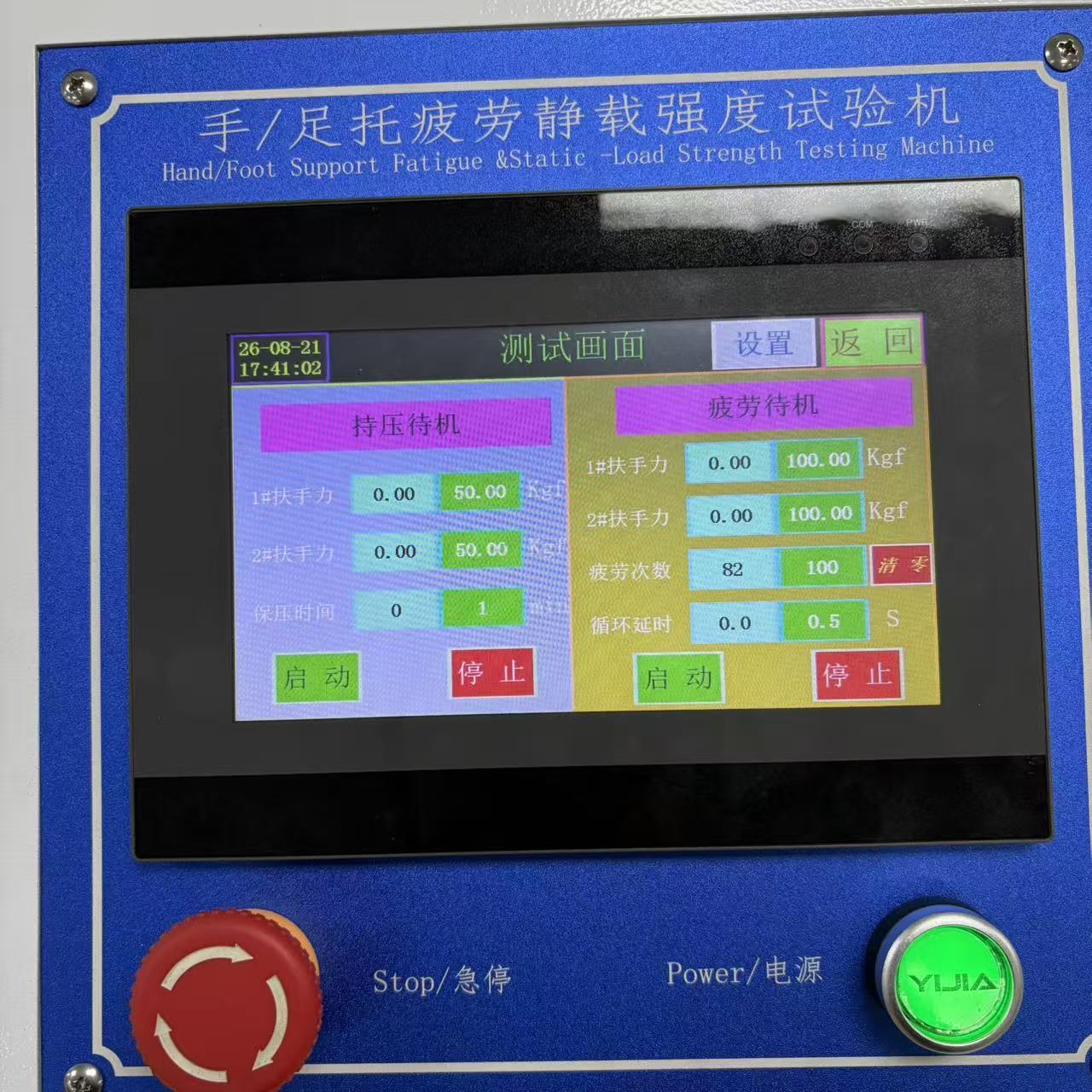

PLC Touch‑screen Control Box Parameter setting, data recording, curve display and fault alarm
Power Supply AC 220V
Machine Dimension 1200×2700×2150mm

Main Test Items:

  1. Armrest Vertical Static Pressure Test:Apply specified static load on armrest, hold for setting time, check permanent deformation, crack and loose fittings.
  2. Armrest Cyclic Durability Test:Repetitive cyclic vertical load on armrest, simulate long‑term repeated supporting force, assess fatigue life of armrest assembly.
  3. Dual‑arm Synchronous / Independent Loading:Left and right armrest can be loaded simultaneously or separately.
  4. Over‑range Protection & Auto‑stop:Machine auto‑stop upon reaching preset cycles or abnormal force alarm.

Toilet Stool Armrest Static Pressure Durability Tester

l

Toilet Stool Armrest Static Pressure Durability Tester

Toilet Stool Armrest Static Pressure Durability Tester

Core Test Standard (GB/T 24434‑2025)

Handrail Static‑Load Strength (Vertical Downward)
1. Loading Force: 1500N (approx. 150kgf)
2. Loading Angle: 15°
3. Stroke: 700±10mm
4. Holding Time: 30min
5. Judgment Criteria: No cracks, no fractures, no loosening, deformation ≤3mm.


Handrail Static‑Pressure Durability (Cyclic Loading)
1. Loading Force: 1000N (approx. 100kgf)
2. Frequency: 10‑30 cycles per minute


Equipment Purpose

  1. Static load and cyclic durability tests specially designed for toilet stool/toilet chair armrests simulate the force‑bearing scenarios where the elderly or people with limited mobility push themselves up and repeatedly apply force for support. The tests evaluate the strength, stiffness and anti‑fatigue life of the armrests as well as their connections to the frame, and fully comply with Clause 7.6.2 of GB/T 24434‑2025 and the armrest test requirements specified in GB/T 10357.3‑2025.

    Toilet Stool Armrest Static Pressure Durability Tester

    Toilet Stool Armrest Static Pressure Durability Tester

Company Profile

Toilet Stool Armrest Static Pressure Durability Tester

PACKING AND TRANSPORTATION

Toilet Stool Armrest Static Pressure Durability TesterToilet Stool Armrest Static Pressure Durability Tester

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
