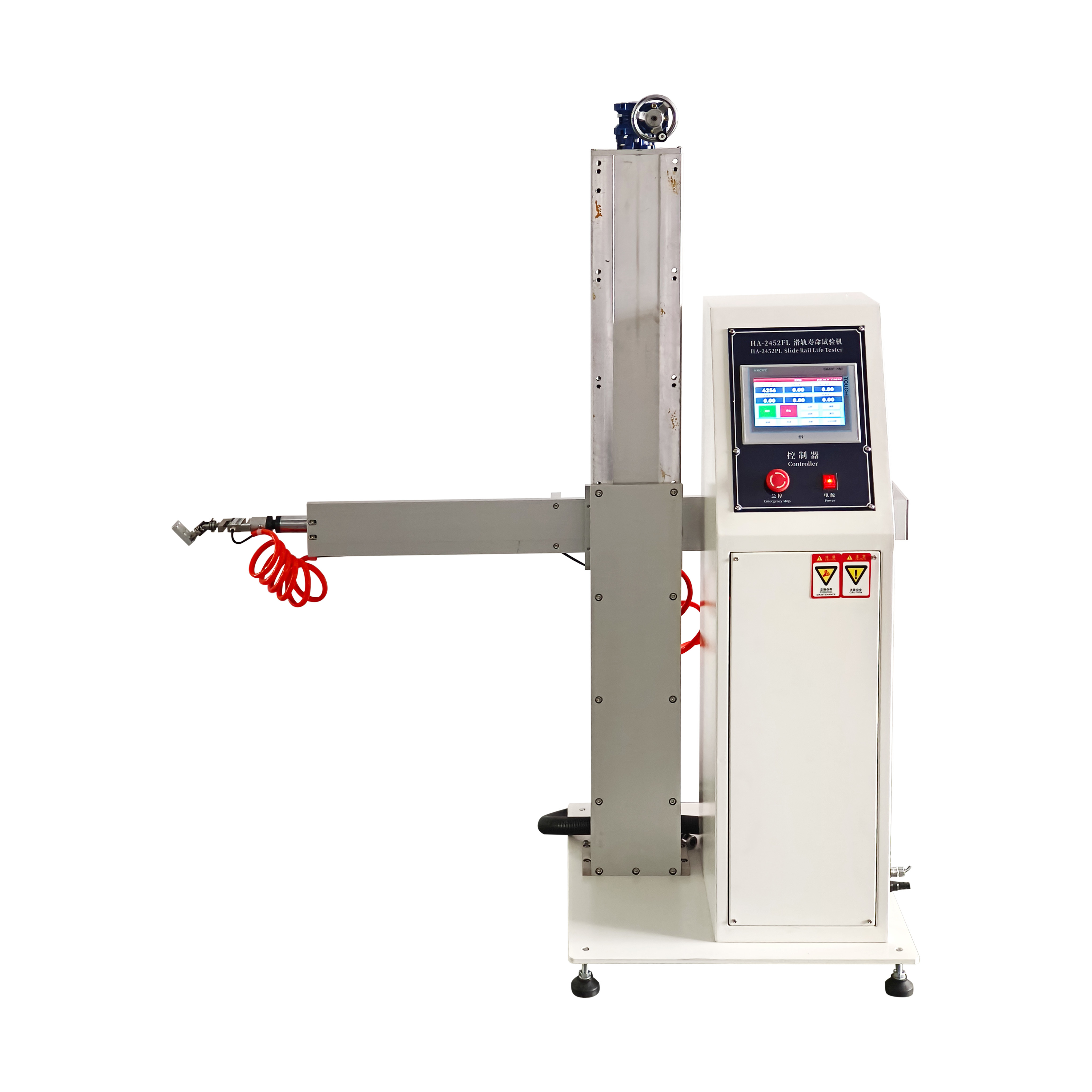

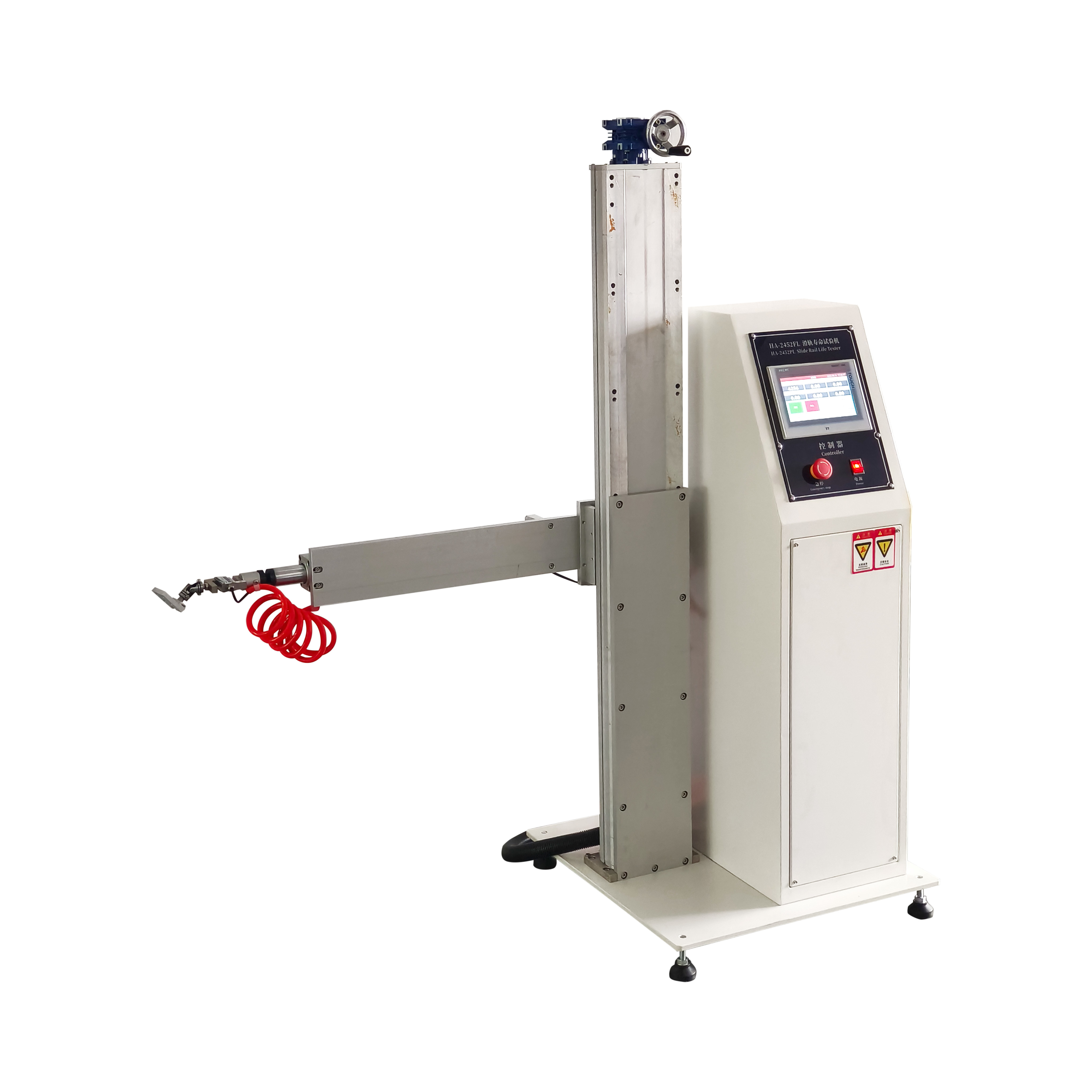

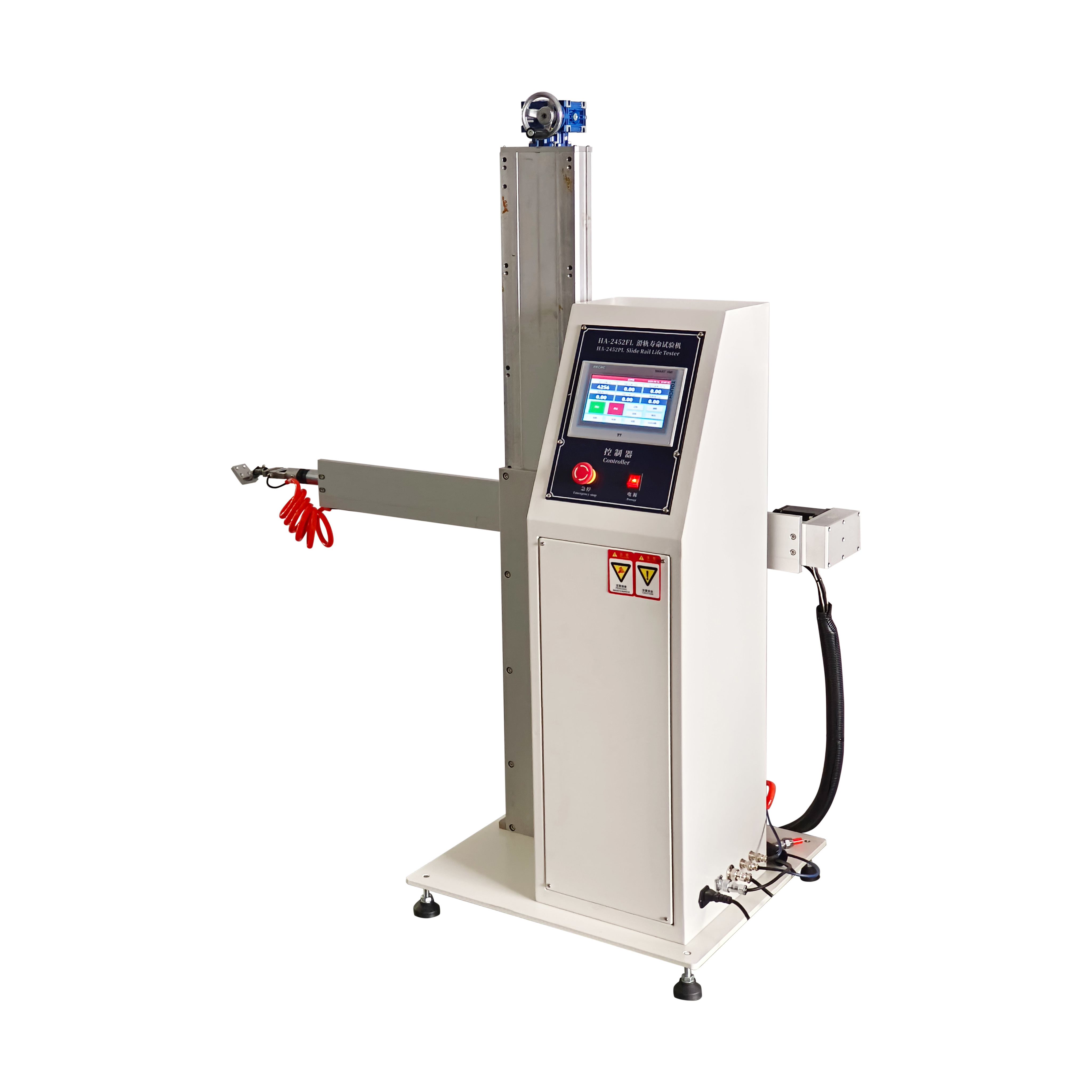

Drawer Slide Reciprocating Testing Machine
Drawer Slide Reciprocating Testing Machine
Drawer Slide Reciprocating Testing Machine
Drawer Slide Reciprocating Testing Machine
Drawer Slide Reciprocating Testing Machine
Drawer Slide Reciprocating Testing Machine
Specifications
Model Number :
DJ-56
Loading force :
0-200 N
Supply Ability :
500pcs
MOQ :
1
Delivery Time :
15-25Work days
Time error :
0.1 s
Payment Terms :
T/T
Price :
Negotiable
Power supply :
AC 220V, 50HZ
Certification :
ISO9001，CE，
Speed :
5-30 mm/s
Place of Origin :
Dongguan, China
Travel error :
≤±0.25 m
Brand Name :
Dongjun
Drawer size :
100-500 mm adjustable
Packaging Details :
Wooden crate packaging
Description

Drawer Slide Reciprocating Testing Machine

Product Overview

This machine is suitable for testing the durability of drawer slides installed on furniture. It can also set force values for destructive tests and measure the push‑pull force of drawers.
Standards: This tester is manufactured in accordance with the relevant requirements specified in

QB/T 2454 and GB/T 10357.5 standards.

Parameters

ItemSpecification
Drawer size100‑500 mm adjustable
Loading force0‑200 N
Speed5‑30 mm/s
Absolute error of measured travel≤±0.25 m
Absolute error of measuring time0.1 s
Overall dimension(L×W×H)600×500×1320 mm
Power supplyAC 220V, 50HZ

Main Functional Features of the Equipment:

  1. Complete action procedures of pull‑out‑push‑in‑buffer waiting‑pause can be set, suitable for self‑priming damping and rebound slide rail tests.

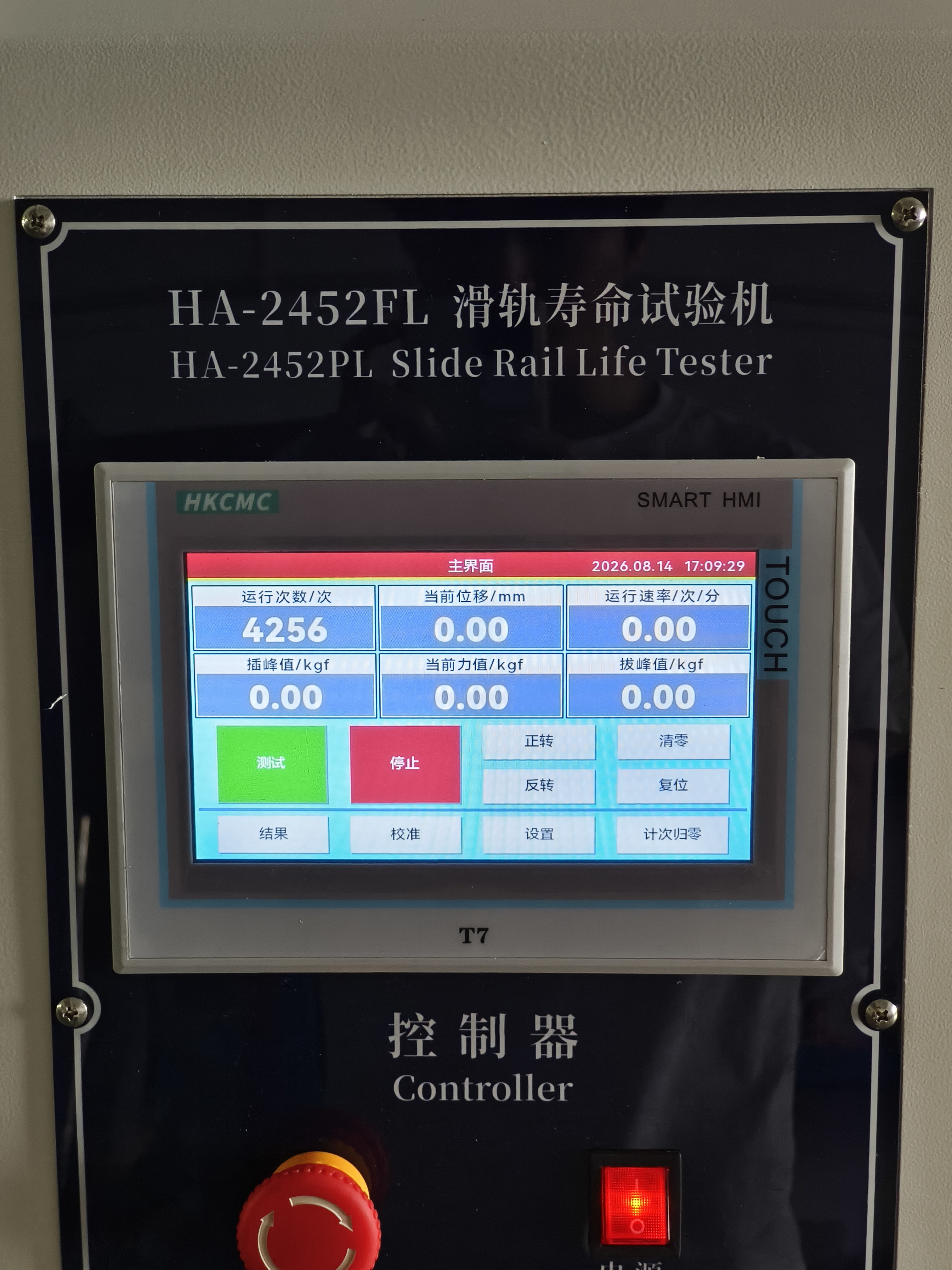

  2. Travel, speed, cycle times and dwell time at both ends are all set via touch screen for easy operation.

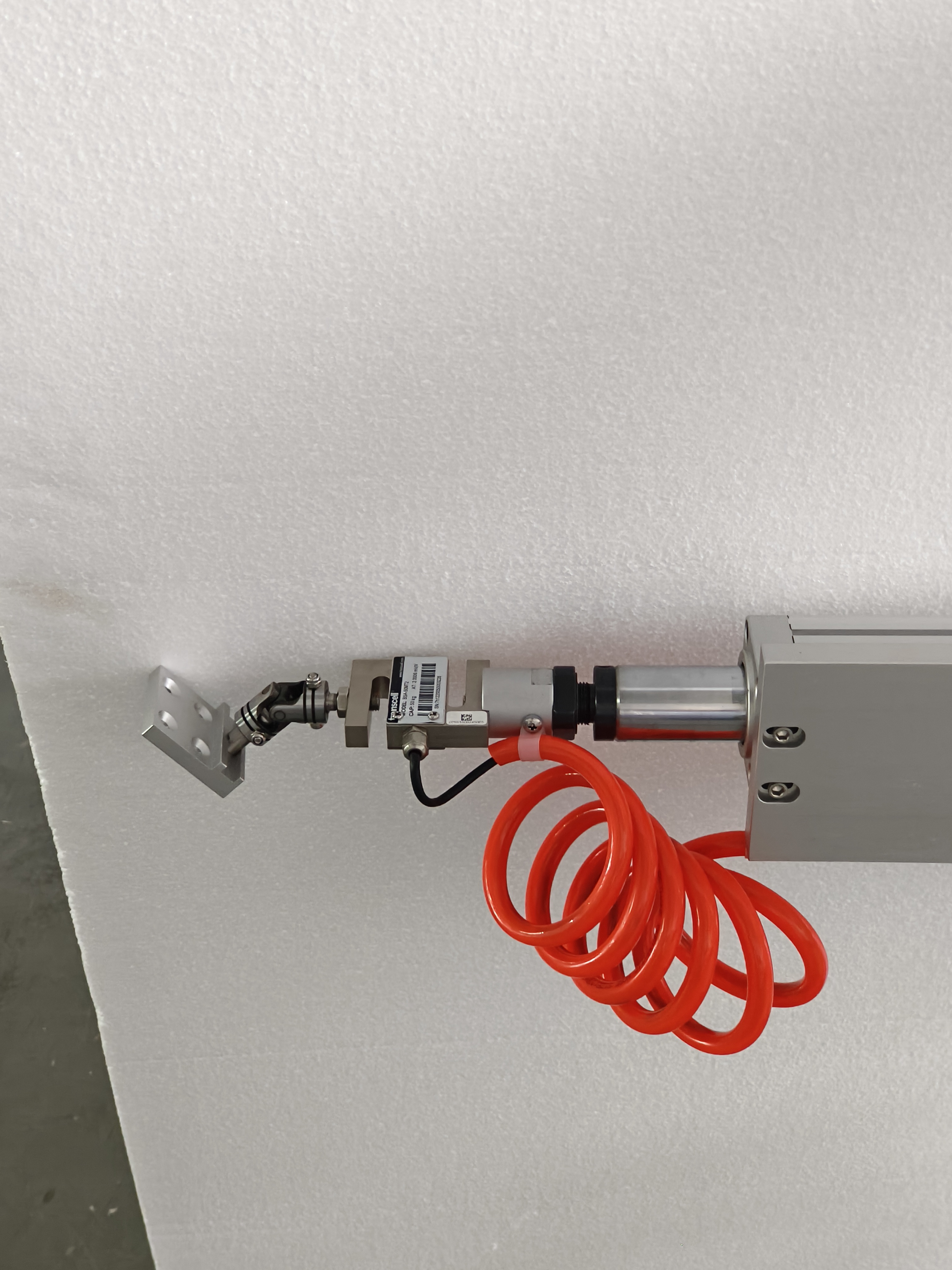

  3. Fast clamping without complicated tooling; standard drawer simulators can be assembled directly.
  4. Long‑term unattended operation; automatic alarm and shutdown upon fault. Test data is saved after power‑off, and test can resume after restart.
  5. For multi‑station models, each station supports independent counting and parameter setting, enabling simultaneous testing of different samples.
  6. Principle:
    Durability Test: Apply a specified load inside the drawer, then repeatedly pull out and close the drawer. After a set number of cycles, check whether the slide rails still meet the usage requirements.

Drawer Slide Reciprocating Testing Machine


l

Drawer Slide Reciprocating Testing Machine







Company Profile

Drawer Slide Reciprocating Testing Machine

PACKING AND TRANSPORTATION

Drawer Slide Reciprocating Testing MachineDrawer Slide Reciprocating Testing Machine

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
